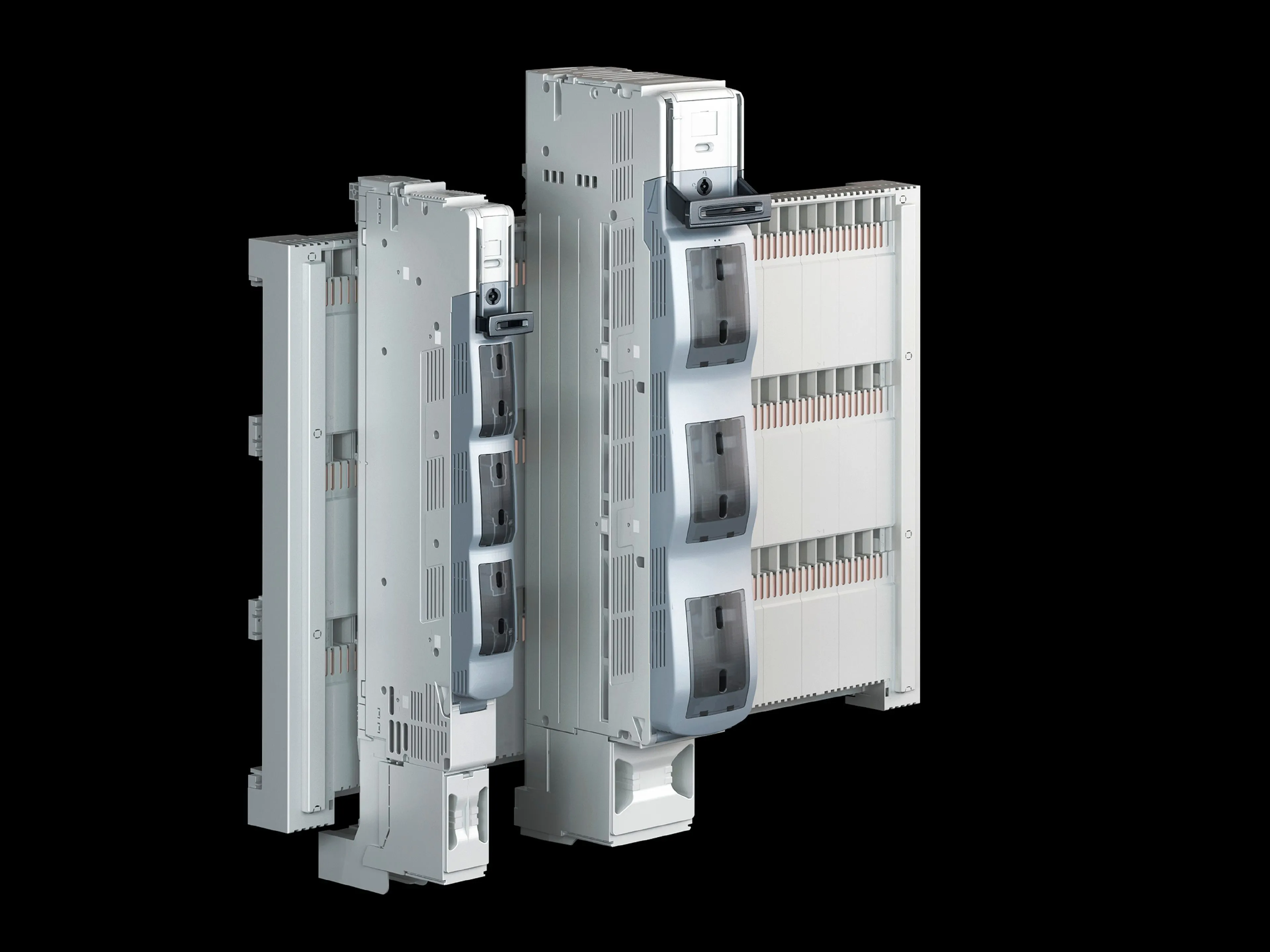

Rittal SV 9677.065 Slimline Switch Disconnector - 3-Pole
Part Number: 9677065
Manufacturer
Rittal
Part number
9677065
Category
Alt Part Number
SV 9677.065
Quick Summary
Rittal SV 9677.065 is a slimline 3-pole switch disconnector designed for fast, reliable isolation in power distribution cabinets. Engineers often struggle with space constraints while maintaining dependable disconnection under load; this module delivers a compact footprint without compromising contact reliability. The device is built to IEC/DIN EN 60947-3 standards and uses UL 94-V0 rated materials to enhance fire safety in enclosures. It is rated for up to 160 A at 690 V and fits NH size 00 busbar systems with 185 mm centre-to-centre spacing, with bottom cable routing and screw M8 connections. This combination reduces wiring complexity and supports converter installations, improving installation efficiency and long-term maintenance.
Product Information
Extended Description
9677065 Rittal: SV NH slimline switch disconnector, size 00, 160 A, 690 V, 3-pole, screw M8, 185 mm, cable outet bottom, screw attachment
Article number
SV 9677.065
Design
3-pole, switchable
Function principle
Automatic quick-break contact allows operator-independent switching
Material
Polyamide | Fire protection corresponding to UL 94-V0 | Contact tracks: Partially silver-plated hard copper
Colour
Chassis: RAL 7035 | Cover: RAL 7001 | Handle: RAL 7016
For NH size
00
For bar systems with centre-to-centre spacing
185 mm
Cable outlet
Bottom
Type of electrical connection
Screw M8
Installation type
Screw attachment
Number of poles
3-pole
Rated operating voltage
690 V, 3~
Rated operating current max.
160 A
Test specification
IEC/DIN EN 60 947-3
For converter installation
Yes
Dimensions
Width: 50 mm | Height: 676 mm
Connection for round conductor
1.5 ‐ 95 mm²
To fit busbars
Height: 10 mm
Packs of
1 pc(s).
Weight/pack
5.12 kg
Copper weight (kg per piece)
0.959
Customs tariff number
85369095
EAN
4028177806696
ETIM 9
EC001040
ECLASS 8.0
27371401
Product description
SV NH slimline switch disconnector, size 00, 160 A, 690 V, 3-pole, screw M8, 185 mm, cable outet bottom, screw attachment
Feature → 3-pole, 160 A, 690 V rating enables robust, all-pole isolation under load, delivering improved equipment protection and uptime for automated lines. Business Impact → Higher reliability reduces unplanned downtime and extends motor life; Application → Ideal for control panels and power distribution blocks in manufacturing environments. Feature → Bottom cable outlet paired with screw M8 terminals simplifies wiring and reinforces secure connections. Business Impact → Quick, clean installations cut wiring time and maintenance costs; Application → suits compact cabinets and vibration-prone areas. Feature → Fire-safe UL 94-V0 polyamide housing with partially silver-plated copper contact tracks. Business Impact → Enhanced insulation, reduced wear, and stable conduction over time; Application → Required in safety-conscious industrial enclosures. Feature → NH00 compatibility with 185 mm busbar spacing. Business Impact → Streamlined retrofits and scalable panel design; Application → Common in machine builders and automation plants. Feature → For converter installations with automatic quick-break contact. Business Impact → Safer inverter isolation and smoother drive commissioning; Application → Drives, motors, and drives in process automation.
Get a Quick Quote for a Rittal 9677065
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9677065?
Enquire Now
FAQs
Install the SV 9677.065 on NH00 busbars by aligning the poles with the 185 mm centre-to-centre spacing, then securing the unit with the built-in screw attachment. Use the M8 screw connections for a solid electrical and mechanical joint, and wire the bottom cable outlet with conductors in the 1.5–95 mm² range. Confirm polarity and tighten to manufacturer torque specifications.
SV 9677.065 is tested to IEC/DIN EN 60947-3 and uses UL 94‑V0 rated polyamide housing with silver-plated copper contact tracks. The 3-pole, 160 A at 690 V construction supports safe isolation in control gear, with bottom cable outlet and M8 terminals, helping with regulatory compliance and durable performance in industrial cabinets.
Yes. The part is explicitly specified for converter installations, featuring a quick-break, 3-pole design that supports reliable isolation of inverter circuits. The 185 mm centre-to-centre spacing and bottom cable outlet facilitate neat wiring in panels housing power electronics, while the 160 A rating sustains peak loads typical of drives and motor control.
Mounting uses screw attachment with M8 terminals for secure hardware fit, and the bottom cable outlet supports convenient routing of 1.5–95 mm² conductors. The unit is designed for NH size 00 bar systems with 185 mm spacing, and its 50 mm width and 676 mm height fit compact enclosures while maintaining easy access for maintenance.
The SV 9677.065 delivers reliable, fast isolation that reduces downtime, improves personnel safety, and simplifies wiring in automation panels. Its compact slimline form saves cabinet depth, while UL 94‑V0 materials and robust copper contacts boost durability and lower maintenance costs, contributing to a lower total cost of ownership in power management and distribution.
