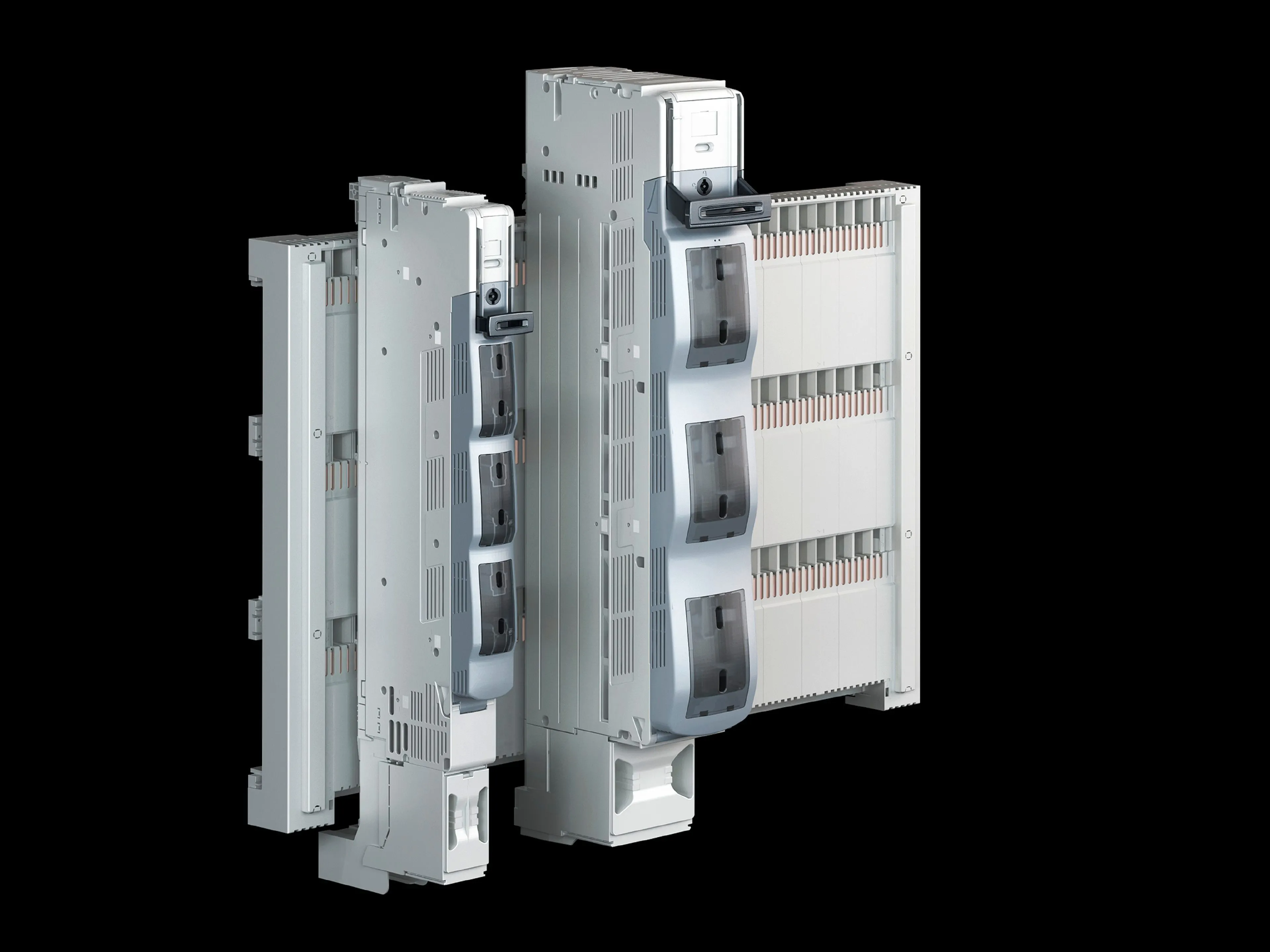

Rittal SV 9677.080 Slimline Switch Disconnector -3-pole 160A
Part Number: 9677080
Manufacturer
Rittal
Part number
9677080
Category
Alt Part Number
SV 9677.080
Quick Summary
The Rittal SV 9677.080 slimline switch disconnector enables safe, automatic disconnection in 3‑phase power systems. In compact control panels, cramped layouts and uncertain fault isolation challenge safety and uptime. It features UL 94‑V0 fire protection material and complies with IEC/DIN EN 60 947‑3, supporting NH size 00. Designed for 185 mm centre-to-centre spacing on bar systems, it delivers consistent performance in panel builds, delivering reliability in challenging environments. These characteristics reduce wiring complexity and enable faster installation, improving reliability and total cost of ownership for industrial automation projects. It supports 160 A rated current and a bottom cable outlet, matching common switchgear architectures and easing future maintenance.
Product Information
Extended Description
9677080 Rittal: SV NH slimline switch disconnector, size 00, 160 A, 400 V, 3-pole, screw M8, 185 mm, cable outet bottom, clamping attachment
Article number
SV 9677.080
Design
3-pole, switchable
Function principle
Automatic quick-break contact allows operator-independent switching
Material
Polyamide | Fire protection corresponding to UL 94-V0 | Contact tracks: Partially silver-plated hard copper
Colour
Chassis: RAL 7035 | Cover: RAL 7001 | Handle: RAL 7016
For NH size
00
For bar systems with centre-to-centre spacing
185 mm
Cable outlet
Bottom
Type of electrical connection
Screw M8
Installation type
Clamping attachment
Number of poles
3-pole
Rated operating voltage
400 V, 3~
Rated operating current max.
160 A
Test specification
IEC/DIN EN 60 947-3
For converter installation
Yes
Dimensions
Width: 50 mm | Height: 860 mm
Connection for round conductor
1.5 ‐ 95 mm²
To fit busbars
Height: 10 mm
Packs of
1 pc(s).
Weight/pack
5.48 kg
Copper weight (kg per piece)
1.072
Customs tariff number
85043129
EAN
4028177806726
ETIM 9
EC001040
ECLASS 8.0
27371401
Product description
SV NH slimline switch disconnector, size 00, 160 A, 400 V, 3-pole, screw M8, 185 mm, cable outet bottom, clamping attachment
Feature: The SV 9677.080 uses a 3-pole, automatic quick-break contact for operator-independent switching. Business Impact: This enables safe, rapid isolation during start-stop sequences, reducing human error and compliance risk in automated lines. Application: Ideal for 3-phase motors, drives, and automated loads in control panels and machine builds, enabling fast, reliable integration. This design supports fast, reliable integration for machine builders seeking fast, reliable integration. Feature: The housing uses UL 94‑V0 fire-protected polyamide and contact tracks are partially silver-plated hard copper for durable, low-resistance operation. Business Impact: This improves fire safety, wear resistance, and long-term reliability under frequent switching, reducing maintenance costs. Application: Meets IEC/DIN EN 60 947‑3 and supports bottom cable outlets, making it suitable for rugged industrial switchgear in automation panels. Feature: Installation and compatibility advantages including M8 screw type, bottom outlet, and clamping attachment. Business Impact: Reduces field wiring complexity and helps technicians mount quickly in 185 mm bar spacing setups. Application: Suited for 3-pole, NH00 busbar installations in robotics and packaging lines, where fast changeovers matter. Feature: Documentation availability including PDFs and multilingual instructions (DE, EN, FR) to support installation, safety compliance, and efficient commissioning. Business Impact: Accelerates audits and commissioning, ensures traceability, and helps meet industry safety requirements. Application: Useful for panel builders and integrators in automotive, packaging, and process industries. Feature: The unit offers a compact footprint of 50 mm width and 860 mm height, shipped as 1 piece per pack with a weight of 5.48 kg. Business Impact: This compact form factor increases enclosure density, lowers material costs, and simplifies inventory management. This is especially advantageous for high-mix, low-volume production.
