Rittal 9677115 SV NH fuse-switch disconnector - 3-pole
Part Number: 9677115
Manufacturer
Rittal
Part number
9677115
Category
Alt Part Number
SV 9677.115
Quick Summary
SV NH slimline fuse-switch disconnector from Rittal provides compact protection for 3-pole bar systems in switchgear and control panels. For engineers grappling with limited cabinet space and complex wiring, its slim profile and bolt-on M12 connections simplify mounting and field servicing. This device complies with IEC/DIN EN 60 947-3 testing and uses fire-rated polyamide (UL 94-V0), supporting safe operation in demanding environments. It also offers current transformer installation compatibility and clear fuse-monitoring pathways. By incorporating electronic fuse monitoring and an 185 mm centre-to-centre spacing, it helps reduce maintenance downtime, improves fault visibility, and accelerates panel assembly, while top/bottom cable outlets streamline terminations in dense distributions.
Product Information
Extended Description

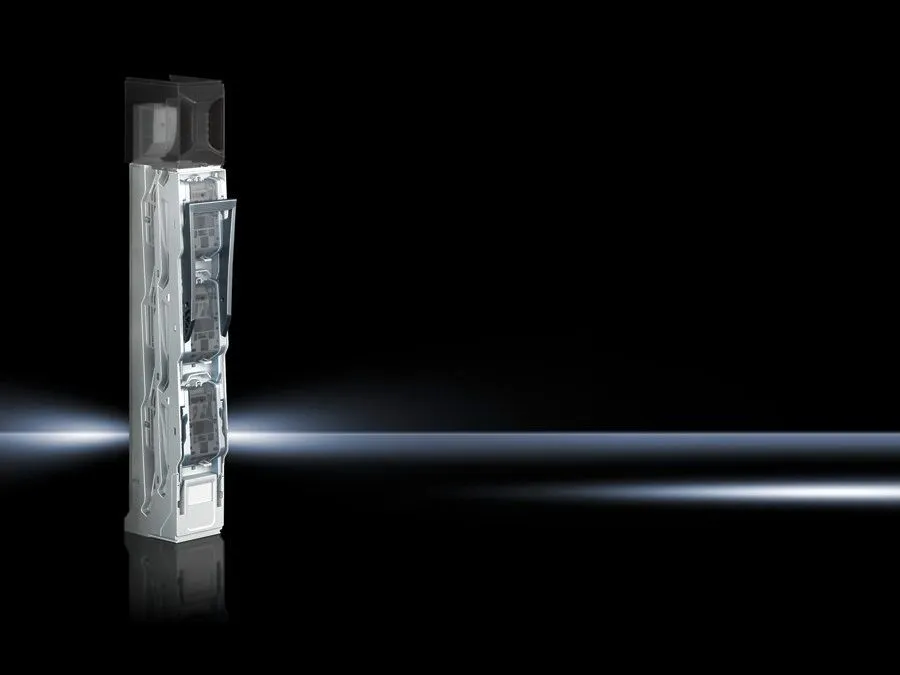

9677115 Rittal: SV NH slimline fuse-switch disconnector, size 1, 250 A, 400 V, 3-pole, bolt M12, 185 mm, with electronic fuse monitoring, for current transformer installation
Article number
SV 9677.115
Design
3-pole, switchable
Material
Polyamide | Fire protection corresponding to UL 94-V0 | Contact tracks: Partially silver-plated hard copper
Colour
Chassis: RAL 7035 | Cover: RAL 7001 | Handle: RAL 7016
For NH size
1
For bar systems with centre-to-centre spacing
185 mm
Cable outlet
Top/bottom
Type of electrical connection
Bolt M12
Number of poles
3-pole
Rated operating voltage
400 V, 3~
Rated operating current max.
250 A
Note
When using components on busbars with contact hazard protection cover, the contact terminal must be used
Test specification
IEC/DIN EN 60 947-3
For converter installation
Yes
Dimensions
Width: 100 mm | Height: 830 mm
Connection for round conductor
6 ‐ 240 mm²
To fit busbars
Height: 10 mm
Packs of
1 pc(s).
Weight/pack
6.02 kg
Copper weight (kg per piece)
1.73
Customs tariff number
85365080
EAN
4028177705500
ETIM 9
EC001046
ECLASS 8.0
27371402
Product description
SV NH slimline fuse-switch disconnector, size 1, 250 A, 400 V, 3-pole, bolt M12, 185 mm, with electronic fuse monitoring, for current transformer installation
Feature: 3-pole NH slimline design with 185 mm spacing. Business Impact: enables high-density busbar layouts, reducing cabinet footprint and wiring complexity. Application: ideal for switchgear, control panels, and panel builders needing compact protection in 185 mm bar systems. Feature: Bolt M12 electrical connection and top/bottom cable outlets. Business Impact: ensures robust, flexible terminations and simplified routing in tight spaces. Application: supports reliable wiring to 6-240 mm² conductors and quick field servicing in transformer installations. Feature: UL 94-V0 fire-rated polyamide housing and partially silver-plated copper contact tracks. Business Impact: enhances safety and durability in harsh environments, lowering risk of thermal faults and wear. Application: suitable for demanding industrial control environments with stringent safety requirements. Feature: Electronic fuse monitoring. Business Impact: provides real-time fault detection and status visibility, reducing unplanned downtime. Application: critical for current transformer installations and systems requiring continuous protection monitoring. Feature: IEC/DIN EN 60 947-3 test specification compliance. Business Impact: ensures regulatory alignment and easier approvals during audits. Application: globally applicable to industrial panels and machinery requiring certified protective switching.
