Rittal SV 9677.160 NH Slimline Switch Disconnector - 94-V0
Part Number: 9677160
Manufacturer
Rittal
Part number
9677160
Category
Alt Part Number
SV 9677.160
Quick Summary
Rittal SV 9677.160 NH slimline switch disconnector provides reliable isolation for 3-pole circuits in control panels and switchgear. Engineers often struggle with tight panel space and the need for safe, operator-independent disconnection in 690 V systems. This device combines UL 94-V0 fire-protective material and IEC/DIN EN 60 947-3 compliance to deliver robust safety and regulatory alignment. Its compact NH size, 185 mm center-to-center spacing, and bottom cable outlet enable faster wiring and streamlined panel layouts, reducing footprint and installation time. The result is a safer, more economical solution for high-power distribution in industrial environments.
Product Information
Extended Description

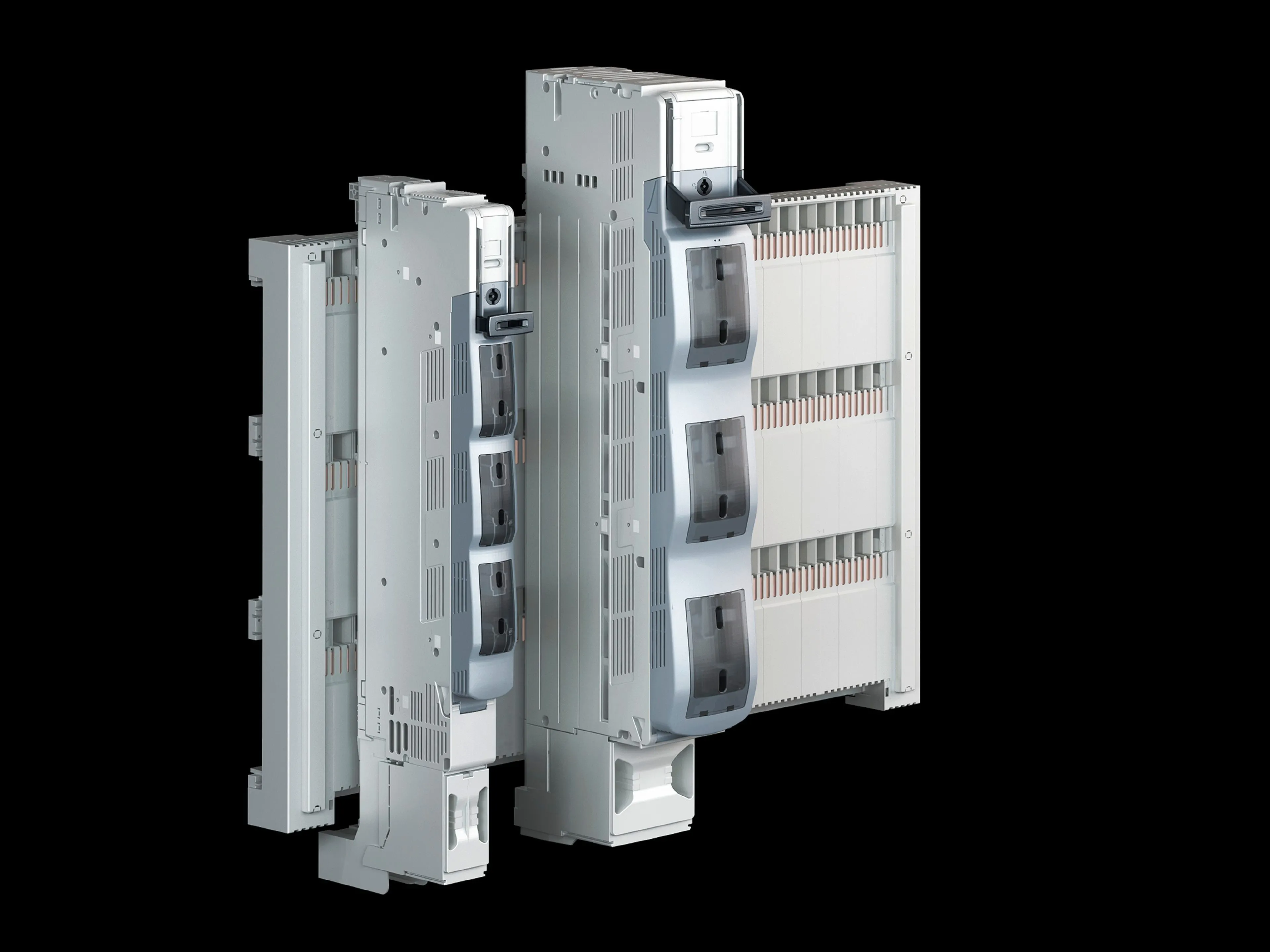

9677160 Rittal: SV NH slimline switch disconnector, size 1, 250 A, 690 V, 3-pole, bolt M12, 185 mm, cable outet bottom, screw attachment
Article number
SV 9677.160
Design
3-pole, switchable
Function principle
Automatic quick-break contact allows operator-independent switching
Material
Polyamide | Fire protection corresponding to UL 94-V0 | Contact tracks: Partially silver-plated hard copper
Colour
Chassis: RAL 7035 | Cover: RAL 7001 | Handle: RAL 7016
For NH size
1
For bar systems with centre-to-centre spacing
185 mm
Cable outlet
Bottom
Type of electrical connection
Screw M12
Installation type
Screw attachment
Number of poles
3-pole
Rated operating voltage
690 V, 3~
Rated operating current max.
250 A
Test specification
IEC/DIN EN 60 947-3
Dimensions
Width: 100 mm | Height: 772 mm
Connection for round conductor
6 ‐ 240 mm²
To fit busbars
Height: 10 mm
Packs of
1 pc(s).
Weight/pack
12.3 kg
Copper weight (kg per piece)
2.696
Customs tariff number
85369095
EAN
4028177809079
ETIM 9
EC001040
ECLASS 8.0
27371401
Product description
SV NH slimline switch disconnector, size 1, 250 A, 690 V, 3-pole, bolt M12, 185 mm, cable outet bottom, screw attachment
Feature → Business Impact → Application: High current rating and 690 V operating voltage enable safe isolation for three-phase power feeds in demanding control panels and switchgear, reducing the risk of accidental energization and downtime. Application: 3-pole NH1 disconnects in 185 mm busbar layouts support compact, scalable power distribution in machine assemblies. Feature → Improves space utilization and installation speed by integrating bottom cable outlet and screw attachment, minimizing wiring complexity and panel depth. Application: Panels with limited rear clearance or front-accessible wiring where rapid maintenance is essential. Feature → Robust materials with UL 94-V0 fire protection and partially silver-plated copper contact tracks improve longevity under arc and thermal stress, cutting maintenance cycles and replacement costs. Application: Continuous operation in harsh industrial environments with stringent safety requirements. Feature → Bolt M12 connection and 6-240 mm² conductor range provide flexible, secure terminations for diverse feeder configurations; height and width specs simplify enclosure planning. Application: New-builds and upgrades where standardized mounting and reliable contact integrity matter. Feature → IEC/DIN EN 60 947-3 compliance and documented product data support compliance audits, safety certifications, and QA traceability. Application: Regulated sectors such as packaging, automotive, and process automation that demand formal conformity evidence. Feature → 3-pole, bottom-outlet design ensures consistent contact alignment and reduced torque during installation; integrated design reduces potential mis-wiring. Application: High-volume assembly lines where repeatable, fast installation is critical. Feature → Copper weight and material composition optimize conductive performance while maintaining mechanical robustness for long service life. Application: Heavy-duty control circuits requiring low resistance and durable contact surfaces.
