Rittal SV 9677.210 NH Fuse-Switch Disconnector - 690 V
Part Number: 9677210
Manufacturer
Rittal
Part number
9677210
Category
Alt Part Number
SV 9677.210
Quick Summary
Rittal SV 9677.210 NH Slimline fuse-switch disconnector provides reliable 3-pole switching for 690 V power distribution. Maintaining clear busbar layouts and transformer connections can be challenging in compact enclosures. This unit meets IEC/DIN EN 60 947-3 testing and carries a UL 94-V0 flame rating for safer operation. Its NH size 2 fit and 185 mm bar spacing support efficient installation and robust current transformer setups. Designed for top or bottom cable exits and bolt M12 connections, it helps reduce wiring complexity and downtime. With a compact 100 mm width and 670 mm height footprint, it integrates neatly into standard industrial enclosures, delivering consistent reliability in demanding environments.
Product Information
Extended Description

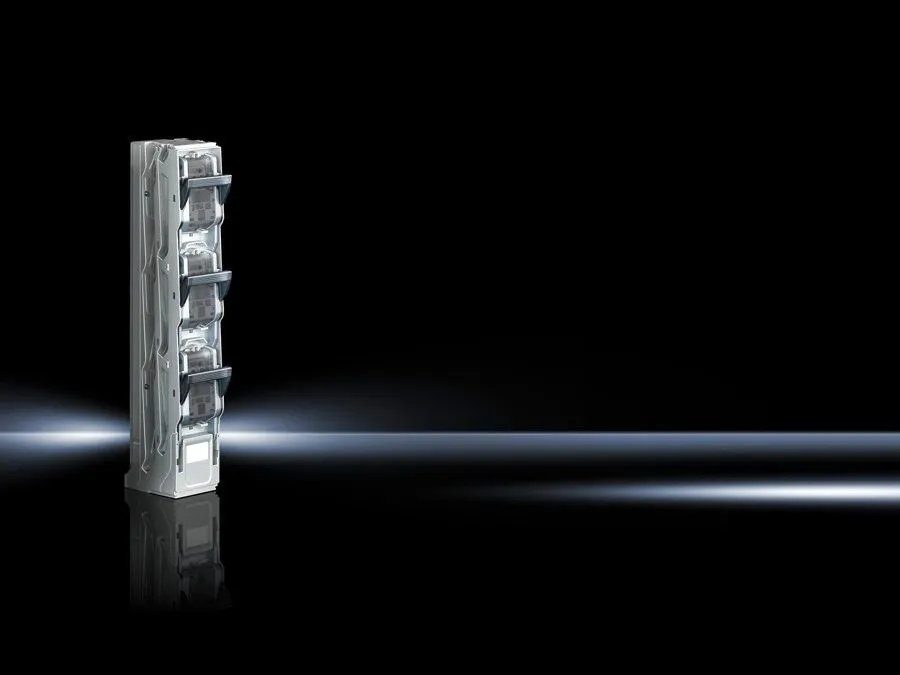

9677210 Rittal: SV NH slimline fuse-switch disconnector, size 2, 400 A, 690 V, 3-pole, bolt M12, 185 mm, single-pole, switchable, for current transformer installation
Article number
SV 9677.210
Design
single-pole, switchable
Material
Polyamide | Fire protection corresponding to UL 94-V0 | Contact tracks: Partially silver-plated hard copper
Colour
Chassis: RAL 7035 | Cover: RAL 7001 | Handle: RAL 7016
For NH size
2
For bar systems with centre-to-centre spacing
185 mm
Cable outlet
Top/bottom
Type of electrical connection
Bolt M12
Number of poles
3-pole
Rated operating voltage
690 V, 3~
Rated operating current max.
400 A
Note
When using components on busbars with contact hazard protection cover, the contact terminal must be used
Test specification
IEC/DIN EN 60 947-3
For converter installation
Yes
Dimensions
Width: 100 mm | Height: 670 mm
Connection for round conductor
6 ‐ 240 mm²
To fit busbars
Height: 10 mm
Packs of
1 pc(s).
Weight/pack
5.02 kg
Copper weight (kg per piece)
1.73
Customs tariff number
85365080
EAN
4028177705524
ETIM 9
EC001046
ECLASS 8.0
27371402
Product description
SV NH slimline fuse-switch disconnector, size 2, 400 A, 690 V, 3-pole, bolt M12, 185 mm, single-pole, switchable, for current transformer installation
High-current, 3-pole design enables 400 A continuous operation, delivering dependable protection and switching in demanding power distribution. This translates to reduced fault impact and streamlined maintenance workflows in control panels and switchgear, especially where current transformer installation is required. UL 94-V0 rated polyamide housing and partially silver-plated hard copper contact tracks enhance safety and long-term durability, minimizing replacement frequency and service calls. The top/bottom cable outlet and bolt M12 connection support flexible, fast wiring while accommodating a conductor range of 6-240 mm², reducing installation time and wiring errors. The 185 mm bar spacing and NH size 2 compatibility ensure precise fit within standard busbar systems, lowering custom fabrication costs. When used on busbars with contact hazard protection covers, the noted contact terminal requirement prevents accidental contact, improving operator safety and compliance. Overall, the unit balances compact footprint with rugged performance for converter installations and space-constrained panels, delivering measurable efficiency gains and lower lifecycle cost.
