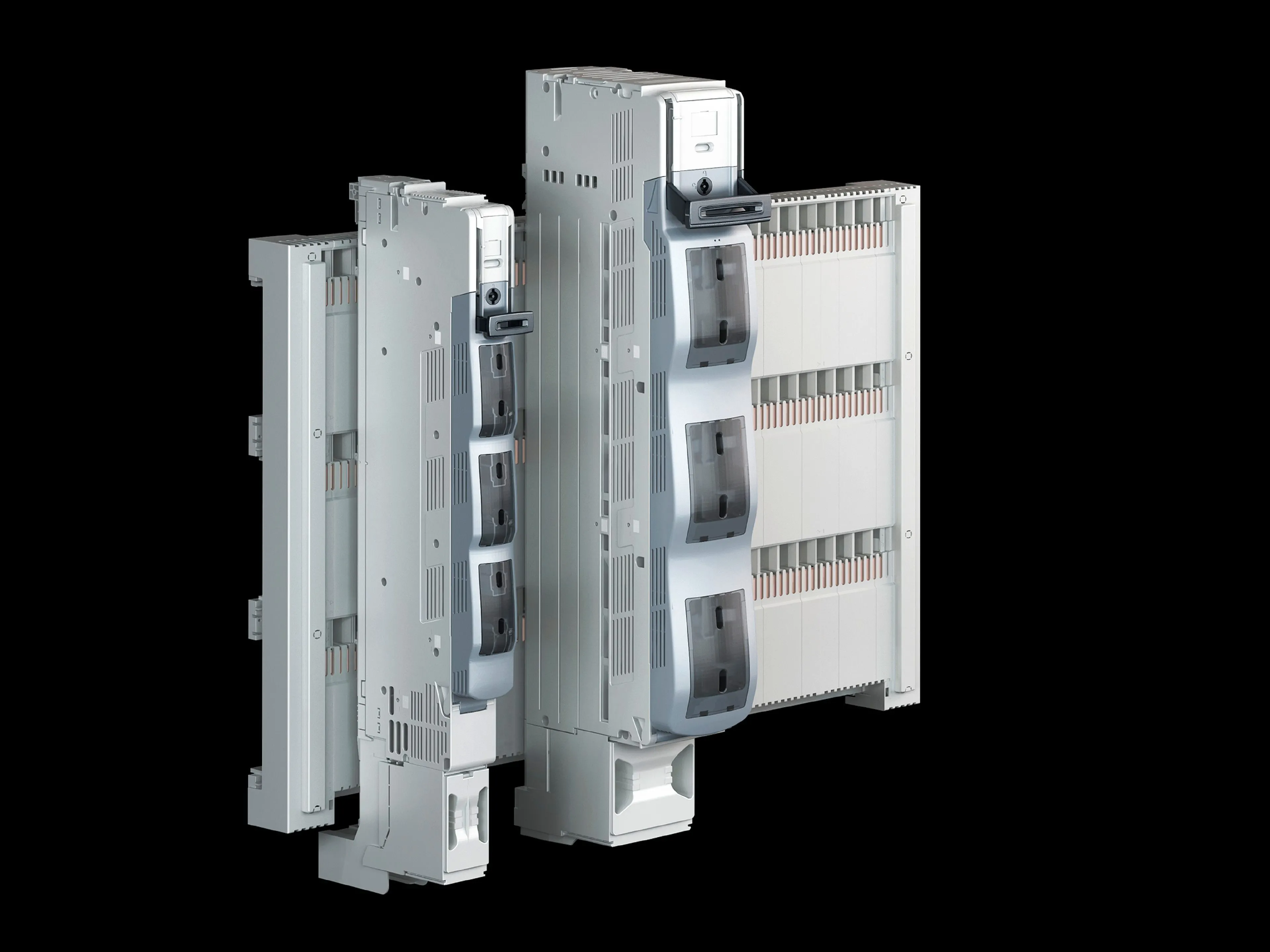

Rittal 9677265 SV NH Slimline Switch Disconnector - 400 A
Part Number: 9677265
Manufacturer
Rittal
Part number
9677265
Category
Alt Part Number
SV 9677.265
Quick Summary
Rittal 9677265 SV NH slimline switch disconnector isolates 3-pole power circuits up to 690 V. In compact panels, space constraints and installation complexity often slow projects; this unit minimizes footprint while preserving safety. It carries UL 94‑V0 fire-rated material and IEC/DIN EN 60 947‑3 compliance, reinforcing reliability in critical control panels. For NH size 2, with 185 mm bar spacing, cable outlet at the top, and screw attachment, it integrates quickly into distribution boards and motor control centers, reducing commissioning time and life-cycle costs. The robust 400 A rating supports demanding industrial loads while maintaining easy service access and predictable tripping behavior.
Product Information
Extended Description
9677265 Rittal: SV NH slimline switch disconnector, size 2, 400 A, 690 V, 3-pole, bolt M12, 185 mm, cable outet top, screw attachment
Article number
SV 9677.265
Design
3-pole, switchable
Function principle
Automatic quick-break contact allows operator-independent switching
Material
Polyamide | Fire protection corresponding to UL 94-V0 | Contact tracks: Partially silver-plated hard copper
Colour
Chassis: RAL 7035 | Cover: RAL 7001 | Handle: RAL 7016
For NH size
2
For bar systems with centre-to-centre spacing
185 mm
Cable outlet
Top
Type of electrical connection
Screw M12
Installation type
Screw attachment
Number of poles
3-pole
Rated operating voltage
690 V, 3~
Rated operating current max.
400 A
Test specification
IEC/DIN EN 60 947-3
Dimensions
Width: 100 mm | Height: 772 mm
Connection for round conductor
6 ‐ 240 mm²
To fit busbars
Height: 10 mm
Packs of
1 pc(s).
Weight/pack
14 kg
Copper weight (kg per piece)
4.003
Customs tariff number
85043129
EAN
4028177806788
ETIM 9
EC001040
ECLASS 8.0
27371401
Product description
SV NH slimline switch disconnector, size 2, 400 A, 690 V, 3-pole, bolt M12, 185 mm, cable outet top, screw attachment
Feature: 3-pole, 400 A, 690 V capability enables true three-phase isolation for demanding industrial loads, reducing equipment count and cabinet complexity. Business impact: Higher reliability and reduced installation time in MCCs and distribution boards. Application: Heavy-duty motor control centers and panel boards that require solid isolation. Feature: UL 94‑V0 fire-rated polyamide housing provides fire safety without compromising mechanical strength. Business impact: Enhanced safety compliance and longer service life in harsh environments. Application: Panels in manufacturing lines with strict material safety requirements. Feature: NH size 2 with 185 mm centre-to-centre spacing fits standard busbar layouts. Business impact: Seamless compatibility reduces mounting adjustments and simplifies panel planning. Application: Modular switchgear where space is at a premium. Feature: Top cable outlet and screw M12 connection simplify wiring and reduce terminal stress. Business impact: Faster wiring and more durable connections, lowering maintenance costs. Application: Factory automation panels with frequent reworks. Feature: Conductor range 6‑240 mm² supports flexible wiring options and future upgrades. Business impact: Versatile installation that accommodates evolving load profiles. Application: Industrial distribution and control panels with mixed conductor sizes. Feature: Dimensions and packaging (Width 100 mm; Height 772 mm; packs of 1 pc; weight 14 kg) enable predictable space allocation and logistics planning. Business impact: Streamlined procurement and panel design workflows. Application: Enclosures in space-constrained environments and large-scale installations.
