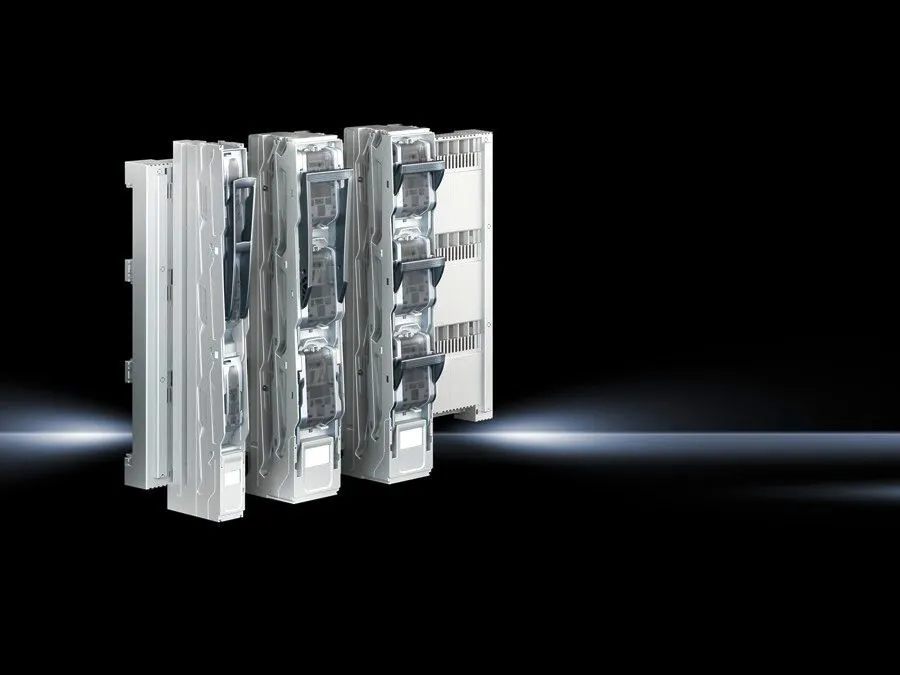

Rittal 9677340 Fuse-Switch Disconnector - 3-Pole, 185 mm spacing
Part Number: 9677340
Manufacturer
Rittal
Part number
9677340
Category
Alt Part Number
SV 9677.340
Quick Summary
Rittal 9677340 fuse-switch disconnector provides safe isolation for power distribution in control panels. Engineers often struggle with space limitations and wiring complexity when integrating current transformers in compact switchgear. This unit leverages a slim NH design and a bottom cable outlet to streamline installation, reduce mounting time, and improve panel density. It complies with IEC/DIN EN 60947-3 and uses UL 94-V0 fire-rated polyamide, supporting safe operation in demanding environments. With 3-pole operation, 1250 A current, and 690 V rating, it delivers robust protection while fitting NH size 3 busbar systems, enabling efficient, compliant, and cost-effective voltage isolation in modern automation cabinets.
Product Information
Extended Description
9677340 Rittal: SV NH slimline fuse-switch disconnector, size 3, 1250 A, 690 V, 3-pole, twin track, bolt M12, 185 mm, for current transformer installation
Article number
SV 9677.340
Design
3-pole, switchable
Material
Polyamide | Fire protection corresponding to UL 94-V0 | Contact tracks: Partially silver-plated hard copper
Colour
Chassis: RAL 7035 | Cover: RAL 7001 | Handle: RAL 7016
For NH size
3
For bar systems with centre-to-centre spacing
185 mm
Cable outlet
Bottom
Type of electrical connection
Bolt M12
Number of poles
3-pole
Rated operating voltage
690 V, 3~
Rated operating current max.
1,250 A
Note
When using components on busbars with contact hazard protection cover, the contact terminal must be used
Test specification
IEC/DIN EN 60 947-3
For converter installation
Yes
Dimensions
Width: 200 mm | Height: 670 mm
Connection for round conductor
6 ‐ 240 mm²
To fit busbars
Height: 10 mm
Double disconnector
Yes
Packs of
1 pc(s).
Weight/pack
14.6 kg
Copper weight (kg per piece)
6.838
Customs tariff number
85365080
EAN
4028177705579
ETIM 9
EC001046
ECLASS 8.0
27371402
Product description
SV NH slimline fuse-switch disconnector, size 3, 1250 A, 690 V, 3-pole, twin track, bolt M12, 185 mm, for current transformer installation
Feature: 3-pole, 1250 A, 690 V capability. Business Impact: Supports high-current isolation in medium-voltage panels, reducing the need for additional devices and simplifying single-device protection. Application: Power management and distribution in switchgear assemblies. Feature: NH size 3 compatibility and 185 mm spacing. Business Impact: Standardized mounting footprint accelerates integration with common busbar systems, lowering engineering time. Application: Industrial control panels and transformer installations. Feature: Bottom cable outlet with bolt M12 connections. Business Impact: Safer, neater wiring with easier access for maintenance and fault finding. Application: Cable routing in congested enclosures. Feature: Double disconnector design. Business Impact: Enhanced safety and reliability through redundant isolation paths, supporting safer commissioning and maintenance. Application: Critical power feeds in serving multiple transformers. Feature: UL 94-V0 material and multi-color finish. Business Impact: Improves fire safety compliance and visibility within enclosures, reducing risk and miswiring. Application: Enclosures in harsh environments and high-traffic areas. Feature: Robust dimensions (Width 200 mm, Height 670 mm) and copper-weighted contacts. Business Impact: Mechanical robustness under frequent switching, long service life, predictable torque, and reliable current paths. Application: Heavy-duty industrial switchgear and converter installations. Feature: 1250 A current rating with 690 V operating voltage. Business Impact: Enables high-power isolation without cascading devices, reducing system complexity. Application: Large-scale automation and power distribution cabinets.
