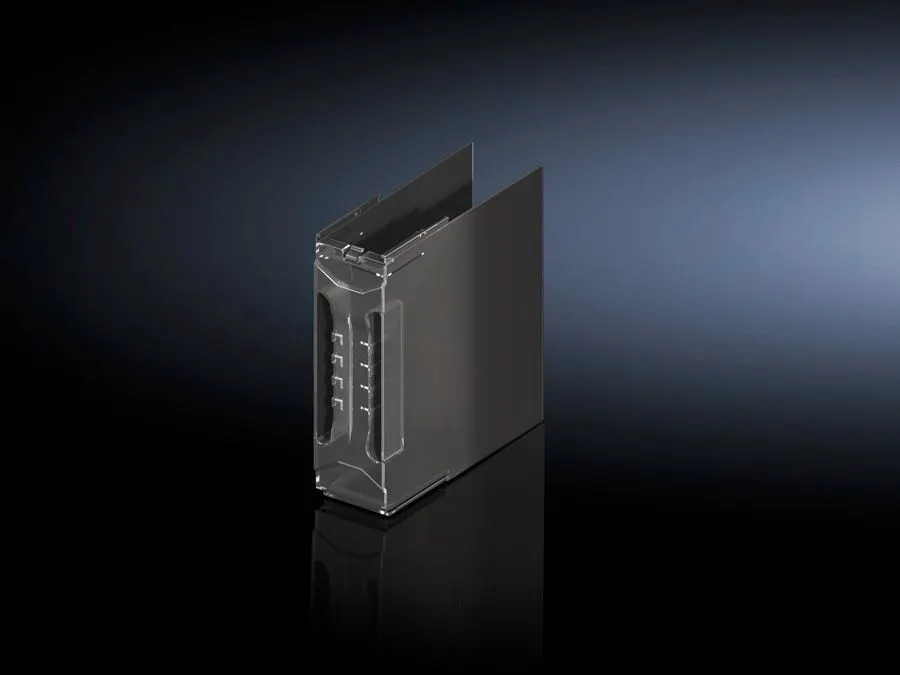

Rittal 9677400 SV Connection space cover - UL 94-V0
Part Number: 9677400
Manufacturer
Rittal
Part number
9677400
Category
Alt Part Number
SV 9677.400
Quick Summary
Rittal 9677400 SV connection space cover protects the cable connection area in electrical panels. This accessory helps guard against accidental contact when working with long collar ring terminals. Installers often confront hazardous exposure during wiring, especially in crowded NH slimline configurations. The part uses polycarbonate with fire protection rated to UL 94-V0, and matches industry classifications such as ETIM EC001638 and ECLASS 27142116 for reliable sourcing. By consolidating safety coverage in a compact, cascadable design, it accelerates wiring, reduces spare parts, and supports bottom cable outlets for neat cable management in 00-size panels while maintaining compatibility with NH slimline fuse-switch disconnectors.
Product Information
Extended Description
9677400 Rittal: SV Connection space cover, for, NH slimline fuse-switch disconnector/, NH slimline switch-disconnector, size 00, cable outlet bottom (185 mm)
Article number
SV 9677.400
Product description
Cascadable connection space cover to guarantee contact hazard protection in the cable connection zone when using ring terminals with a long collar.
Material
Polycarbonate | Fire protection corresponding to UL 94-V0
For size
00
To fit Model No.
9677.0X0
Cable outlet
Bottom
Note
When using NH slimline fuse-switch disconnectors with top cable outlet, use of the connection space cover is mandatory
Note on Model No.
Also suitable for use with NH slimline switch-disconnectors with top cable outlet
Packs of
1 pc(s).
Weight/pack
0.2 kg
Customs tariff number
85472000
EAN
4028177705128
ETIM 9
EC001638
ECLASS 8.0
27142116
Product description
SV Connection space cover, for, NH slimline fuse-switch disconnector/, NH slimline switch-disconnector, size 00, cable outlet bottom (185 mm)
Feature → Business Impact → Application: Cascadable connection space cover enables stacking multiple units to protect successive cable connections without adding bulky enclosures, reducing install time and inventory while improving safety in complex NH slimline layouts. Application: ideal for circuits using long collar ring terminals in panel panels, allowing neat cascading protection in fuse-switch disconnectors. Feature → Material and fire performance → Business Impact → Application: Made from polycarbonate with UL 94-V0 fire protection, delivering reliable fire safety performance in electrical cabinets and ensuring compliance during audits; reduces risk and potential downtime. Application: suitable for NH slimline devices in harsh or dense installations. Feature → Size and compatibility → Business Impact → Application: Size 00 with bottom cable outlet (185 mm) fits model 9677.0X0, offering straightforward installation and consistent cable management; simplifies retrofits and replacements. Application: NH slimline fuse-switch disconnectors and NH slimline switch-disconnectors. Feature → Top outlet note and compatibility → Business Impact → Application: Notes indicate mandatory use of this cover when top cable outlets are present, preventing misassembly and safeguarding operators. Application: supports both bottom and top outlet configurations in mixed installations. Feature → Packaging and weight → Business Impact → Application: Packs of 1 piece at 0.2 kg each enable modular ordering, easy stock control, and scalable deployment across multiple panels. Application: standard in projects requiring 00-size connection space protection.
Get a Quick Quote for a Rittal 9677400
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9677400?
Enquire Now
FAQs
The SV 9677.400 is designed to mount over the cable connection zone in NH slimline fuse-switch disconnectors. It accommodates bottom cable outlets for a tidy termination and protects against contact hazards when long collar ring terminals are used. Ensure the cover is cascaded with adjacent units as needed and align with the Model No. 9677.0X0 for proper fitment.
The cover is manufactured from polycarbonate with fire protection rated UL 94-V0, offering reliable flame resistance. It aligns with ETIM EC001638 and ECLASS 27142116 classification codes, supporting consistent procurement and compliance within industrial supply chains.
Yes, the product notes indicate it is also suitable for NH slimline switch-disconnectors with top cable outlets. However, when top outlets are used, the connection space cover is mandatory to maintain contact hazard protection in the cable connection zone.
This cover fits NH slimline devices sized 00 and is intended to work with Model No. 9677.0X0. It is sold as 1 piece per pack and weighs 0.2 kg, simplifying planning for multi-panel deployments and enabling straightforward replacements or upgrades.
By delivering cascadable protection, the cover reduces installation time, lowers spare parts needs, and enhances operator safety in dense wiring configurations. Its compatibility with bottom and top outlet configurations supports flexible layouts, while UL 94-V0 polycarbonate construction helps meet fire-safety compliance in electrical panels.
