Rittal 9677412 SV Connection Space Cover - EC001638
Part Number: 9677412
Manufacturer
Rittal
Part number
9677412
Category
Alt Part Number
SV 9677.412
Quick Summary
The Rittal 9677412 SV Connection Space Cover protects rear cable connections in NH slimline switch-disconnector installations. Designers and maintenance teams often struggle with protecting long-ring-terminal terminations in crowded cable spaces, risking accidental contact. This accessory aligns with ETIM EC001638 and ECLASS 27142116 specifications, supporting standardized procurement and traceability. Combined with the front space cover, it enables all-round protection, reduces downtime, and supports compliant, safer assemblies in control panels. The small polyamide housing with RAL 7035 color complements standard enclosures and simplifies inventory management. For safety engineers and procurement teams, the compact 185 mm cover integrates quickly, reducing downtime and service calls.
Product Information
Extended Description

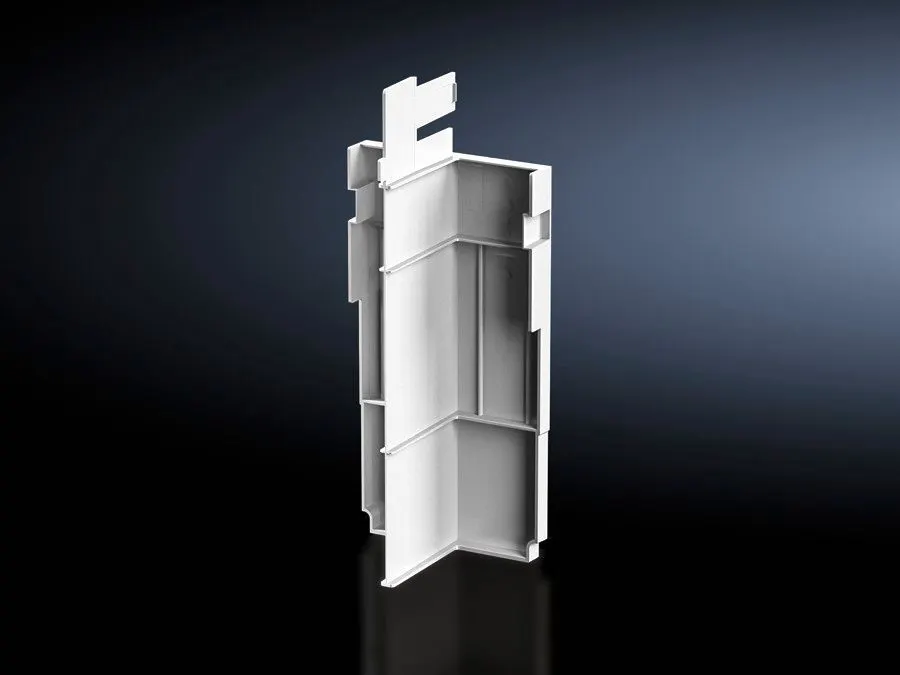

9677412 Rittal: SV Connection space cover, for NH slimline switch-disconnector, size 1-3 (185 mm)
Article number
SV 9677.412
Product description
To guarantee contact hazard protection in the rear cable connection zone when using ring terminals with long press sleeves. In conjunction with the front connection space cover (9677.400/.410), this achieves all-round contact hazard protection of the connection space.
Material
Polyamide
Colour
RAL 7035
For size
1 - 3
Packs of
1 pc(s).
Weight/pack
0.158 kg
Customs tariff number
85472000
EAN
4028177806863
ETIM 7.0
EC001638
ECLASS 8.0
27142116
Product description
SV Connection space cover, for NH slimline switch-disconnector, size 1-3 (185 mm)
Feature: SV 9677.412 delivers rear connection space protection in NH slimline switch-disconnectors when ring terminals with long press sleeves are used. Business Impact: This protects operators by eliminating exposed conductors and reducing potential contact hazards during maintenance. Application: Compatible with size 1–3 installations and designed to shield the rear cable connection zone in standard control panels. The cover material resists aging in busy electrical cabinets. Feature: Made from polyamide with a durable finish and color coded in RAL 7035. Business Impact: The tough housing withstands routine panel use and helps with quick visual identification during assembly and service. Application: Suits standard Rittal enclosures and aligns with color-coding practices in safe electrical rooms. Its polyamide surface cleans easily and resists typical workshop chemicals, helping maintain enclosure integrity. Feature: Works in conjunction with the front connection space cover 9677.400/.410 to provide all-round contact hazard protection. Business Impact: Reduces the number of loose parts and minimizes installation steps, shortening panel assembly times. Application: Ideal for modular NH slimline configurations in new builds and retrofits. Mounting is straightforward with existing alignment features of the 9677 family, enabling tool-free installation. Feature: Pack of 1 piece; weight per pack 0.158 kg. Business Impact: Lightweight and easy to handle, lowering logistics costs and simplifying on-site replacements. Application: Enables efficient stocking in tool cribs and service kits. Single-piece packs reduce waste and simplify bin stocking. Weighs 0.158 kg per unit, allowing safe handling with standard PPE. Feature: ETIM 7.0 EC001638 and ECLASS 8.0 27142116 alignment. Business Impact: Supports standardized data exchange and faster procurement. Application: Helps engineers, buyers, and MRO teams source compatible accessories. This alignment also helps maintain accurate bill-of-materials and reduces data-entry errors. Feature: Size range 1-3. Business Impact: Ensures compatibility across the NH slimline device family, reducing the need for multiple SKUs. Application: Fits 185 mm rear connection spacing in typical Rittal installations. This size range supports both modular configurations and retrofit projects. Benefiting upgrade projects and new builds alike.
Get a Quick Quote for a Rittal 9677412
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9677412?
Enquire Now
FAQs
The SV 9677.412 is designed to mount over the NH slimline connection area and works in concert with the front connection space cover 9677.400/.410. For size 1–3, align and snap into place using standard enclosure fasteners. This approach minimizes wiring interruptions and speeds retrofits while maintaining rear-space protection.
Key specs include article number SV 9677.412, material polyamide, color RAL 7035, for size 1-3, packs of 1, weight 0.158 kg, EAN 4028177806863, ETIM 7.0 EC001638, and ECLASS 8.0 27142116. These details support precise procurement, accurate inventory, and cross-system data integration.
Yes. The cover provides rear connection space protection for NH slimline switch-disconnectors when long terminals are used, especially in combination with the front cover 9677.400/.410, helping to prevent exposed conductors and enhance maintenance safety.
The accessory aligns with ETIM 7.0 EC001638 and ECLASS 8.0 27142116, which supports standardized data exchange and procurement processes. This alignment aids ERP synchronization, BOM consistency, and supplier data integrity.
Using the SV 9677.412 improves safety by reducing contact hazards, lowers downtime through quicker installations, and standardizes data across procurement and maintenance records. Its compatibility with the front cover reduces SKU variety, benefiting both retrofit projects and new builds.
