Rittal 9677420 SV Prism terminal - 10-95 mm² conductor
Part Number: 9677420
Manufacturer
Rittal
Part number
9677420
Category
Alt Part Number
SV 9677.420
Quick Summary
SV Prism terminal enables direct 10-95 mm² round conductor connections for NH slimline fuse-switch disconnector assemblies. Engineers often struggle with reliable terminations in compact switchgear, where space constraints and vibration can lead to loose connections. This product data lists ETIM EC000001 and ECLASS 27141146 classifications, supporting interoperability and procurement accuracy. By using tin-plated brass in size 00 and aligning with model SV 9677.000, it delivers durable contact integrity and simplified stocking. The solution streamlines panel-building workflows, reduces commissioning time, and supports predictable maintenance planning, contributing to lower lifecycle costs in industrial wiring and panel assembly projects.
Product Information
Extended Description

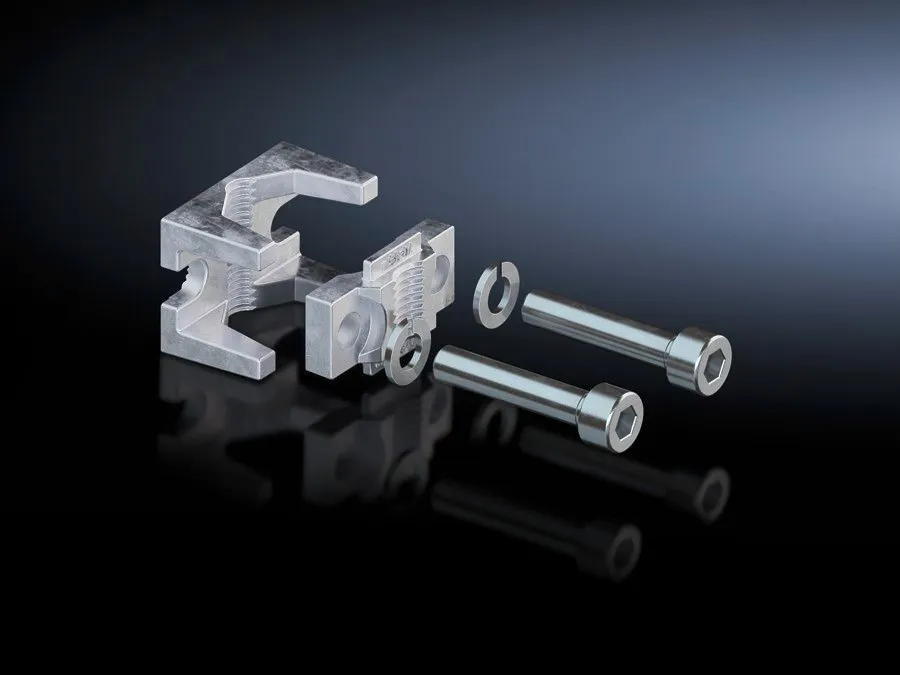

9677420 Rittal: SV Prism terminal, for NH slimline fuse-switch disconnector, size 00 (SV 9677XXX), round conductor connection 10-95 mm²
Article number
SV 9677.420
Product description
For the direct connection of round conductors.
Material
Brass
Surface finish
Tin-plated
For size
00
To fit Model No.
9677.000
Connection for round conductor
10 ‐ 95 mm²
Packs of
3 pc(s).
Weight/pack
0.129 kg
Customs tariff number
73182900
EAN
4028177705166
ETIM 9
EC000001
ECLASS 8.0
27141146
Product description
SV Prism terminal, for NH slimline fuse-switch disconnector, size 00 (SV 9677XXX), round conductor connection 10-95 mm²
Feature: Direct connection of round conductors (10-95 mm²) via a brass, tin-plated SV Prism terminal. Business impact: reduces termination time and minimizes risk of loose connections in NH slimline fuse-switch disconnector installations. Application: size 00 terminals in compact panel assemblies. Paragraph two highlights robust, corrosion-resistant contact surfaces; business impact is longer service life and lower maintenance in demanding factory environments; application in harsh industrial settings. Paragraph three notes packaging and compatibility: packs of 3, weight per pack 0.129 kg, designed to fit Model No. 9677.000 for streamlined stocking and quick replacements in distribution boards and switchgear. Paragraph four emphasizes data standardization and procurement efficiency, citing ETIM EC000001 and ECLASS 27141146 compatibility to improve ERP integration and catalog consistency. Paragraph five covers documentation and installation support via downloadable PDFs and instructions, accelerating field service and commissioning while reducing on-site questions and errors.
