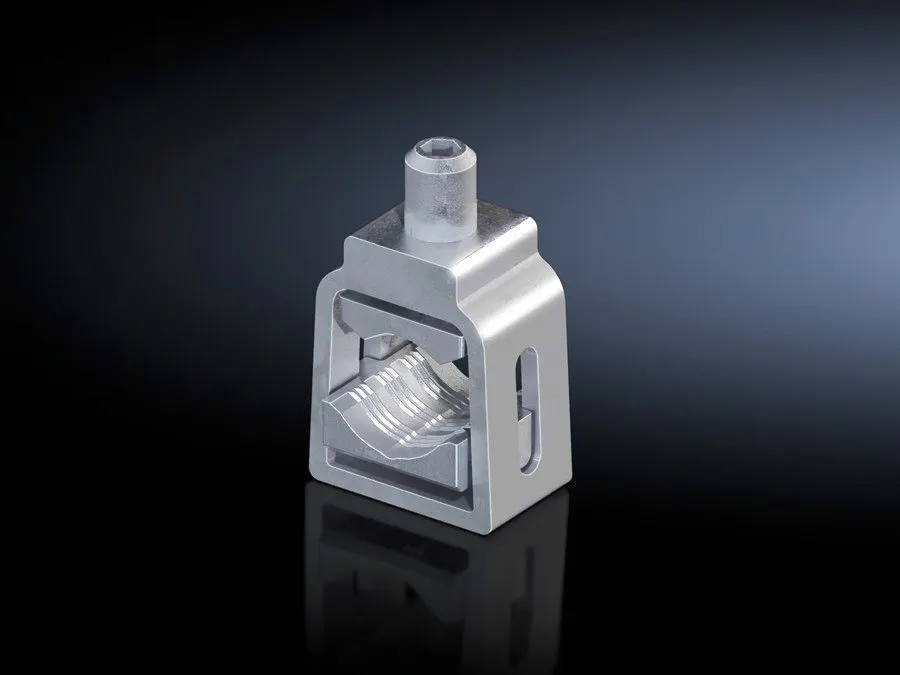

Rittal SV 9677.430 V Connection Terminal - 70–240 mm²
Part Number: 9677430
Manufacturer
Rittal
Part number
9677430
Category
Alt Part Number
SV 9677.430
Quick Summary
Rittal SV 9677.430 V connection terminal directly connects round conductors in NH slimline fuse-switch disconnector setups. Tight panel spaces and high conductor loads often cause loose connections or overheating if terminations are ill-suited. This data set includes ETIM 9 EC000001 and ECLASS 8.0 27141146 classifications to streamline procurement and integration; verify CE, SIL, or IP certifications with your supplier. For fast, reliable terminations in control panels, the tin-plated brass construction and direct-round-conductor compatibility deliver measurable business value, while supporting maintenance planning and compliance efforts.
Product Information
Extended Description
9677430 Rittal: SV V connection terminal, for NH slimline fuse-switch disconnector, size 1/2 (SV 9677XXX), round conductor connection 70-240 mm²
Article number
SV 9677.430
Product description
For the direct connection of round conductors.
Material
Brass
Surface finish
Tin-plated
For size
1/2
To fit Model No.
9677.100
Connection for round conductor
70 ‐ 240 mm²
Packs of
3 pc(s).
Weight/pack
0.366 kg
Copper weight (kg per piece)
0.067
Customs tariff number
73182900
EAN
4028177705173
ETIM 9
EC000001
ECLASS 8.0
27141146
Product description
SV V connection terminal, for NH slimline fuse-switch disconnector, size 1/2 (SV 9677XXX), round conductor connection 70-240 mm²
Feature: Direct round-conductor compatibility. Impact: Enables secure, low-impedance connections with conductor ranges of 70-240 mm², reducing contact resistance and heat generation in NH slimline fuse-switch disconnector assemblies. Application: Ideal for compact electrical cabinets in manufacturing and process automation. Feature: Brass material with tin-plated surface finish. Impact: Provides robust mechanical durability and corrosion resistance in harsh industrial environments, extending service life and reducing maintenance cycles. Application: Panel builders and field installations exposed to dust, moisture, or splashes. Feature: Size 1/2 fitment with model compatibility. Impact: Fits NH slimline devices designated as size 1/2 and aligns with SV 9677XXX family, simplifying BOM management. Application: Enables standardized component kits for multi-bay switchgear. Feature: Pack configuration of 3 pieces per pack. Impact: Eases stocking, reduces reorder frequency, and lowers total cost of ownership through consolidated procurement. Application: Procurement and warehouse planning for panel builds. Feature: Clear documentation and classifications. Impact: Supports engineering workflows via ETIM EC000001 and ECLASS 27141146, speeding CAD/ERP integration and compliance checks. Application: Industrial automation projects requiring traceable parts data and rapid sourcing.
