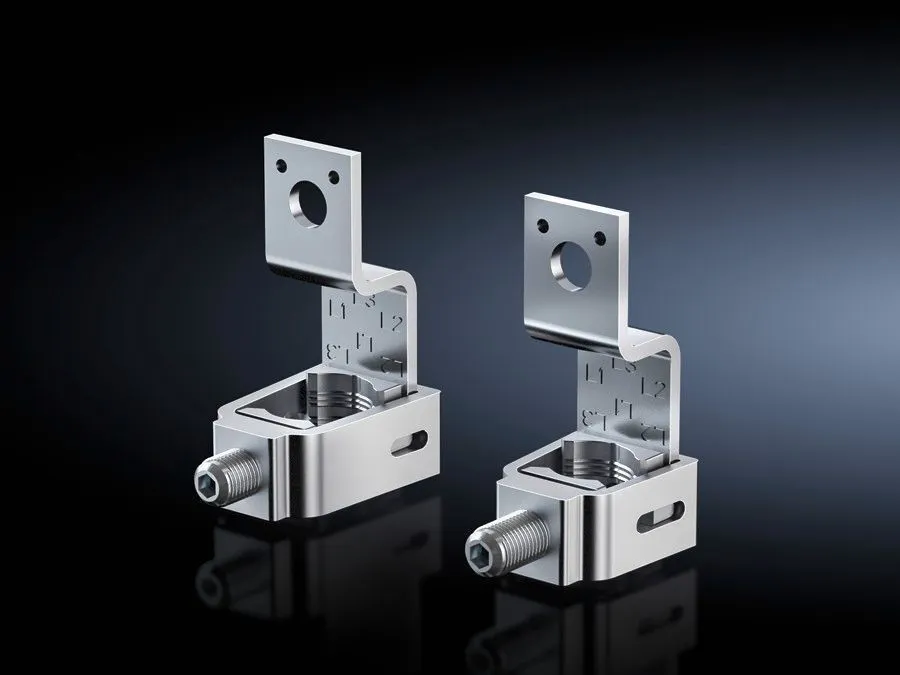

Rittal SV 9677.445 Box Terminal - 185–300 mm²
Part Number: 9677445
Manufacturer
Rittal
Part number
9677445
Category
Alt Part Number
SV 9677.445
Quick Summary
Rittal SV 9677.445 Box Terminal enables NH slimline switch-disconnector conversion to box-terminal connections for round conductors. In compact control panels, engineers often struggle with secure, space-efficient terminations and long install times; this adapter simplifies routing and reduces assembly effort. Note: The data lists ETIM EC000001 and ECLASS 27400609 as classifications; explicit SIL, CE, or IP ratings are not listed here—verify in the downloadable documentation. By integrating robust aluminium and silver-plated copper, it supports reliable power distribution while enabling scalable future upgrades, especially for NH modules sized 1–3 and conductors in the 185–300 mm² range.
Product Information
Extended Description
9677445 Rittal: SV Box terminal, for NH slimline switch-disconnector, size 1-3 (185 mm), round conductor connection 185-300 mm²
Article number
SV 9677.445
Product description
For converting NH slimline switch-disconnectors to box terminal connection for round conductors.
Material
Aluminium | E-Cu, silver-plated
Supply includes
Connection space cover, rear
Connection for round conductor
185 ‐ 300 mm²
For size
1 - 3
Packs of
3 pc(s).
Weight/pack
0.89 kg
Copper weight (kg per piece)
0.11
Customs tariff number
85369095
EAN
4028177806849
ETIM 9
EC000001
ECLASS 8.0
27400609
Product description
SV Box terminal, for NH slimline switch-disconnector, size 1-3 (185 mm), round conductor connection 185-300 mm²
Feature: Material is aluminium with silver-plated copper contact. Impact: Combines light weight with high conductivity and corrosion resistance for dependable long-term performance. Application: Ideal for demanding industrial panels where current paths must remain low-impedance over time. Feature: Round conductor compatibility up to 300 mm². Impact: Accommodates higher current profiles without overheating risk. Application: Suitable for main feeds in power distribution and control cabinets. Feature: Size range 1–3. Impact: Enables modular integration with NH slimline switch-disconnectors, simplifying retrofits and upgrades. Application: Retrofit projects and new builds in compact enclosures. Feature: Packaged in 3-piece sets with a rear cover. Impact: Reduces stock variety and improves procurement efficiency while ensuring complete installation kit. Application: Purchasing and logistics in high-mupply environments. Feature: Includes rear connection space cover. Impact: Protects terminations from dust and moisture ingress, extending enclosure integrity. Application: Harsh or dirty factory floor environments. Feature: Copper weight per piece 0.11 kg and pack weight 0.89 kg. Impact: Provides predictable weight budgeting for installation and handling. Application: System design and ergonomic planning in panel builds. Feature: EAN 4028177806849 and customs tariff 85369095 for traceability. Impact: Simplifies cross-border sourcing and compliance checks. Application: Global procurement and ERP data integration.
Get a Quick Quote for a Rittal 9677445
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9677445?
Enquire Now
FAQs
SV 9677.445 is designed to convert NH slimline switch-disconnectors to box-terminal connections for round conductors in the 185–300 mm² range. It fits size 1–3 NH modules and ships as a 3-piece pack with a rear connection space cover, facilitating straightforward integration into standard Rittal enclosures and compatible systems.
The product uses aluminium with silver-plated copper for the contact area, delivering low contact resistance and robust corrosion resistance. The 185–300 mm² round conductor connection supports higher current paths, reducing heat buildup and improving long-term reliability in power distribution panels, while the compact NH module interface minimizes impedance in confined spaces.
The SV 9677.445 is intended for panel wiring within standard Rittal control cabinets. While the data sheet confirms material quality and mounting compatibility, it does not specify IP or outdoor ratings. For harsh environments, verify enclosure IP ratings and protective measures in the official technical documentation before deployment.
Formal certifications are not listed explicitly in the data provided. Refer to the downloads section, including the EN/DE/CS/DA documents, for technical information and compliance notes. Look for CE, UL, or IP-related details within those PDFs and contact Rittal for the latest certification status if required.
Stocking efficiency is enhanced by the three-piece packs, reducing part variety and simplifying reorder processes. The copper weight per piece (0.11 kg) and total pack weight (0.89 kg) enable predictable handling and lifecycle budgeting. The reliable aluminium-silver copper interface reduces maintenance needs and supports longer intervals between checkups in production lines.
