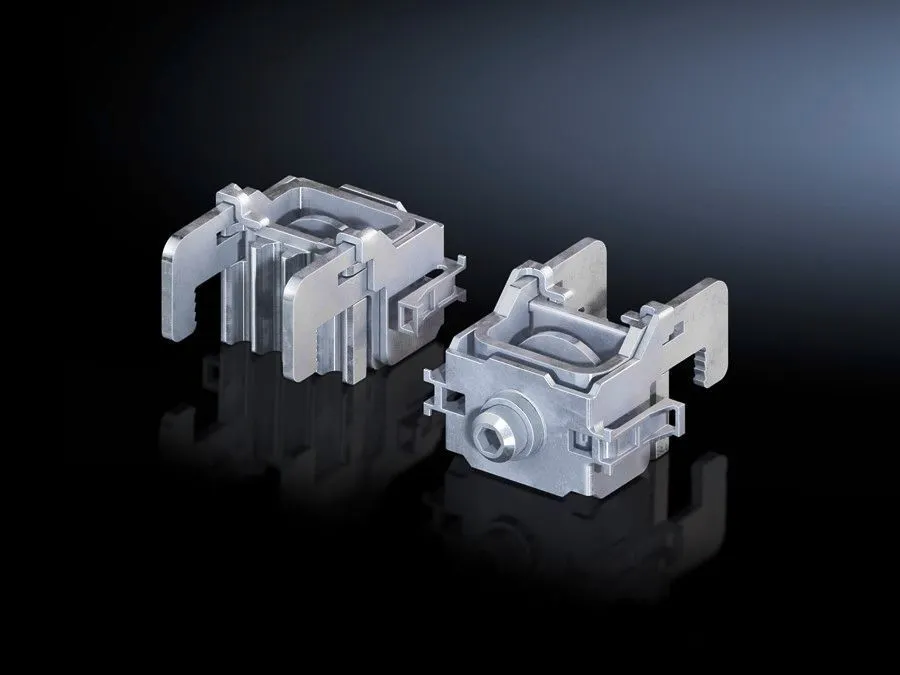

Rittal SV 9677.460 SV Contact Terminal - 185 mm Spacing
Part Number: 9677460
Manufacturer
Rittal
Part number
9677460
Category
Alt Part Number
SV 9677.460
Quick Summary
SV 9677.460 SV contact terminal enables quick mounting on NH slimline fuse-switch disconnector assemblies using 185 mm busbar spacing. Traditional panel expansions often demand drilling and precise alignment, which can introduce errors and extend commissioning times. This solution supports safety-conscious design with hazard-protected busbar configurations and aligns with ETIM 9 EC000001 and ECLASS 8.0 27141146 classifications, helping procurement teams standardize specifications. By eliminating drilling and simplifying connection adaptor integration, it delivers lower installation labor and consistent reliability. In addition to core functionality, the device contributes to safer, cleaner assemblies and supports green manufacturing considerations through efficient material use and packaging.
Product Information
Extended Description
9677460 Rittal: SV Contact terminal, for NH slimline fuse-switch disconnector, size 1-3/connection adaptor, (SV 9677XXX)
Article number
SV 9677.460
Product description
For mounting components on busbar systems with 185 mm centre-to-centre spacing, no drilling required.
Material
Sheet steel, zinc-plated | E-Cu, tin-plated
For size
1 - 3 and connection adaptor
Note
Only suitable for use on busbar system with contact hazard protection cover (cover section, slotted)
Packs of
3 pc(s).
Weight/pack
0.447 kg
Copper weight (kg per piece)
0.051
PCF per pack (cradle-to-gate)
1.7 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73182900
EAN
4028177705203
ETIM 9
EC000001
ECLASS 8.0
27141146
Product description
SV Contact terminal, for NH slimline fuse-switch disconnector, size 1-3/connection adaptor, (SV 9677XXX)
Feature drilling-free mounting on busbar systems with 185 mm center-to-center spacing. Business Impact: reduces installation time, minimizes on-site machining, and lowers commissioning risk. Application: panel integrations in NH slimline fuse-switch disconnector architectures. Feature compatibility with NH slimline fuse-switch disconnector, size 1-3 and connection adaptor. Business Impact: simplifies integration, reduces BOM complexity, and ensures consistent electrical connections. Application: switchgear assemblies in control panels. Feature robust material build with sheet steel, zinc-plated finish, and copper weight 0.051 kg per piece; weight per pack 0.447 kg. Business Impact: enhances durability and electrical conductivity while enabling predictable handling and shipping. Application: durable, reliable installations. Feature hazard-protection cover compatibility note. Business Impact: supports safe operation and compliant installations in hazard-prone busbar areas. Application: safe enclosure integration. Feature packaging and sustainability data: packs of 3, PCF 1.7 kg CO2 eq per pack (Cat B). Business Impact: improves logistics, reduces carbon footprint, and aligns with responsible procurement. Application: scalable stocking for large panel builds.
Get a Quick Quote for a Rittal 9677460
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9677460?
Enquire Now
FAQs
Yes. The SV 9677.460 is designed for NH slimline fuse-switch disconnector assemblies, size 1-3, with a connection adaptor option and mounting on busbars spaced 185 mm apart. It eliminates drilling and supports fast, reliable integration into standard switchgear configurations.
The terminal uses sheet steel that is zinc-plated with copper weight 0.051 kg per piece. Each pack weighs 0.447 kg and contains 3 pieces, enabling predictable handling and inventory planning for panel builds.
Yes, but it is only suitable for busbar systems that include a contact hazard protection cover (cover section, slotted). This ensures safe parallel installations and reduces exposure to live parts during maintenance.
The product aligns with ETIM 9 EC000001 and ECLASS 8.0 27141146 classifications. It is also cataloged with EAN 4028177705203 and customs tariff 73182900, supporting accurate procurement data and integration into ERP systems.
The drilling-free mounting, connector adaptor options, and 3-pack packaging reduce field labor and parts handling. Its durable material and optimized packaging lower lifecycle costs while improving safety and commissioning speed in standard NH slimline fuse-switch disconnector installations.
