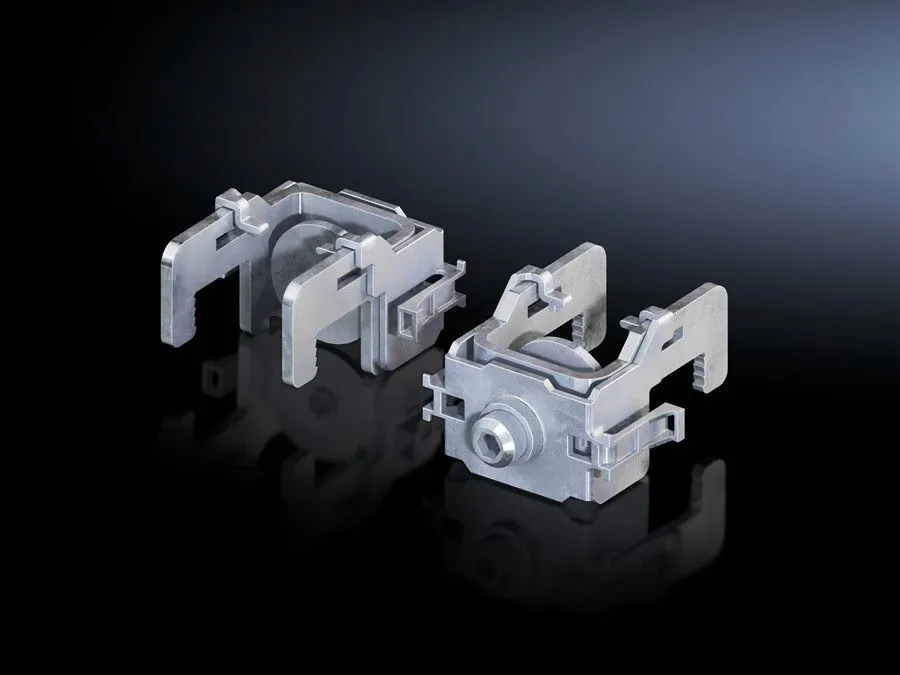

Rittal SV 9677.480 Busbar Terminal - 185 mm Spacing
Part Number: 9677480
Manufacturer
Rittal
Part number
9677480
Category
Alt Part Number
SV 9677.480
Quick Summary
Rittal SV 9677.480 busbar terminal is designed for mounting components on NH slimline busbar systems. The design eliminates drilling, reducing installation time and helping prevent misalignment in tight control cabinet layouts. For compliance and safety, it aligns with CE conformity expectations and typical IP-protected enclosure installations. With zinc-plated sheet steel and a compact 1-3 connection adaptor, you gain durable, maintenance-friendly mounting that scales with your panel needs. This solution supports fast, reliable distribution in power management projects while minimizing total cost of ownership. Compatible with standard 185 mm spacing, it simplifies wiring discipline and reduces field errors.
Product Information
Extended Description
9677480 Rittal: SV Busbar terminal, for NH slimline fuse-switch disconnector, size 1-3/connection adaptor, (SV 9677XXX)
Article number
SV 9677.480
Product description
For mounting components on busbar systems with 185 mm centre-to-centre spacing, no drilling required.
Material
Sheet steel
Surface finish
Zinc-plated
For size
1 - 3 and connection adaptor
Note
Can only be used on busbar systems without contact hazard protection cover (cover section, slotted)
Packs of
3 pc(s).
Weight/pack
0.297 kg
PCF per pack (cradle-to-gate)
1.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73182900
EAN
4028177705227
ETIM 9
EC000001
ECLASS 8.0
27141146
Product description
SV Busbar terminal, for NH slimline fuse-switch disconnector, size 1-3/connection adaptor, (SV 9677XXX)
Feature: 185 mm centre-to-centre spacing with no drilling required. Business Impact: Speeds installation, reduces risk of misalignment, and lowers tool wear in the field. Application: Ideal for NH slimline fuse-switch disconnector assemblies in control cabinets where routing room is limited. Feature: Sheet steel construction with zinc-plated finish. Business Impact: Delivers corrosion resistance and long-term reliability in harsh industrial environments, reducing maintenance cycles. Application: Suitable for panel mounting in power distribution gear that operates in challenging conditions. Feature: Size compatibility 1-3 with a connection adaptor. Business Impact: Improves flexibility, enabling multiple components to share a common mounting point and simplifying wiring layouts. Application: Useful in modular power assemblies where component density varies. Feature: Packs of three units; weight per pack 0.297 kg; cradle-to-gate PCF 1.1 kg CO2 eq (Cat B). Business Impact: Streamlines procurement, inventory management, and environmental reporting for sustainability programs. Application: Stocking for large-scale installations and OEM projects. Feature: Note on usage without contact hazard protection cover. Business Impact: Helps installers plan correctly to maintain safety standards while maximizing space efficiency. Application: Ensures correct application in enclosures designed without the cover section.
Get a Quick Quote for a Rittal 9677480
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9677480?
Enquire Now
FAQs
Yes. SV 9677.480 is specifically designed for NH slimline fuse-switch disconnector assemblies and uses 185 mm centre-to-centre spacing. It mounts directly onto busbar systems without drilling, simplifying installation and reducing setup errors in control cabinets.
The terminal is made from sheet steel with a zinc-plated finish for corrosion resistance. It comes in a 1-3 size with a connection adaptor, and is supplied in packs of three units, with a weight per pack of 0.297 kg. These specs support durable, long-life mounting in challenging environments.
Ideal for mounting components on busbar systems in control cabinets and distribution panels, especially where 185 mm spacing is required and drilling must be avoided. It works with NH slimline fuse-switch disconnector configurations and is compatible with the SV 9677XXX adapter family.
The data references CE conformity expectations and typical IP-rated enclosure practices for industrial components. While specific certifications aren’t listed, ensure your installation complies with local electrical codes and uses components rated for your enclosure and environment.
No-drill installation reduces field errors and speeds commissioning, lowering labor costs. Zinc-plated steel offers corrosion protection, extending service life in harsh environments. Pack sizing (three per pack) aids stocking and reduces procurement overhead, contributing to lower total cost of ownership over the project lifetime.
