Rittal SV 9677.511 SV System Attachment - 185 mm spacing
Part Number: 9677511
Manufacturer
Rittal
Part number
9677511
Category
Alt Part Number
SV 9677.511
Quick Summary
Rittal SV 9677.511 is a system attachment that enables busbar mounting inside VX enclosures. Engineers often struggle with precise spacing and secure attachment for busbars in tight cabinet spaces, risking misalignment and longer installation times. This solution supports CE conformity and common enclosure standards, while remaining compatible with the SV 9677500 busbar holder and delivering 185 mm centre-to-centre spacing. Designed for a VX enclosure width of 600 mm, the zinc-plated sheet steel attachment ships in a 1-piece pack and simplifies depth adjustment, reducing commissioning time and improving electrical reliability.
Product Information
Extended Description

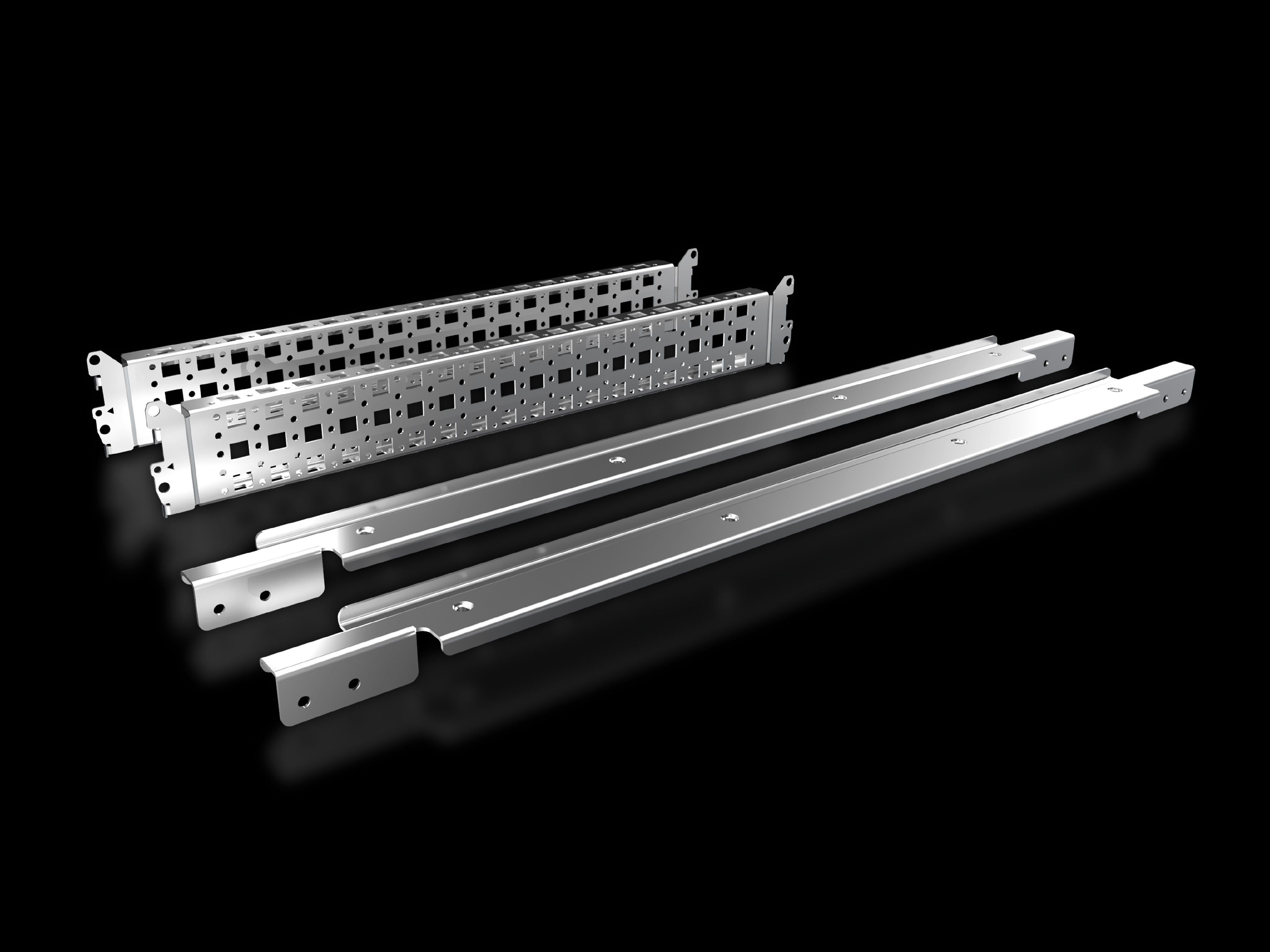

9677511 Rittal: SV system attachment for VX (W: 600 mm), for busbar holder SV 9677500
Article number
SV 9677.511
Product description
For attaching busbar systems with 185 mm centre-to-centre spacing inside the enclosure.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
2 system attachments (left/right) | 2 punched sections without mounting flanges | Assembly parts
Assembly instruction
For variable depth adjustment of the busbar system in the enclosure, the punched section with mounting flange 23 x 64 mm for VX (for the inner mounting level) is additionally required. Select according to the enclosure depth.
Packs of
1 pc(s).
Weight/pack
3.44 kg
PCF per pack (cradle-to-gate)
13.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177923324
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV system attachment for VX (W: 600 mm), for busbar holder SV 9677500
Feature: Two system attachments (left and right) with two punched sections and assembly parts provide a solid mounting base for busbars. Business Impact: Minimizes misalignment and reduces field rework, speeding up panel builds and improving first-pass install performance. Application: Ideal for VX enclosures using the SV 9677500 busbar holder, enabling reliable, repeatable installations. Feature: 185 mm centre-to-centre spacing standardizes busbar layouts, reducing risk of misalignment and improving thermal performance. Business Impact: Consistent wiring geometry supports traceability, easier verification, and faster warranty-safe configurations. Application: Industrial control panels where modular expansion is common. Feature: Material is sheet steel with a zinc-plated surface for corrosion resistance. Business Impact: Longer service life in indoor electrical cabinets, lower maintenance costs, and better uptime. Application: Rugged automation environments requiring durable enclosure accessories. Feature: Depth adjustability via punched sections and mounting flange for VX inner mounting level; select per enclosure depth. Business Impact: Flexible installation across varying cabinet depths without rework. Application: On-site retrofits and new builds with diverse VX depths. Feature: PCF per pack is 13.1 kg CO2 eq (Cat B); lightweight packaging and modular design support sustainability goals. Business Impact: Lower lifecycle footprint and easier sustainability reporting. Application: Green manufacturing programs and lifecycle assessments. Feature: Pack composition includes two system attachments, two punched sections without mounting flanges, and assembly parts, with a weight of 3.44 kg per pack. Business Impact: Simplified procurement, reduced shipping complexity, and faster stocking. Application: Inventory optimization for panel assembly teams.
