Rittal 9677531 SV System Attachment - 185 mm spacing
Part Number: 9677531
Manufacturer
Rittal
Part number
9677531
Category
Alt Part Number
SV 9677.531
Quick Summary
SV system attachment for VX enclosures secures busbars with 185 mm spacing inside. Installation teams often wrestle with misalignment and depth adjustments when retrofitting busbar systems. This solution aligns with ETIM EC001900 and ECLASS 27400613 classifications and uses zinc-plated sheet steel for durability and corrosion resistance. With this attachment, VX installations gain faster assembly, reduced error rates, scalable power distribution across control panels, and a clearer path to compliant, repeatable commissioning.
Product Information
Extended Description
9677531 Rittal: SV system attachment for VX (W: 1000 mm), for busbar holder SV 9677500
Article number
SV 9677.531
Product description
For attaching busbar systems with 185 mm centre-to-centre spacing inside the enclosure.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes

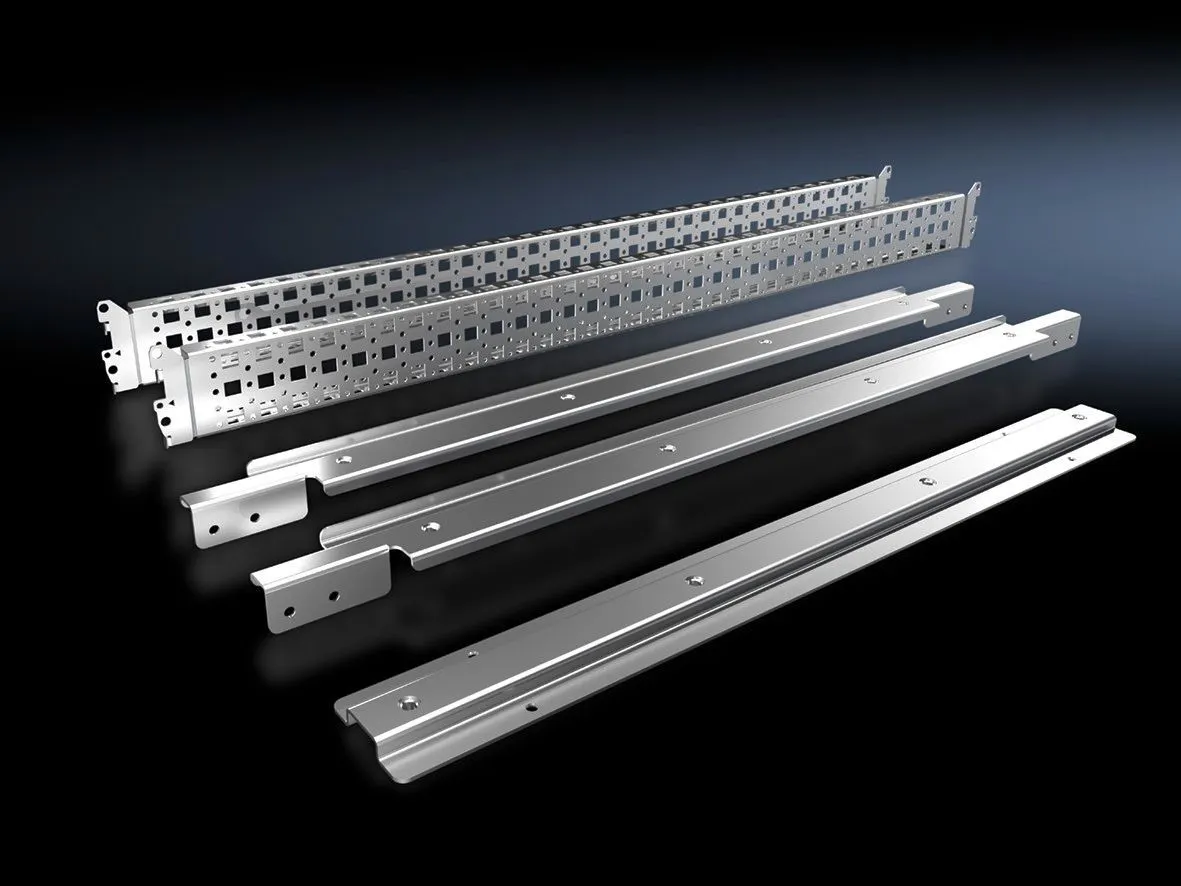

2 system attachments (left/right) | 2 punched sections without mounting flanges | Assembly parts | System attachment (centre)
Assembly instruction
For variable depth adjustment of the busbar system in the enclosure, the punched section with mounting flange 23 x 64 mm for VX (for the inner mounting level) is additionally required. Select according to the enclosure depth.
Packs of
1 pc(s).
Weight/pack
5.1 kg
PCF per pack (cradle-to-gate)
19.4 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177923300
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV system attachment for VX (W: 1000 mm), for busbar holder SV 9677500
Feature to business impact to application: The SV system attachment includes left/right system attachments, two punched sections without mounting flanges, assembly parts, and a central system attachment. This reduces procurement steps and accelerates installation, enabling faster commissioning of VX enclosures and more reliable busbar arrangement. The use of sheet steel with zinc-plated finish delivers durable, corrosion-resistant mounting hardware that withstands harsh industrial environments, improving long-term reliability in powered cabinets and control rows. The depth-adjustment capability through the 23 x 64 mm mounting flange punched sections enables precise busbar alignment without requiring custom fabrication, saving time during site modifications and minimizing field errors during retrofits. Compatibility with the SV 9677500 busbar holder ensures a cohesive, scalable path for expanding power distribution in evolving automation lines. Overall, these features translate to reduced downtime and lower lifecycle costs for panel builders and maintenance teams. The packaging of 1 pack (weight 5.1 kg) supports straightforward inventory management and predictable logistics for large projects.
Get a Quick Quote for a Rittal 9677531
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9677531?
Enquire Now
FAQs
The SV 9677.531 is designed for VX enclosures (W: 1000 mm) and pairs with the SV 9677500 busbar holder. The package includes two system attachments (left/right), two punched sections without mounting flanges, assembly parts, and a center system attachment. For depth adjustment, use the punched section 23 x 64 mm according to enclosure depth.
185 mm spacing aligns with standard busbar hardware, promoting uniform current distribution and reduced mechanical stress. It simplifies layout inside the VX enclosure, supports quick, repeatable mounting with fixed side attachments plus a central piece, and minimizes rework during commissioning, improving overall installation efficiency.
Delivery includes 2 system attachments (left/right), 2 punched sections without mounting flanges, assembly parts, and a central system attachment for VX installations. The depth-adjustment capability is achieved via the 23 x 64 mm mounting flange sections, which you select based on enclosure depth to ensure precise alignment.
The product aligns with ETIM 9 EC001900 and ECLASS 8.0 27400613 classifications. It carries an EAN of 4028177923300 and a customs tariff number of 73269098, supporting accurate procurement, data management, and regulatory compliance for European panel builders.
Pack size is 1, with a weight of 5.1 kg per pack. PCF per pack is 19.4 kg CO2 eq (Cat B), indicating an environmental footprint based on cradle-to-gate analysis. These details support sustainability reporting and supplier qualification efforts for larger automation projects.
