Rittal SV 9677.540 Busbar Attachment - 185 mm spacing
Part Number: 9677540
Manufacturer
Rittal
Part number
9677540
Category
Alt Part Number
SV 9677.540
Quick Summary
SV 9677.540 busbar attachment enables secure busbar support in TS/SE enclosures for reliable electrical distribution. Installing busbar systems at precise depths is challenging when hardware mismatches or enclosure depths vary. This SV 9677.540 solution aligns with ETIM EC001900 and ECLASS 27400613 classifications, helping purchasing and engineering teams source consistently. In practice you gain installation flexibility and reduced lead times, with clear depth adjustment guidance and center attachment compatibility. Designed for 185 mm centre distance in TS/SE enclosures, the kit includes both left and right system attachments and a centre system attachment. Its zinc-plated sheet steel construction ensures durability in demanding industrial environments while the 5.78 kg pack supports stable mounting without excessive weight. With the included assembly parts and clear instructions for depth adjustment, installation reduces commissioning time and supports scalable enclosure designs.
Product Information
Extended Description

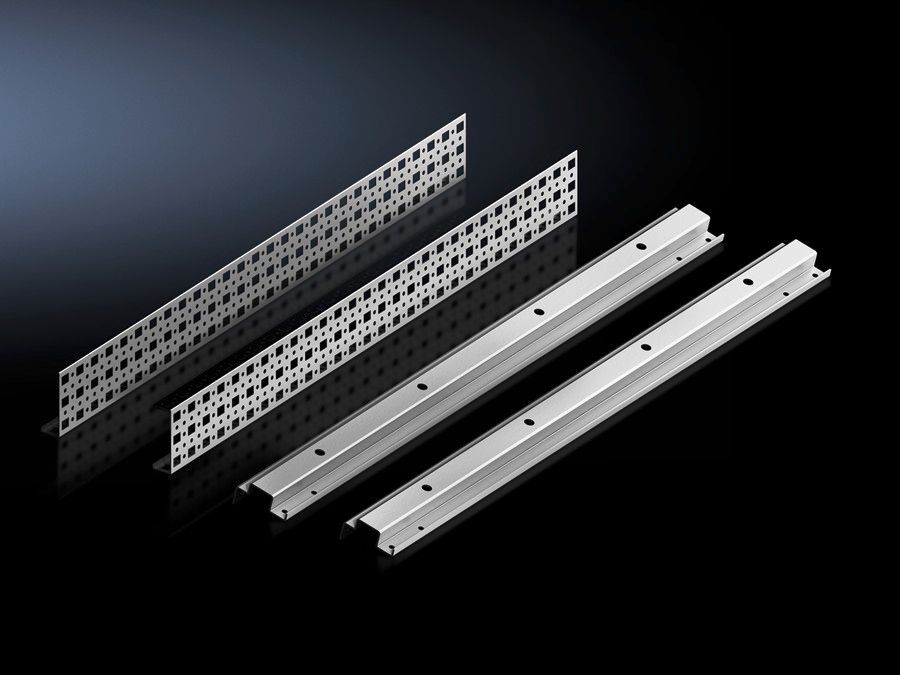

9677540 Rittal: SV System attachment, for busbar support, 185 mm centre distance, for TS, SE (B: 1200 mm)
Article number
SV 9677.540
Product description
For attaching busbar systems with 185 mm centre-to-centre spacing in TS/SE enclosures.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
2 system attachments (left/right) | 2 punched sections without mounting flanges | Assembly parts | System attachment (centre)
Assembly instruction
For variable depth adjustment of the busbar system in the enclosure, the TS punched section with mounting flange 17 x 73 mm (for the outer mounting level) is additionally required. Select according to the enclosure depth.
Packs of
1 pc(s).
Weight/pack
5.78 kg
Customs tariff number
83024900
EAN
4028177705364
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV System attachment, for busbar support, 185 mm centre distance, for TS, SE (B: 1200 mm)
Feature 185 mm centre distance design → Business Impact Standardized busbar spacing reduces custom fabrication and matches common TS/SE enclosure layouts → Application TS/SE enclosures requiring precise busbar alignment. Feature Includes left/right attachments, two punched sections without mounting flanges, and a central attachment → Business Impact Streamlines sourcing and assembly, minimizing vendor calls and inventory variation → Application Installer-friendly kits for quick, predictable mounting in mid-size switchgear. Feature Material and finish: sheet steel with zinc plating → Business Impact Corrosion resistance and robust mechanicals extend service life in harsh environments → Application Ideal for industrial environments with frequent temperature and humidity exposure. Feature Depth-adjustment guidance via outer mounting flange option (17 x 73 mm) → Business Impact Enables variable depth mounting to accommodate diverse enclosure depths → Application Supports scalable designs without reordering multiple hardware sets. Feature Pack weight and contents (5.78 kg per pack, 1 pack) → Business Impact Manageable handling and predictable shipping costs, improving job-site logistics → Application Suitable for single-to-small-batch deployments. Feature Compliance and classification alignment (ETIM EC001900 and ECLASS 27400613) → Business Impact Simplifies procurement and cross-system data management → Application Beneficial for global sourcing and ERP integration.
