Rittal SV 9677.560 Contact Hazard Cover - EC000775
Part Number: 9677560
Manufacturer
Rittal
Part number
9677560
Category
Alt Part Number
SV 9677.560
Quick Summary
Rittal SV 9677.560 contact hazard protection cover protects the busbar assembly at the rear and front, specifically for TS and SE enclosures with an 800 mm width. In maintenance windows, technicians face risk from exposed conductors and sharp edges, which can cause injuries and costly downtime if not properly shielded. This accessory is documented within ETIM 9 EC000775 and ECLASS 8.0 27142116 classifications, supporting consistent procurement data and interoperability across systems. Color is RAL 7035 and the kit includes base trays and slot‑style cover sections, enabling a fast, error‑free install with minimal tools. Overall, it improves safety, reduces downtime, and aligns with common industry data standards while offering predictable sizing for SV 9677XXX busbar arrangements.
Product Information
Extended Description
9677560 Rittal: SV Contact hazard protection cover, for busbar system SV 9677XXX, for TS, SE (W: 800 mm)
Article number
SV 9677.560
Product description
For contact hazard protection of the busbar assembly at the rear and front.
Material
Base tray: Polyphenylene ether (PPE) | End section: Polyphenylene ether (PPE) | Cover section: Polyamide | Centre cover: Polyamide
Colour
RAL 7035
Supply includes

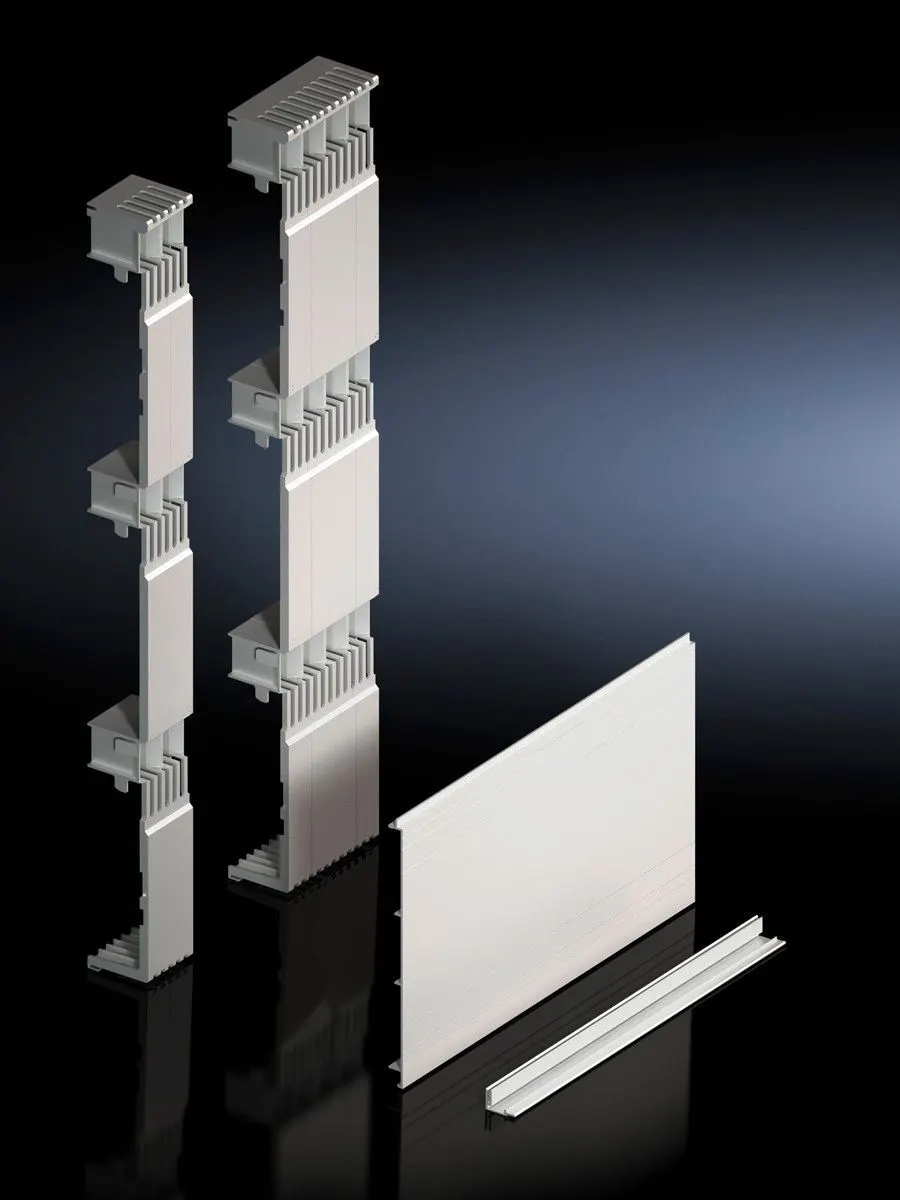

Cover section, slotted, 50 mm wide | Cover sections, slotted, 100 mm wide | Base trays | Trim sections
Packs of
1 pc(s).
Weight/pack
3.61 kg
Customs tariff number
39269097
EAN
4028177705425
ETIM 9
EC000775
ECLASS 8.0
27142116
Product description
SV Contact hazard protection cover, for busbar system SV 9677XXX, for TS, SE (W: 800 mm)
Feature: Base tray and end sections are manufactured from PPE with cover sections in PA. Business Impact: Delivers high dielectric strength and durable shielding, reducing the risk of arcing and wear in live panels. Application: Fits SV 9677XXX busbar systems in TS/SE cabinets (W: 800 mm), improving long-term reliability. Feature: Supply includes slotted cover sections of 50 mm and 100 mm widths, base trays, and trim sections. Business Impact: Provides flexible, fast configuration with fewer part numbers to manage, cutting installation time by minutes per panel. Application: Ideal for field adaptations to varying busbar layouts in industrial cabinets. Feature: Weight per pack 3.61 kg and single‑pack packaging. Business Impact: Safer on-site handling and simpler logistics, reducing injury risk and streamlining stock management. Application: Suitable for turn-key installations and routine maintenance crews. Feature: Color RAL 7035 for standardized visibility. Business Impact: Aids quick identification and consistent appearance across equipment fleets, supporting safety audits. Application: Effective in dense switchgear rooms and OEM-standard color schemes. Feature: ETIM 9 EC000775 and ECLASS 8.0 27142116 alignment. Business Impact: Accelerates procurement, improves cataloging accuracy, and enables seamless cross-supplier comparisons. Application: Widely applicable across European facilities and data centers. Feature: Packaging and identifiers such as EAN 4028177705425 and customs tariff 39269097. Business Impact: Facilitates regulatory-compliant import, accurate invoicing, and traceability. Application: Useful for global procurement and inventory management.
Get a Quick Quote for a Rittal 9677560
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9677560?
Enquire Now
FAQs
SV 9677.560 is designed for TS and SE enclosures with an 800 mm width and works with the SV 9677XXX busbar layout. It ships as a complete kit including base trays, slot‑style cover sections (50 mm and 100 mm), and trim pieces, enabling a straightforward retrofit. Plan for a single-pack per assembly, with an approximate weight of 3.61 kg per pack to ease handling during mounting and alignment within the cabinet.
Yes. The product is cataloged under ETIM 9 EC000775 and ECLASS 8.0 27142116, which ensures consistent data for procurement systems and cross‑supplier comparisons. This alignment helps engineers and buyers verify compatibility with other PPE components and PA covers used in Rittal and similar busbar configurations, supporting accurate specification in bill of materials.
SV 9677.560 is intended for busbar systems SV 9677XXX in TS and SE enclosures with a width of 800 mm. The kit includes 50 mm and 100 mm wide cover sections, base trays, and trim sections to adapt to different busbar layouts within modular cabinets. Ensure the enclosure width and busbar geometry match the 800 mm W specification for a secure fit.
The product data emphasizes ETIM 9 EC000775 and ECLASS 8.0 27142116 classifications as compliance references, with PPE-based material and PA covers contributing to safety performance. While explicit CE or IP ratings are not listed in the data, the design prioritizes personal protection, dielectric integrity, and compatibility with standard European cabinet practices.
The cover reduces maintenance downtime by protecting busbar interfaces during servicing, minimizing unexpected outages. Its modular 50/100 mm wide slots and included trim sections accelerate installation and field adjustments, lowering labor time. With durable PPE/PA materials and standardized color, the solution also supports longer service intervals, predictable stock management, and better safety audit outcomes.
