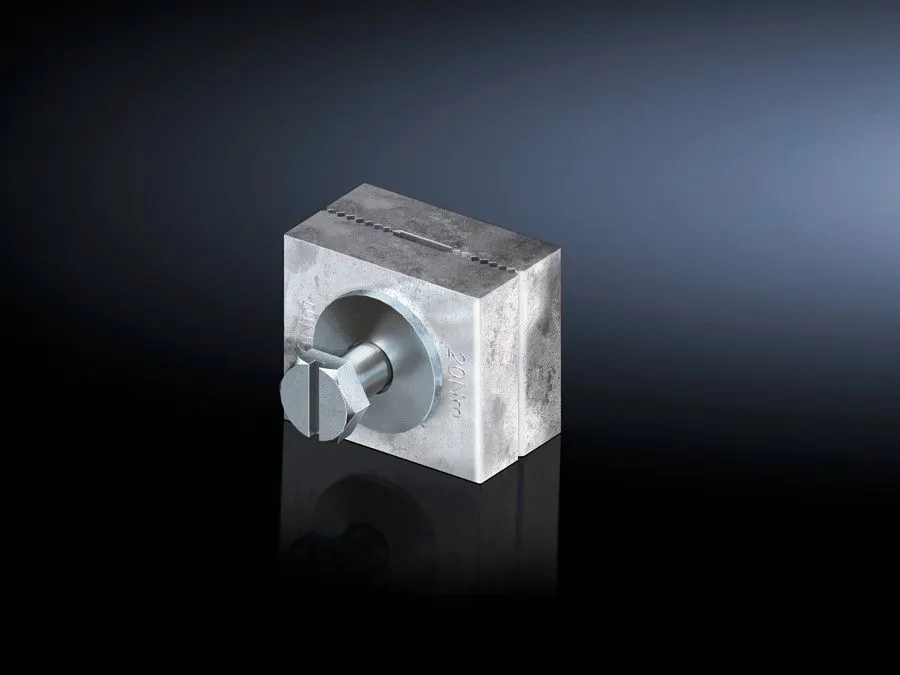

Rittal SV 9677.610 Busbar Connector - Tin-plated
Part Number: 9677610
Manufacturer
Rittal
Part number
9677610
Category
Alt Part Number
SV 9677.610
Quick Summary
The Rittal SV 9677.610 Busbar Connector connects rectangular busbars quickly and reliably in electrical enclosures without drilling. This solution streamlines panel assembly by eliminating the need for pre-drilled holes, reducing installation time and potential misalignment. In the data center and industrial environments where space is tight and uptime matters, a compact 40 mm long connector provides a clean, low-impedance connection. The product aligns with industry classification standards such as ETIM EC000713 and ECLASS 27400606, and uses tin-plated E-Cu for durable, corrosion-resistant contact surfaces. As a result, customers benefit from faster assembly, fewer tooling requirements, and improved traceability across parts and BOMs, while maintaining high reliability.
Product Information
Extended Description
9677610 Rittal: SV Busbar connector, for E-Cu 40/80/100x10 mm, L: 40 mm
Article number
SV 9677.610
Product description
For connecting rectangular busbars, no drilling required.
Material
E-Cu
Surface finish
Tin-plated
Length
40 mm
For busbar dimensions (mm) / Required quantity per busbar
40 x 10Â /Â 1 | 80 x 10Â /Â 2 | 100 x 10Â /Â 1
Note
If using a 100 x 10 mm busbar, one 9677.610 and one 9677.620 are required
To fit busbars
40 x 10 mm
Packs of
1 pc(s).
Weight/pack
0.49 kg
Copper weight (kg per piece)
0.407
Customs tariff number
74071000
EAN
4028177705388
ETIM 9
EC000713
ECLASS 8.0
27400606
Product description
SV Busbar connector, for E-Cu 40/80/100x10 mm, L: 40 mm
Feature: Tin-plated E-Cu contact surface provides durable, low-resistance electrical connection with corrosion resistance. Business Impact: Improves long-term reliability and reduces maintenance; Application: Ideal for high-density power distribution in control cabinets. Feature: 40 mm length that fits 40 x 10, 80 x 10 and 100 x 10 mm busbars with clear quantity guidance. Business Impact: Flexible mounting, lower stocking variety, and reduced assembly steps; Application: Works across common Rittal busbar configurations. Feature: No drilling required for busbar connections. Business Impact: Speeds installation and minimizes alignment errors; Application: Retrofit projects and new panel builds. Feature: Pack of 1 piece with 0.49 kg per pack and 0.407 kg copper weight. Business Impact: Predictable logistics and BOM planning; Application: Procurement and inventory control for automation projects. Feature: Material and finish specification (E-Cu, tin-plated) ensures high conductivity and protection. Business Impact: Optimizes electrical performance and longevity under operational conditions; Application: Power distribution in enclosures handling varied environmental factors.
Get a Quick Quote for a Rittal 9677610
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9677610?
Enquire Now
FAQs
The SV 9677.610 is designed to fit E-Cu busbars sized 40 x 10 mm and is compatible with 40x10, 80x10, and 100x10 configurations. For 100x10 busbars, a second component (9677.620) is required. Mounting is drill-free, simplifying retrofit projects and minimizing risk of misalignment during assembly.
The connector uses tin-plated E-Cu for the contact surface, delivering reliable conductivity and corrosion resistance. Each pack contains 1 piece with a weight of 0.49 kg per pack and a copper weight of 0.407 kg per piece, supporting straightforward BOM calculations and logistics.
Yes. The 40 mm length and 40x10 to 100x10 busbar compatibility make it suitable for compact power distribution within industrial control panels and automation cabinets, enabling clean, drill-free connections and reduced assembly time in dense layouts.
The product aligns with standard classification codes ETIM 9 EC000713 and ECLASS 8.0 27400606, aiding procurement and cataloging. The data set does not specify typical safety certifications such as CE, SIL, or IP ratings, so verify your project requirements if those marks are mandatory.
By eliminating drilling steps and enabling a precise, consistent connection, the SV 9677.610 reduces installation time and minimizes error-related rework. Its tin-plated copper construction delivers durable performance, lowering maintenance costs and improving BOM accuracy for faster project delivery.
