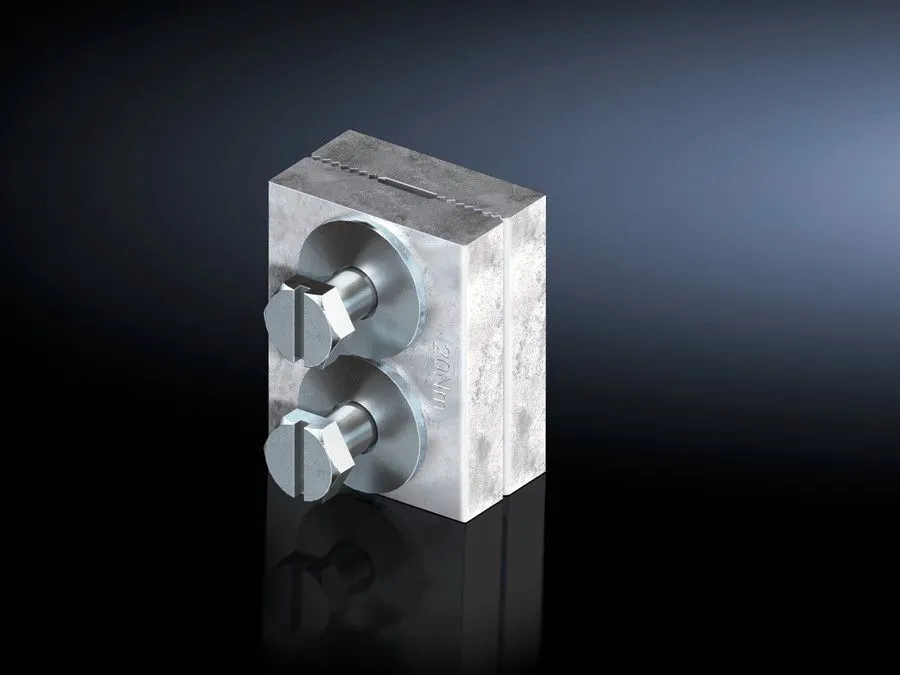

Rittal SV 9677.620 Busbar Connector - Tin-plated E-Cu, 60 mm
Part Number: 9677620
Manufacturer
Rittal
Part number
9677620
Category
Alt Part Number
SV 9677.620
Quick Summary
Rittal SV 9677.620 Busbar is a tin-plated copper connector designed to join rectangular busbars without drilling. This approach reduces the time and effort required for panel assembly, while eliminating the risk of misalignment during installation. With ETIM 9 EC000713 and ECLASS 8.0 27400606 classifications, it aligns with global cataloging standards, and the tin-plated E-Cu offers reliable conductivity. Designed for electrical switchgear, panel builders, and OEMs, it supports scalable deployments in control cabinets. The 60 mm length keeps harnesses tidy, and the design enables multiple connectors along broader busbar rows. This combination delivers faster builds, clearer BOMs, and long-term cost savings.
Product Information
Extended Description
9677620 Rittal: SV Busbar connector, for E-Cu 60/100/120x10 mm, L: 60 mm
Article number
SV 9677.620
Product description
For connecting rectangular busbars, no drilling required.
Material
E-Cu
Surface finish
Tin-plated
Length
60 mm
For busbar dimensions (mm) / Required quantity per busbar
60 x 10Â /Â 1 | 100 x 10Â /Â 1 | 120 x 10Â /Â 2
Note
If using a 100 x 10 mm busbar, one 9677.610 and one 9677.620 are required
To fit busbars
60 x 10 mm
Packs of
1 pc(s).
Weight/pack
0.72 kg
Copper weight (kg per piece)
0.602
Customs tariff number
74071000
EAN
4028177705395
ETIM 9
EC000713
ECLASS 8.0
27400606
Product description
SV Busbar connector, for E-Cu 60/100/120x10 mm, L: 60 mm
Feature → Business Impact → Application: No drilling required, enabling drilling-free connections that reduce installation time and improve conductor alignment in 60x10 mm busbar configurations. Application: ideal for control panels and switchgear where fast wiring and reproducible results matter. Feature → Material and finish: E-Cu with tin plating provides high conductivity and corrosion resistance, delivering reliable electrical performance in demanding environments. Application: suitable for rapid assembly in OEM panel lines and in enclosed switchgear. Feature → 60 mm length: compact footprint that fits tight panel layouts and allows multiple connectors along a busbar run. Application: densely populated control cabinets with 60x10 mm busbars. Feature → Compatibility notes: supports busbars 60x10, with 1 piece per 60x10 busbar, or 2 pieces for 120x10 per the product spec. Application: ensures predictable installation planning and BOM accuracy. Feature → Documentation and classification: ETIM 9 EC000713 and ECLASS 8.0 27400606 integration improves catalog searchability and supplier onboarding. Application: simplifies procurement processes across global supply chains.
