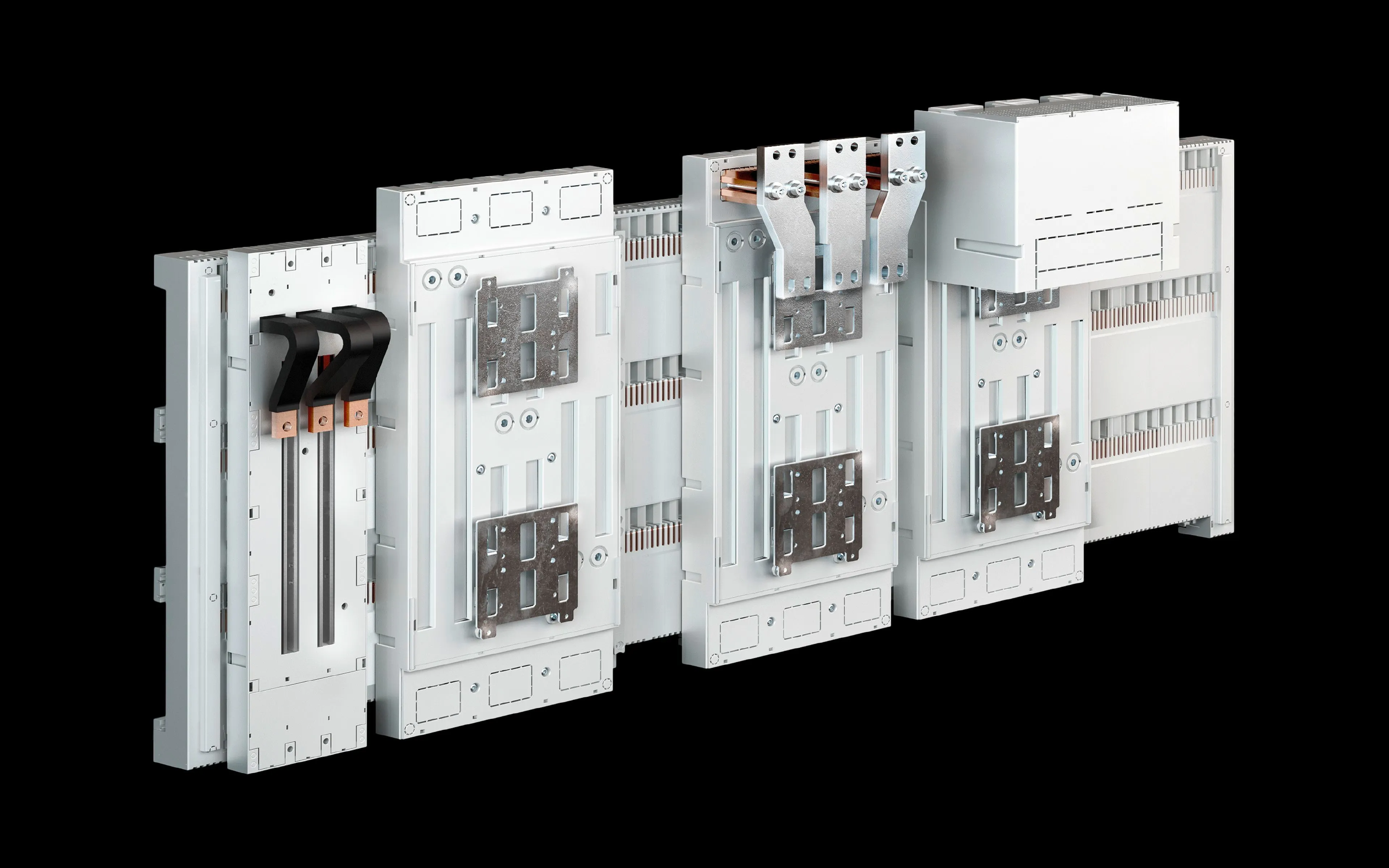

Rittal SV 9677.710 Adaptor – 3P, 1600 A, UL 94‑V0
Part Number: 9677710
Manufacturer
Rittal
Part number
9677710
Category
Alt Part Number
SV 9677.710
Quick Summary
Rittal SV 9677.710 Adaptor enables 1600 A, 690 V 3‑pole connections for 185 mm busbar centers. Installers often face mounting drift and unsafe cabling when upgrading switchgear, leading to downtime and quality concerns. The unit uses UL 94‑V0 fire‑rated polyamide and is designed to fit ABB Tmax T7 systems as well as Siemens, Eaton, and Schneider Electric breakers, ensuring compliant, durable bonds. With a compact footprint and clear part numbers, this adaptor helps procurement streamline sourcing, and field teams accelerate commissioning while maintaining safety and traceability. This translates to reduced project risk, faster times-to-value, and clearer billable milestones for engineering, procurement, and maintenance teams.
Product Information
Extended Description
9677710 Rittal: SV Component adaptor, 1600 A, 690 V, 3-pole, 185 mm, clamping attachment
Article number
SV 9677.710
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
For bar systems with centre-to-centre spacing
185 mm
Cable outlet
Bottom
Installation type
Clamping attachment
Number of poles
3-pole
Rated current max.
1,600 A
Rated operating voltage
690 V, 3~
Note
Cable outlet: Switch outlet or as outgoing cable from the switchgear
Dimensions
Width: 300 mm | Height: 652 mm
To fit busbars
Height: 10 mm
To fit manufacturer (model)
ABB (Tmax T7 - 1250 A/1600 A)
Packs of
1 pc(s).
Weight/pack
20.9 kg
Copper weight (kg per piece)
14.68
Customs tariff number
85369095
EAN
4028177707078
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV Component adaptor, 1600 A, 690 V, 3-pole, 185 mm, clamping attachment
Feature: High-current adaptor rated at 1,600 A and 690 V for 3‑pole configurations. Business Impact: Delivers robust current capability with minimal voltage drop, enabling safe, continuous operation in demanding switchgear environments. Application: Ideal for 185 mm center-to-center busbar systems and for retrofits involving ABB Tmax T7 and similar 3‑pole breakers, reducing redesign work. Feature: Bottom cable outlet and clamping attachment. Business Impact: Simplifies cable routing and secure mounting, reducing fault-prone splices and installation time. Application: Compatible with standard cable exits from the switchgear, improving maintainability in busy distribution racks. Feature: UL 94‑V0 fire‑rated polyamide material. Business Impact: Improves enclosure safety and helps meet fire-safety standards in control rooms and industrial environments. Application: Suitable for environments demanding reliable flame retardancy without sacrificing mechanical strength. Feature: Precise dimensions — width 300 mm, height 652 mm, designed for 185 mm spacing; 10 mm busbar fit. Business Impact: Ensures alignment with existing busbars and mounting rails, minimizing modification work and downtime. Application: Particularly beneficial for retrofits and new builds with compact footprints in 3P switchgear. Feature: Broad compatibility and documented support. Business Impact: Reduces procurement risk with cross-brand compatibility (ABB, Siemens, Eaton, Schneider Electric) and quick access to installation PDFs. Application: Field service and commissioning workflows benefit from ready reference materials, including 9677710 PDFs and multilingual instructions. Feature: Weight and packaging — weight per pack 20.9 kg; copper weight 14.68 kg. Business Impact: Aids logistics planning, BOM accuracy, and cost estimation for high-current assemblies. Application: Essential data for project budgeting and shipping considerations in large switchgear installs.
Get a Quick Quote for a Rittal 9677710
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9677710?
Enquire Now
FAQs
To install, align the adaptor to the 185 mm busbar center spacing and seat the clamping attachment against the bar system. Tighten the clamps to secure the unit, then route the bottom cable outlet to the outgoing conductors, ensuring clean routing and minimal bend radius. Verify electrical continuity and mechanical stability before energizing the circuit.
Electrical ratings are 1,600 A maximum current and 690 V operating voltage, three-pole construction. The unit supports 3‑phase operation and is designed for high-current switchgear, with copper weight about 14.68 kg per piece and total pack weight around 20.9 kg. Install per enclosure clearances and conductor routing standards.
Yes. SV 9677.710 is designed to fit ABB Tmax T7 configurations up to 1600 A and is compatible with other leading brands’ busbar systems, including Siemens, Eaton, and Schneider Electric. Verify model compatibility against catalog numbers and confirm the bar profile (height ~10 mm) before installation.
Safety and compliance are addressed by UL 94‑V0 fire‑rated polyamide material. The product data also references industry classifications such as ETIM EC001531 and ECLASS 27370304. Ensure panel enclosure standards and local electrical codes are met during retrofit or new builds to maintain safety compliance.
Documentation includes downloadable PDFs and multilingual instructions: 9677710 PDF, DE/EN/FR, EN/FR/RU guides, plus installation notes and product descriptions. Access the Downloads group for installation steps, compatibility notes with ABB Tmax T7, and cross-brand procurement references to support BOM accuracy and field service planning.
