Rittal SV Component adaptor 9677.715 - UL94-V0
Part Number: 9677715
Manufacturer
Rittal
Part number
9677715
Category
Alt Part Number
SV 9677.715
Quick Summary
SV Component adaptor is a high-current connector accessory for panel builders and switchgear applications, designed to pair ABB, Eaton, Schneider Electric, and Siemens breakers with 185 mm centre-to-centre busbar systems. Engineers often struggle with cross-brand compatibility and safe, tidy cable routing in compact switchgear environments. This 3-pole adaptor is rated up to 1,600 A at 690 V and constructed from fire-protected polyamide (UL94-V0), aligning with industry classifications for procurement consistency. Its 185 mm spacing, bottom cable outlet, and screw-attachment design simplify integration into existing layouts, ensuring a robust, scalable solution. In practice, it accelerates cabinet assembly, reduces part variety, and enhances safety across diverse panel configurations while delivering reliable performance in demanding environments.
Product Information
Extended Description

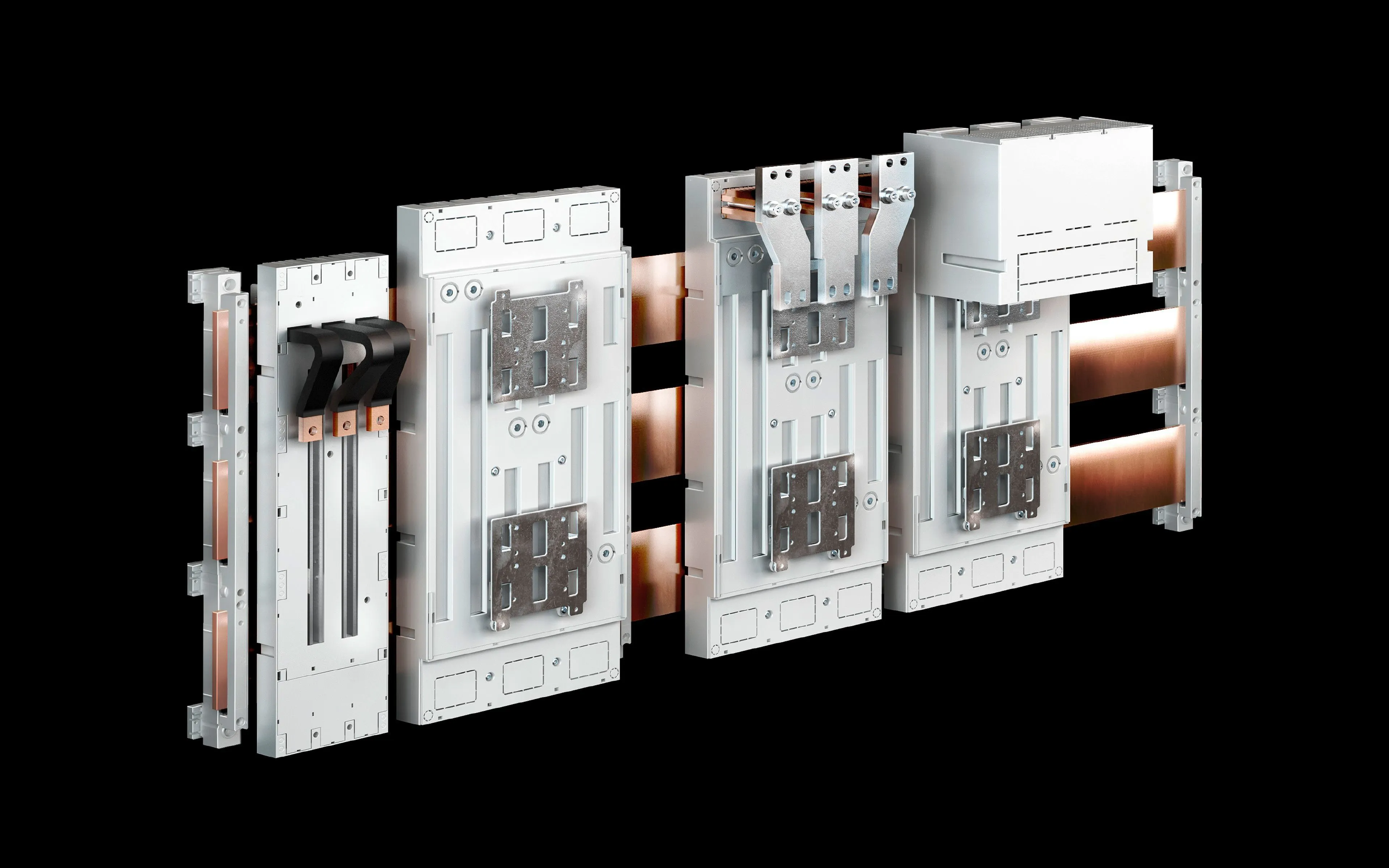

9677715 Rittal: SV Component adaptor, 1600 A, 690 V, 3-pole, 185 mm, screw attachment
Article number
SV 9677.715
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
For bar systems with centre-to-centre spacing
185 mm
Cable outlet
Bottom
Installation type
Screw attachment
Number of poles
3-pole
Rated current max.
1,600 A
Rated operating voltage
690 V, 3~
Note
Cable outlet: Switch outlet or as outgoing cable from the switchgear
Dimensions
Width: 300 mm | Height: 652 mm
To fit busbars
Height: 10 mm
To fit manufacturer (model)
ABB (Tmax T7 - 1250 A/1600 A)
Packs of
1 pc(s).
Weight/pack
20.1 kg
Copper weight (kg per piece)
14.749
Customs tariff number
85369095
EAN
4028177707061
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV Component adaptor, 1600 A, 690 V, 3-pole, 185 mm, screw attachment
Feature: Cross-brand compatibility with ABB, Eaton, Schneider Electric and Siemens breakers. Business impact: Streamlines procurement and reduces stocking complexity, saving time and cost in project logistics. Application: Ideal for mixed-brand distribution panels and retrofit projects. Feature: 3-pole, 1,600 A rated current. Business impact: Supports high-capacity feeders with fewer components, improving uptime and reducing junction risk. Application: Main distribution sections in MCCs and switchgear. Feature: Rated operating voltage 690 V (3-phase). Business impact: Enables safe integration into standard industrial power networks, lowering compliance concerns. Application: Control gear and busbar connections in heavy industry. Feature: Bottom cable outlet and screw attachment. Business impact: Optimizes cable routing and secure mounting, reducing field errors. Application: Upright panel installations with tight envelope constraints. Feature: Fire-protective polyamide (UL94-V0). Business impact: Enhances safety compliance and reduces risk of flame propagation. Application: All exposed cable junctions in high- current assemblies. Feature: Dimensions width 300 mm, height 652 mm; busbar fit height 10 mm. Business impact: Predictable footprint for layout planning and cabinet manufacturing. Application: New builds and retrofits with strict space budgets. Feature: ABB Tmax T7 compatibility (1250–1600 A). Business impact: Eliminates need for custom adapters, shortening lead times. Application: Tmax-based switchgear ecosystems.
Get a Quick Quote for a Rittal 9677715
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9677715?
Enquire Now
FAQs
The SV Component adaptor is designed for bar systems with 185 mm centre-to-centre spacing and screw-attached mounting, making it ideal for high-current panel and switchgear assemblies. It supports 3-pole configurations and is compatible with ABB, Eaton, Schneider Electric, and Siemens breakers to create a unified, scalable distribution solution.
Key specifications include 3-pole configuration, rated current max of 1,600 A, and rated operating voltage of 690 V, 3-phase. The cable outlet is bottom, and the device uses screw attachment for secure mounting. The unit is designed for busbar systems with 185 mm spacing and supports 1600 A feeders in demanding industrial environments.
Yes. The SV 9677.715 is designed to fit ABB Tmax T7 assemblies (1250 A/1600 A) and is suitable for parallel use with other major brands by matching 185 mm busbar spacing and 3-pole configurations. This cross-brand compatibility streamlines cabinet design and reduces the need for multiple bespoke adapters.
The adaptor uses fire-protected polyamide material with UL94-V0 certification for safety. It is also catalogued in industry classifications such as ETIM EC001531 and ECLASS 27370304, which support accurate data sharing, procurement workflows, and consistent engineering documentation.
Installation benefits include bottom cable routing, secure screw attachment, and a predictable footprint (300 mm width by 652 mm height) that suits constrained spaces. ROI advantages arise from cross-brand compatibility, reduced part variety, faster cabinet assembly, and improved safety—especially in high-current switchgear environments up to 1,600 A at 690 V.
