Rittal SV 9677.730 Connector Kit - ABB Tmax T7 800A/1000A compatibility
Part Number: 9677730
Manufacturer
Rittal
Part number
9677730
Category
Alt Part Number
SV 9677.730
Quick Summary
Rittal SV 9677.730 Connector Kit is a preassembled 3-pole MCCB connection kit for switchgear installations. This kit minimizes wiring errors and on-site copper handling, addressing common challenges engineers face during assembly and commissioning. Critical standards include ETIM 9 EC001900 and ECLASS 8.0 27400613, which help ensure consistent data interchange and procurement workflows. By delivering compatibility with ABB Tmax and Schneider NS MCCBs, the kit simplifies bill-of-materials management and reduces part diversity. In turn, this supports faster commissioning, lower total cost of ownership, and more predictable maintenance cycles, while enabling reliable high-current connections in industrial control panels.
Product Information
Extended Description
9677730 Rittal: SV Connector kit, for component adaptor, SV 9677700/705, (ABB Tmax, Schneider NS)
Article number
SV 9677.730
Product description

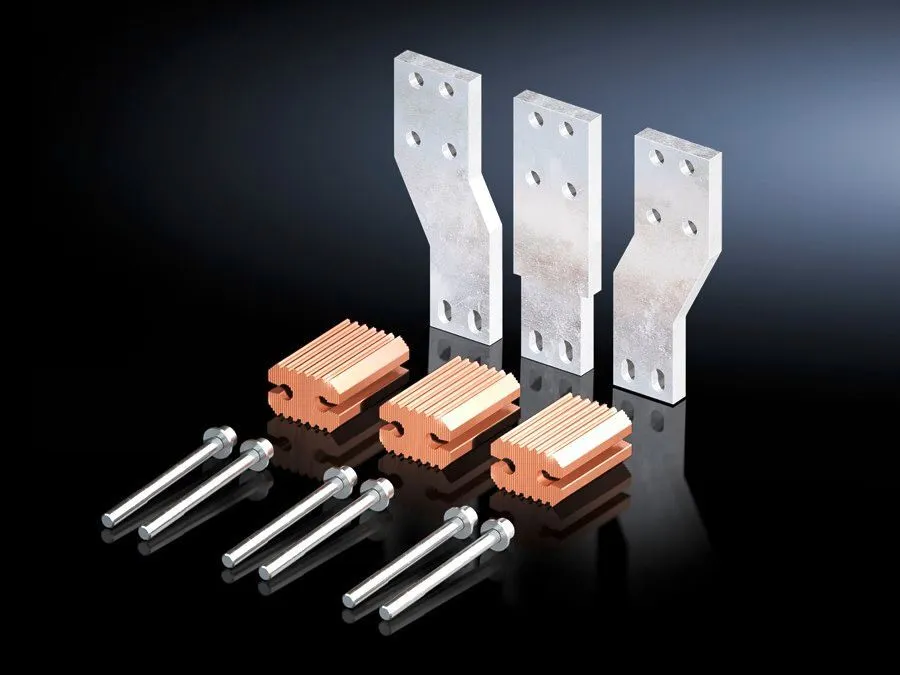

Preassembled connector kit for common brands of moulded-case circuit-breaker (MCCB). For electrical connection between the switch and the component adaptor (3-pole).
Material
E-Cu
Supply includes
Assembly parts
To fit Model No.
9677.700
To fit manufacturer (model)
ABB (Tmax T7 - 800 A/1000 A)
Packs of
1 pc(s).
Weight/pack
8.71 kg
Copper weight (kg per piece)
8.707
Customs tariff number
74198090
EAN
4028177707054
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Connector kit, for component adaptor, SV 9677700/705, (ABB Tmax, Schneider NS)
The SV 9677.730 is a preassembled connector kit designed for 3-pole MCCB connections, reducing field wiring time and the risk of misconnections during switchgear assembly. This translates to quicker commissioning and lower labour costs, especially in high-volume panel builds where consistency matters. Material is E-Cu, delivering low electrical resistance and improved current carrying capability, which reduces voltage drop in medium- and high-current MCCB applications. Weight per pack is 8.71 kg, with 1 piece per pack, simplifying handling, shipping, and inventory planning for maintenance teams on-site. It is compatible to fit Model No. 9677.700 and ABB Tmax T7 800 A/1000 A MCCBs, minimizing part matching errors and spare-part proliferation. The supply includes assembly parts, enabling fast procurement and straightforward upgrade cycles. Classified under ETIM 9 EC001900 and ECLASS 8.0 27400613, the kit aligns with common ERP and procurement workflows to streamline data consistency across systems.
Get a Quick Quote for a Rittal 9677730
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9677730?
Enquire Now
FAQs
The SV 9677.730 is designed for 3-pole MCCB connections and fits ABB Tmax T7 models at 800 A and 1000 A, with the SV 9677700/705 component adaptor. Installation requires standard panel mounting practices and the supplied assembly parts; no additional adapters are needed for compatible MCCBs, enabling a straightforward retrofit or new build.
Key specs include material of construction as E-Cu, weight per piece 8.707 kg, weight per pack 8.71 kg, and packs of 1. It is intended to fit Model No. 9677.700 and MCCBs such as ABB Tmax T7 at 800 A/1000 A, with EAN 4028177707054 and customs tariff 74198090.
The product aligns with ETIM 9 EC001900 and ECLASS 8.0 27400613, ensuring consistent data across procurement and ERP systems. While explicit CE or IP certifications aren’t listed in the datasheet, the classifications support standardized buying and engineering documentation for industrial panels.
Expect faster installation due to preassembled components, reduced risk of copper wiring errors, and improved connection reliability from high-conductivity E-Cu. The kit also simplifies BOM management by providing a single, compatible solution for ABB Tmax and Schneider NS MCCBs, lowering inventory complexity and maintenance downtime.
The supply comprises assembly parts for the connector kit and is designed to fit model 9677.700; it comes as a single 1-piece pack with 8.71 kg total weight. This reduces procurement mix, accelerates lead times, and supports easier spares planning for ongoing maintenance and future upgrades.
