Rittal 9677792 SV Contact Hazard Protection Cover - UL 94-V0
Part Number: 9677792
Manufacturer
Rittal
Part number
9677792
Category
Alt Part Number
SV 9677.792
Quick Summary
SV Contact hazard protection cover protects the front connector kit in ABB Tmax T7 switchgear assemblies. Engineers often battle exposed cable accesses and the risk of accidental contact during maintenance. Constructed from polyamide with UL 94-V0 fire protection, it also carries ETIM EC000775 and ECLASS 27142116 classifications to support accurate cataloging and compliance workflows. With side panels and a simple, tool-light install, this cover speeds assembly, improves safety, and helps standardize front-end protection across panel builds. By safeguarding the connector kit and enabling quick sealing of cable openings, it reduces downtime and stock-keeping complexity for maintenance teams in manufacturing environments.
Product Information
Extended Description

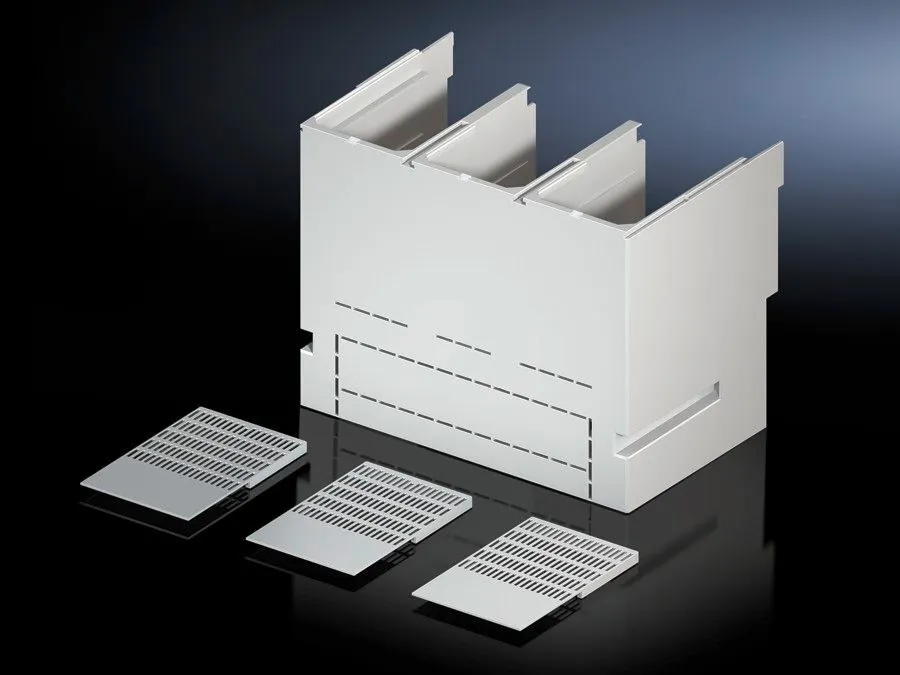

9677792 Rittal: SV Contact hazard protection cover, for component adaptor SV 967770X/71X, (ABB - Tmax T7)
Article number
SV 9677.792
Product description
To cover the connector kit at the front. The cover may also optionally be used for the switchgear cable connection. Open cable accesses in the contact hazard protection cover may be sealed using the side panels.
Material
Polyamide | Fire protection corresponding to UL 94-V0
Supply includes
Side panels
To fit manufacturer (model)
ABB (Tmax T7)
Packs of
1 pc(s).
Weight/pack
1.26 kg
Customs tariff number
39191019
EAN
4028177805347
ETIM 9
EC000775
ECLASS 8.0
27142116
Product description
SV Contact hazard protection cover, for component adaptor SV 967770X/71X, (ABB - Tmax T7)
The SV 9677792 provides front-end protection for the connector kit used with ABB Tmax T7 switchgear. By shielding exposed interfaces, it reduces the risk of accidental contact during maintenance and testing, helping operators work more confidently around live panels. This protective cover is designed to withstand routine servicing in industrial environments, supporting consistent safety practices across multiple projects and crews. Manufactured from polyamide with UL 94-V0 fire protection, the cover delivers dependable flame-retardant performance in demanding control cabinet conditions. The material choice also offers good mechanical resilience against impact and vibration, helping to extend service life and lowering replacement intervals. For teams pursuing standards-compliant installations, these features align with common safety requirements in power distribution equipment. Side panels are included with each pack, enabling quick sealing of open cable accesses and reducing opportunities for dust ingress or moisture intrusion. This reduces maintenance time, limits contamination risk, and simplifies future retrofits. The intuitive design supports faster commissioning and safer handovers between shift teams. Designed to fit the SV 967770X/71X component adaptor, the cover minimizes engineering hours and avoids costly custom adapters. The 1 pack configuration, containing one cover with side panels, streamlines ordering and keeps inventory predictable. At about 1.26 kg per pack, it also supports straightforward handling and shipping within standard enclosure assemblies. In line with cataloging standards ETIM EC000775 and ECLASS 27142116, the SV 9677792 integrates cleanly into procurement and maintenance workflows. This compatibility reduces procurement ambiguity, improves bill-of-material accuracy, and supports BOM updates for switchgear projects. Overall, the solution delivers safer front-end protection with tangible reductions in downtime and lifecycle costs.
Get a Quick Quote for a Rittal 9677792
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9677792?
Enquire Now
FAQs
Yes, the SV 9677.792 is designed to fit the ABB Tmax T7 via the SV 967770X/71X component adaptor. It ships as a 1 pc pack with side panels to seal open cable accesses, and mounting requires standard enclosure hardware. The fit is specified to reduce engineering time and ensure a reliable interface between the front connector kit and the enclosure.
The cover is made of polyamide and offers UL 94-V0 fire protection, indicating flame-retardant performance suitable for control cabinets. It weighs 1.26 kg per pack and includes side panels. It is cataloged under ETIM EC000775 and ECLASS 27142116 for streamlined procurement and compliance workflows.
By shielding the front connector kit and sealing open cable accesses with side panels, the cover reduces the risk of accidental contact during maintenance and testing. Its flame-retardant polyamide construction supports safer operations, while the sealed cable paths minimize dust ingress and contamination, leading to faster, safer service and fewer rework incidents.
Yes. The included side panels allow open cable accesses to be sealed, preventing dust and moisture intrusion. This design supports better environmental protection for the front end of the switchgear, reduces maintenance time, and enables quicker retrofits or upgrades without compromising enclosure integrity.
The SV 9677792 ships as a 1 pc pack with a total weight of 1.26 kg. This packaging configuration simplifies stocking, forecasting, and shipping within standard enclosure projects, aiding reliable procurement planning and minimizing handling effort on site.
