Rittal SV 9677.810 Current Transformer - Accuracy Class 1
Part Number: 9677810
Manufacturer
Rittal
Part number
9677810
Category
Alt Part Number
SV 9677.810
Quick Summary
Rittal SV 9677.810 Current Transformer measures current inductively in NH slimline fuse-switch disconnector assemblies. Engineers often struggle with space constraints and installation depth when adding metering in compact control panels. The device aligns with IEC 60 044-1 test standards, supports 50–60 Hz operation, insulation class E, and an accuracy class of 1. This combination minimizes wiring complexity and enables reliable monitoring. By integrating into top-mount components using 185 mm centre-to-centre spacing, it delivers space-saving benefits while maintaining robust performance in industrial environments. With 150 A primary and 5 A secondary, a 2.5 VA burden, and a box-terminal connection, it supports protection relays and metering without sacrificing panel density.
Product Information
Extended Description

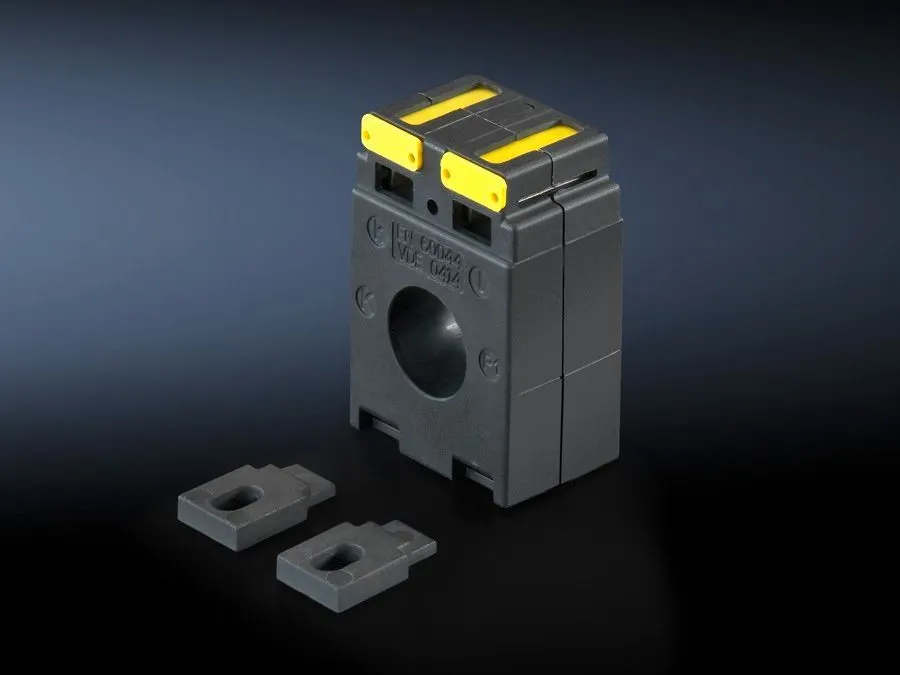

9677810 Rittal: SV Current transformer, for, NH slimline fuse-switch disconnector/, NH slimeline switch-disconnector, size 00 (SV 9677XXX)
Article number
SV 9677.810
Product description
Compact design without altering the installation depth via mechanical integration into the top-mounting components (185 mm centre-to-centre spacing); this allows space-saving assembly.
Material
Polyamide
For size
00
To fit Model No.
9677.000
Rated power input
2.5 VA
Type of electrical connection
Box terminal
Insuslation material (class)
E
Primary current
150 A
Secondary current
5 A
Accuracy Class
1
Test specification
IEC 60 044-1
Connection for round conductor
2.5 ‐ 4 mm²
Rated frequency
50 ‐ 60 Hz
Packs of
1 pc(s).
Weight/pack
0.206 kg
Customs tariff number
85043129
EAN
4028177705234
ETIM 9
EC002048
ECLASS 8.0
27141146
Product description
SV Current transformer, for, NH slimline fuse-switch disconnector/, NH slimeline switch-disconnector, size 00 (SV 9677XXX)
Feature: Compact, space-saving integration into NH slimline modules. Benefit: Reduces installation depth changes and frees panel space, enabling faster panel builds and easier service access; Application: Top-mount NH assemblies, 185 mm centre-to-centre spacing. Feature: Primary and secondary current ratings 150 A / 5 A with 2.5 VA burden. Benefit: Accurate, low-burden measurements for protective relays and metering circuits, improving reliability and reducing wiring complexity; Application: Panel boards and motor control centers. Feature: Box-terminal connection with 2.5–4 mm² conductor range. Benefit: Simple, robust wiring and secure terminations that support quick field assembly; Application: Industrial control panels and switchgear enclosures. Feature: Insulation class E and 50–60 Hz compatibility. Benefit: Enhanced safety and predictable performance across typical European industrial power systems; Application: Environments requiring consistent operation in standard mains frequency. Feature: Material and size compatibility: polyamide housing, size 00; Fits Model No. 9677.000. Benefit: Durable, heat-resistant construction with proven fit-and-finish inside NH slimline installations; Application: Replacement and retrofit in existing 9677 series setups. Feature: Compliance with IEC 60 044-1 test specification and established ETIM/ECLASS classifications. Benefit: Clear regulatory alignment and easy procurement through standardized part data; Application: Global manufacturing environments and supplier qualification.
