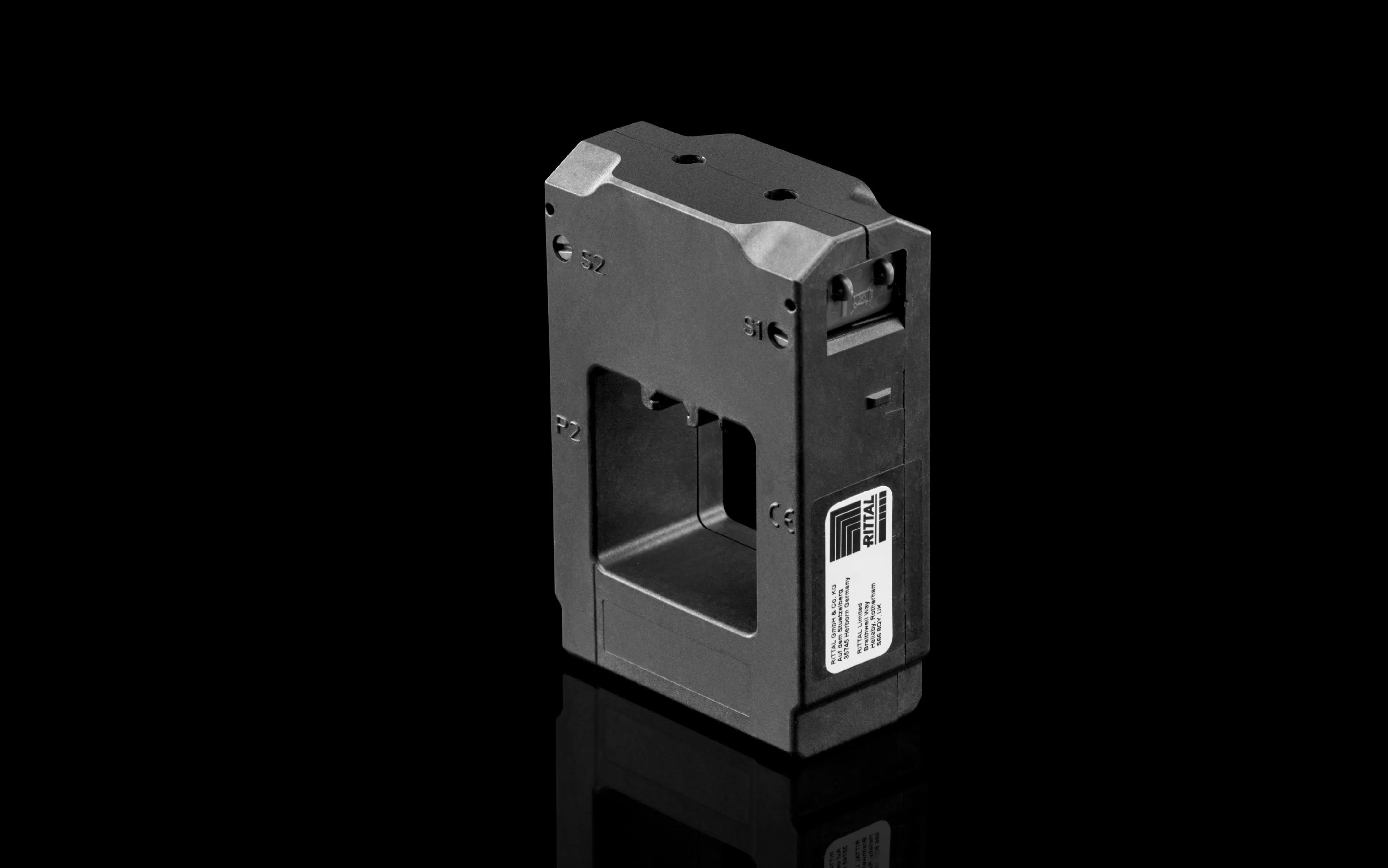

Rittal SV 9677.865 Current Transformer - IEC 60 044-1
Part Number: 9677865
Manufacturer
Rittal
Part number
9677865
Category
Alt Part Number
SV 9677.865
Quick Summary
Rittal SV 9677.865 current transformer enables precise inductive current measurement in NH slimline fuse-switch disconnector assemblies. Engineers often contend with installation depth and space constraints, and this compact design integrates into top-mounting components without increasing depth, enabling space-saving panel installations. It conforms to IEC 60 044-1 test standards, offers accuracy class 1, and uses H-class insulation for reliable operation in 50–60 Hz systems. This solution pairs with NH components to support efficient current sensing, reduced wiring, and simplified serviceability for panel builders and maintenance teams.
Product Information
Extended Description
9677865 Rittal: SV current transformer 250 A/5 A for NH slimline fuse-switch disconnector size 1-3 (SV 9677.XXX)
Article number
SV 9677.865
Product description
Compact design without altering the installation depth via mechanical integration into the top-mounting components (185 mm centre-to-centre spacing); this allows space-saving assembly.
Material
Polyamide
For size
1 - 3
To fit Model No.
9677.100
Rated power input
2.5 VA
Type of electrical connection
Box terminal
Insuslation material (class)
H
Primary current
250 A
Secondary current
5 A
Accuracy Class
1
Test specification
IEC 60 044-1
Connection for round conductor
2.5 ‐ 4 mm²
Rated frequency
50 ‐ 60 Hz
Packs of
1 pc(s).
Customs tariff number
85044085
EAN
4028177971554
ETIM 9
EC002048
ECLASS 8.0
27141146
Product description
SV current transformer 250 A/5 A for NH slimline fuse-switch disconnector size 1-3 (SV 9677.XXX)
Compact top-mount integration with 185 mm centre-to-centre spacing enables space-saving installation and keeps enclosure depth unchanged, simplifying retrofits and layout planning in control panels. This directly reduces cabinet footprint and wiring complexity, speeding commissioning in NH slimline systems. The rated power input of 2.5 VA lowers the burden on measurement circuits, reducing heat generation and enabling cleaner signal conditioning for accurate monitoring. With a primary of 250 A and a secondary of 5 A alongside accuracy class 1, users gain dependable current readings critical for protection coordination and load management in feeders and switchgear. Box terminals, conductor range 2.5–4 mm², and polyamide construction with insulation class H provide robust, safe wiring and long-term reliability in industrial environments. Compatibility with model 9677.100 and 50–60 Hz operation ensures straightforward integration with existing NH assemblies and control panels, minimizing engineering effort and risk.
Get a Quick Quote for a Rittal 9677865
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9677865?
Enquire Now
FAQs
SV 9677.865 is designed for top-mounting integration with 185 mm centre-to-centre spacing, allowing space-saving installation without altering installation depth. This simplifies retrofits and reduces panel footprint when used with NH slimline fuse-switch disconnector sizes 1-3.
The transformer provides a 250 A primary and 5 A secondary, with a rated power input of 2.5 VA and a 50–60 Hz operating range. It uses a box terminal connection compatible with 2.5–4 mm² round conductors, and the body is made of polyamide with insulation class H.
Yes. SV 9677.865 is specified to fit NH slimline fuse-switch disconnector configurations up to size 3 and is designed to be compatible with Model No. 9677.100, enabling straightforward integration into existing assemblies.
The product complies with IEC 60 044-1 test specifications and uses insulation class H material, supporting reliable operation in 50–60 Hz networks. Its accuracy class is 1, ensuring dependable current measurement for protection and monitoring tasks.
The compact top-mount design reduces enclosure depth, speeding installation and service. The box terminal wiring simplifies field connections, while the 250 A/5 A ratio provides precise sensing for protection schemes. Overall, it lowers installation time, improves measurement accuracy, and reduces wiring complexity in NH slimline applications.
