Rittal SV 9677.875 Current Transformer - Class 1
Part Number: 9677875
Manufacturer
Rittal
Part number
9677875
Category
Alt Part Number
SV 9677.875
Quick Summary
Rittal SV 9677.875 current transformer provides precise 400 A to 5 A sensing for NH slimline fuse-switch disconnector assemblies. Engineers frequently wrestle with limited panel depth, and the compact design avoids changing installation depth while speeding wiring and reducing enclosure real estate. It adheres to IEC 60 044-1 testing, uses insulation class B materials, and delivers accuracy class 1 for reliable protection and metering. The combination of space savings, robust sensing, and box-terminal reliability translates into shorter build cycles and lower maintenance costs for panel builders and OEMs.
Product Information
Extended Description

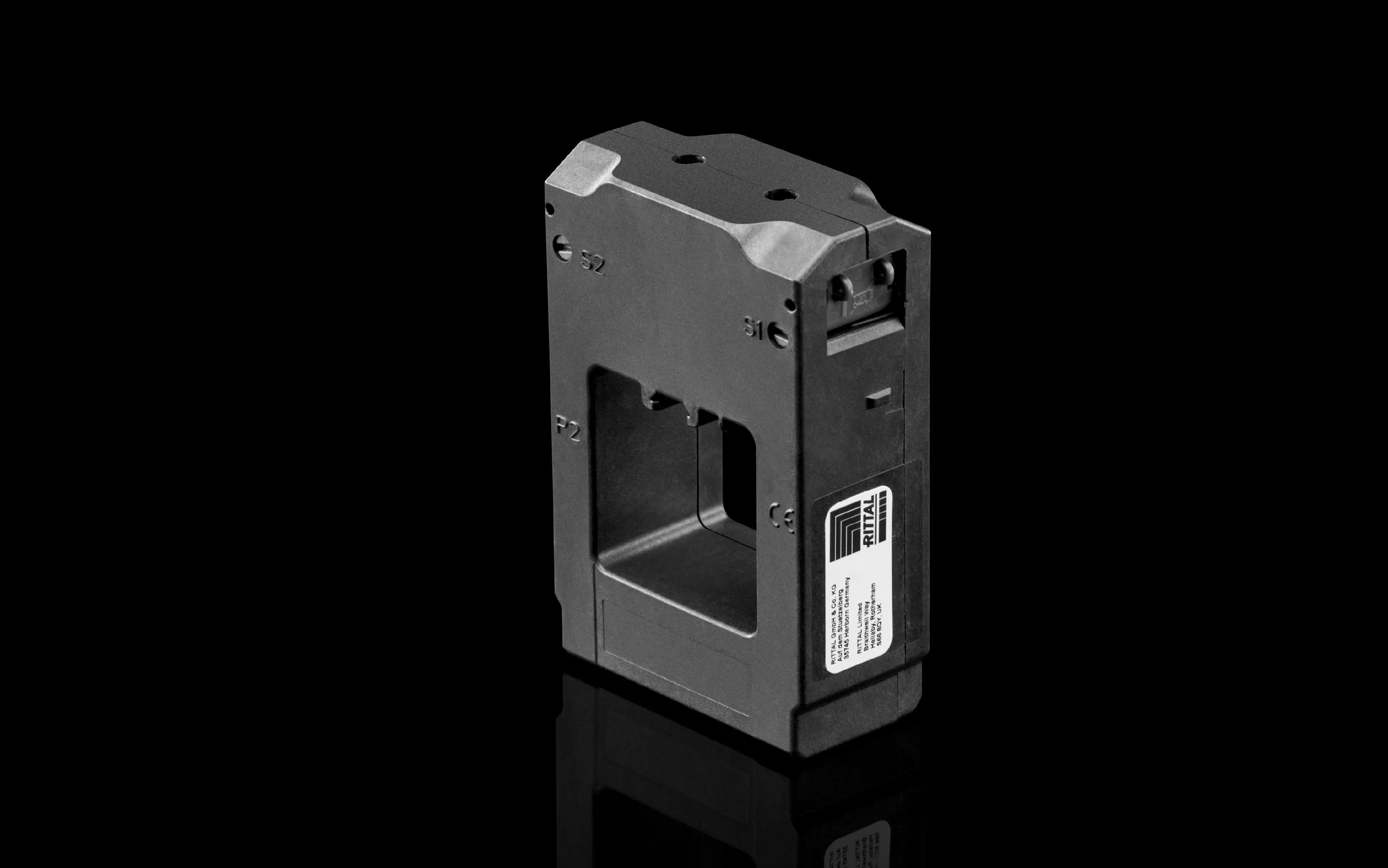

9677875 Rittal: SV current transformer 400 A/5 A for NH slimline fuse-switch disconnector size 2-3 (SV 9677.XXX)
Article number
SV 9677.875
Product description
Compact design without altering the installation depth via mechanical integration into the top-mounting components (185 mm centre-to-centre spacing); this allows space-saving assembly.
Material
Polyamide
For size
2/3
To fit Model No.
9677.200
Rated power input
2.5 VA
Type of electrical connection
Box terminal
Insuslation material (class)
B
Primary current
400 A
Secondary current
5 A
Accuracy Class
1
Test specification
IEC 60 044-1
Connection for round conductor
2.5 ‐ 4 mm²
Rated frequency
50 ‐ 60 Hz
Packs of
1 pc(s).
Customs tariff number
85044085
EAN
4028177971561
ETIM 9
EC002048
ECLASS 8.0
27141146
Product description
SV current transformer 400 A/5 A for NH slimline fuse-switch disconnector size 2-3 (SV 9677.XXX)
Feature: Compact design with 185 mm centre-to-centre spacing enables space-saving assembly by integrating into top-mounting components. Business Impact: Frees panel depth for other components and reduces installation time, lowering total project cost. Application: NH slimline fuse-switch disconnector size 2-3 deployments in control panels. Feature: 400 A primary and 5 A secondary with Accuracy Class 1 delivers reliable current measurement under typical industrial loads. Business Impact: Improves protection coordination and metering accuracy, reducing nuisance trips and energy reporting errors. Application: Industrial distribution panels and motor control centers. Feature: Box terminal connection for round conductors 2.5–4 mm² and insulation material class B in a polyamide body. Business Impact: Robust field wiring with heat resistance and durable insulation, minimizing maintenance. Application: Field wiring in harsh environments and tight terminations. Feature: Compatibility with NH slimline models and 50–60 Hz operation, rated at 2.5 VA, designed to fit Model No. 9677.200. Business Impact: Streamlined replacement and upgrade paths without panel redesign. Application: Retrofit projects and new builds using common NH components. Feature: IEC 60 044-1 test standard compliance and packaging as 1 piece per pack signals quality control and traceability. Business Impact: Assurance of standards alignment and straightforward stocking for engineers and procurement. Application: Panel fabrication and compliance documentation.
