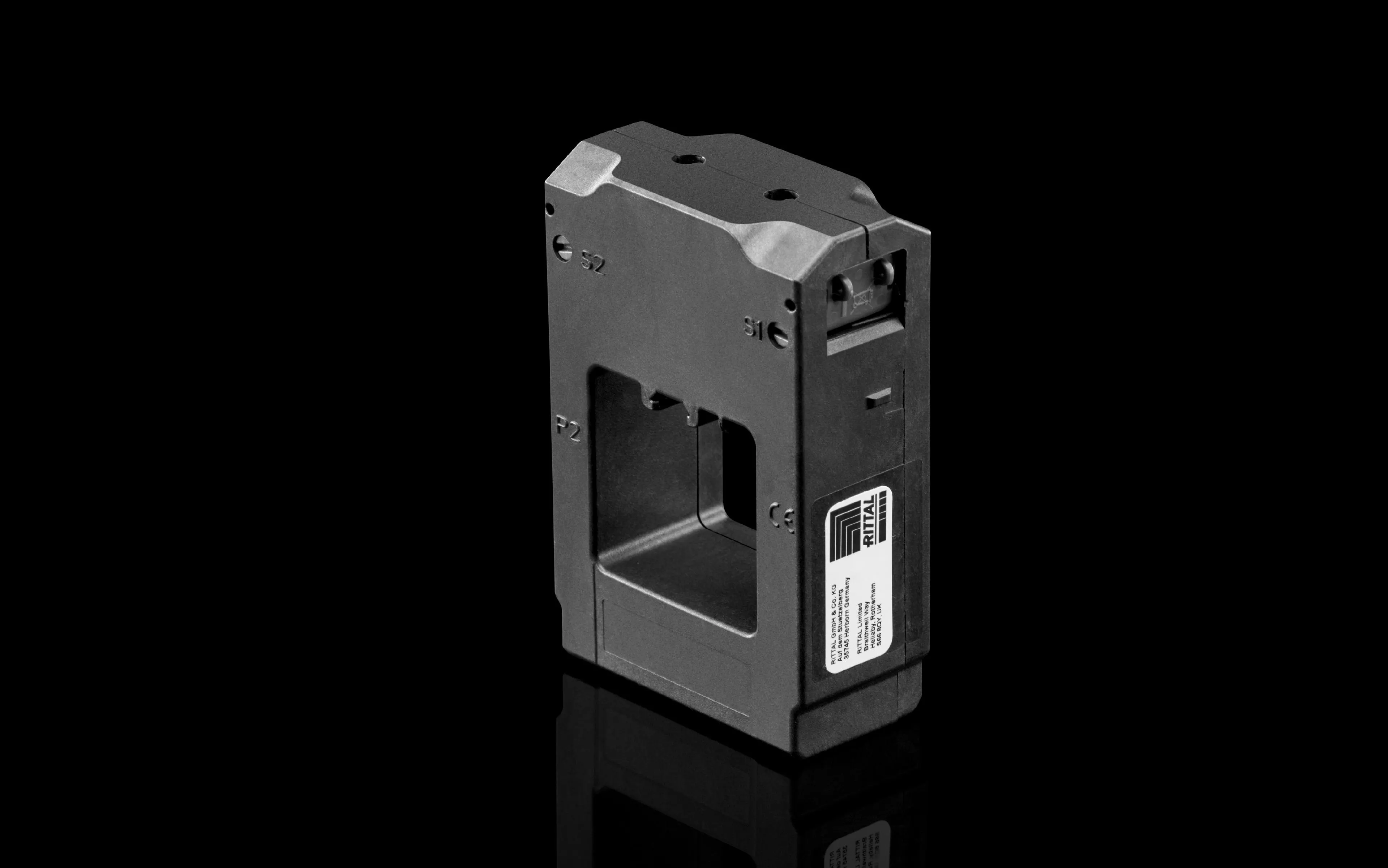

Rittal SV 9677.885 SV current transformer - Class 1
Part Number: 9677885
Manufacturer
Rittal
Part number
9677885
Category
Alt Part Number
SV 9677.885
Quick Summary
SV current transformer 9677.885 provides inductive current measurement for NH slimline fuse-switch disconnector installations. Engineers often confront installation depth and space constraints in compact control panels, and this unit delivers a space-saving integration by fitting into top-mounting components without increasing depth. It complies with IEC 60 044-1 testing and uses insulation class H between conductors and housing, supporting reliable operation at 50–60 Hz. With a 600 A primary and 5 A secondary, plus 2.5 VA rated power input, the design enables precise metering while keeping panel footprints small, reducing cabling complexity and total cost of ownership.
Product Information
Extended Description
9677885 Rittal: SV current transformer 600 A/5 A for NH slimline fuse-switch disconnector size 3 / connection and component adaptor (SV 9677.XXX)
Article number
SV 9677.885
Product description
Compact design without altering the installation depth via mechanical integration into the top-mounting components (185 mm centre-to-centre spacing); this allows space-saving assembly.
Material
Polyamide
For size
3
To fit Model No.
9677.300
Rated power input
2.5 VA
Type of electrical connection
Box terminal
Insuslation material (class)
H
Primary current
600 A
Secondary current
5 A
Accuracy Class
1
Test specification
IEC 60 044-1
Connection for round conductor
2.5 ‐ 4 mm²
Rated frequency
50 ‐ 60 Hz
Packs of
1 pc(s).
Customs tariff number
85044085
EAN
4028177971578
ETIM 9
EC002048
ECLASS 8.0
27141146
Product description
SV current transformer 600 A/5 A for NH slimline fuse-switch disconnector size 3 / connection and component adaptor (SV 9677.XXX)
Feature → Business Impact → Application: Compact, top-mount integration allows installation without altering existing panel depth, enabling space optimization in control cabinets and speedier commissioning for 185 mm centre-to-centre spacing. Application: NH slimline fuse-switch disconnector size 3 zones. Feature → Robust polyamide housing and box terminal connection provide durable insulation and simple wiring, reducing field wiring errors and maintenance downtime. Application: Box-terminal wiring for round conductors 2.5–4 mm² in tight panel layouts. Feature → Primary current 600 A and secondary 5 A with 2.5 VA input and 50–60 Hz compatibility deliver accurate sensing with minimal phase shift; meets Class 1 accuracy targets. Application: Metering and protection circuits in high-current distribution racks. Feature → Insulation class H ensures safer operation in confined spaces and supports long service life; feature complements compact design. Application: Indoor electrical panels with stringent insulation requirements. Feature → To fit Model No. 9677.300 and 185 mm spacing, the design supports scalable, modular assemblies in multi-inverter or PLC-driven power distributors. Application: Modular switchgear installations requiring consistent sensor geometry.
Get a Quick Quote for a Rittal 9677885
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9677885?
Enquire Now
FAQs
The SV 9677.885 is designed for NH slimline fuse-switch disconnector size 3 and integrates without increasing installation depth. It features 185 mm centre-to-centre spacing and a top-mounting design that simplifies mounting within compact panels, reducing complexity during installation and enabling faster commissioning.
Key specs include a 600 A primary current, 5 A secondary current, 2.5 VA rated power input, and operation at 50–60 Hz. The device uses a box-terminal connection and insulation class H, with an accuracy class of 1, suitable for precise current measurement in high-current circuits.
The data confirms conformity to IEC 60 044-1 test specifications and insulation class H, which supports regulatory compliance in many regions. While CE marking is not explicitly listed, the product’s safety and performance characteristics align with standard electrical measurement components used in certified panels.
The compact design allows space-saving integration inside NH slimline assemblies, with no alteration to installation depth and a fixed 185 mm center-to-center spacing. This reduces panel footprint, accelerates installation, and simplifies future upgrades or expansions in modular switchgear configurations.
With a robust polyamide housing, box-terminal wiring for 2.5–4 mm² conductors, and a straightforward top-mount installation, wiring errors and rework are minimized. The result is lower maintenance costs, faster commissioning, and improved uptime, contributing to a faster return on investment in high-current distribution panels.
