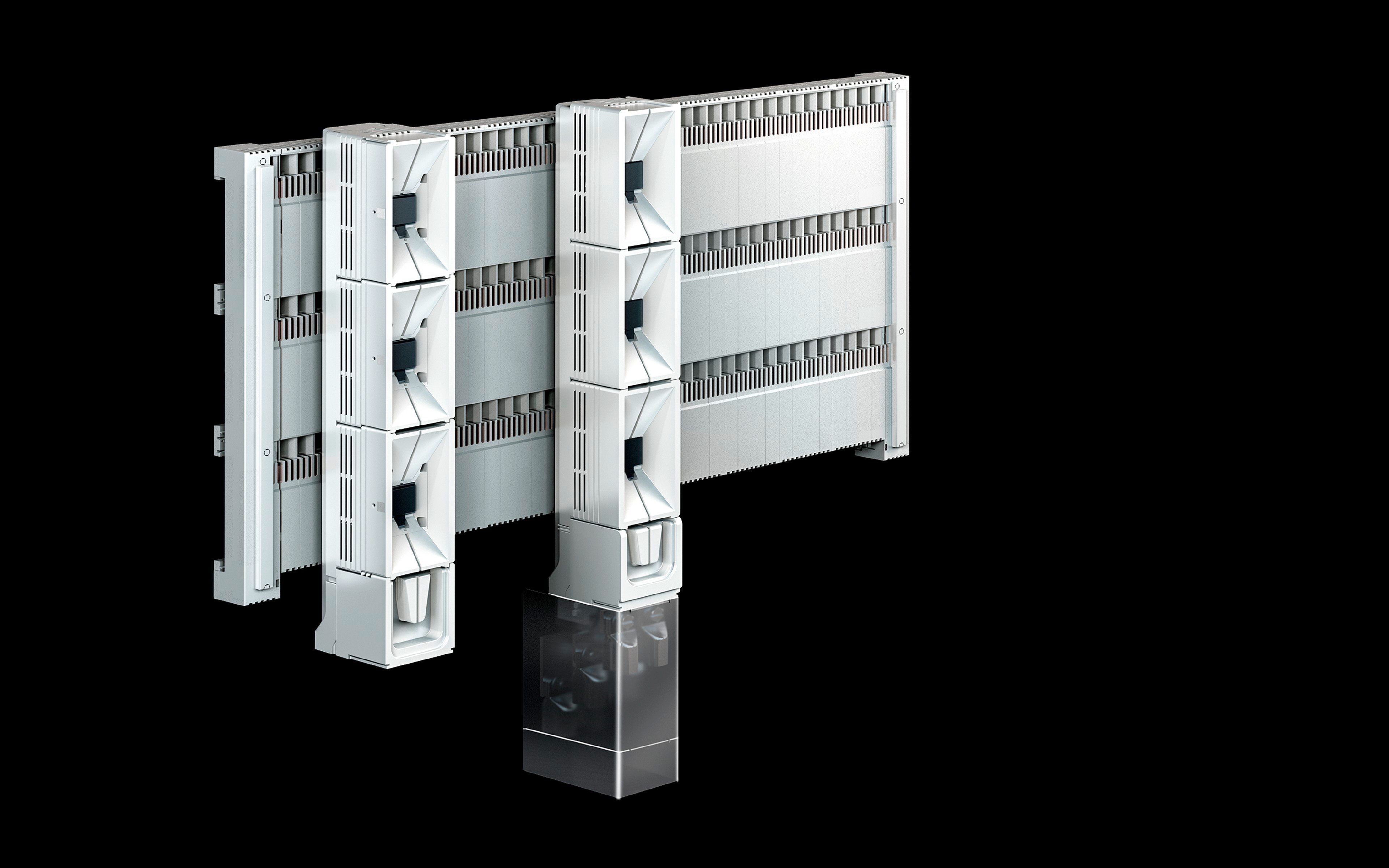

Rittal SV 9677.900 Busbar adaptor - 800 A / 690 V

Feature: High-current capability up to 800 A at 690 V. Business impact: Enables reliable distribution of heavy loads within a compact footprint, reducing the number of parallel components and potential failure points. Application: Suitable for 3-pole distribution in switchgear and panel boards where space is tight. Feature: Fibreglass-reinforced polyester housing with UL 94-V0 fire protection. Business impact: Improves safety and rating compliance in harsh environments while maintaining mechanical integrity. Application: Industrial automation cabinets and power distribution units requiring fire-protected components. Feature: Top/bottom cable outlets. Business impact: Wiring flexibility accelerates installation and simplifies maintenance, decreasing commissioning time. Application: Retrofits and new builds in control panels with limited access from above or below. Feature: Screw M12 electrical connections. Business impact: Provides secure, vibration-resistant terminations for high-current conductors, minimizing contact resistance. Application: Heavy-duty cabinet wiring in manufacturing lines. Feature: Conductor range 6–240 mm². Business impact: Supports a wide set of conductor sizes, enabling designers to standardize components across projects and reduce inventory. Application: 800 A busbar assemblies with mixed conductor sizes. Feature: 185 mm centre-to-centre busbar spacing and 3-pole configuration. Business impact: Fits standard busbar layouts, enabling quick integration with existing installations and proven compatibility. Application: Panel builds requiring precise spacing and multi-pole distribution. Feature: Dimensions 100 mm width and 665 mm height; weight 5 kg per pack. Business impact: Compact form factor reduces enclosure footprint while manageable weight simplifies handling during installation. Application: Mounting in constrained enclosures and retrofit projects. Feature: Copper weight 3.128 kg per piece. Business impact: Indicates conductor mass for thermal and current considerations, aiding thermal management planning. Application: Design reviews for high-current busbar assemblies. Feature: 800 A rated current and 690 V rated operating voltage. Business impact: Enables direct connection of significant loads without intermediate step-down components, improving efficiency and reliability. Application: Main feeders and distribution blocks in industrial control systems.
