Rittal 9677915 SV Connection Block - 1000 A, 690 V
Part Number: 9677915
Manufacturer
Rittal
Part number
9677915
Category
Alt Part Number
SV 9677.915
Quick Summary

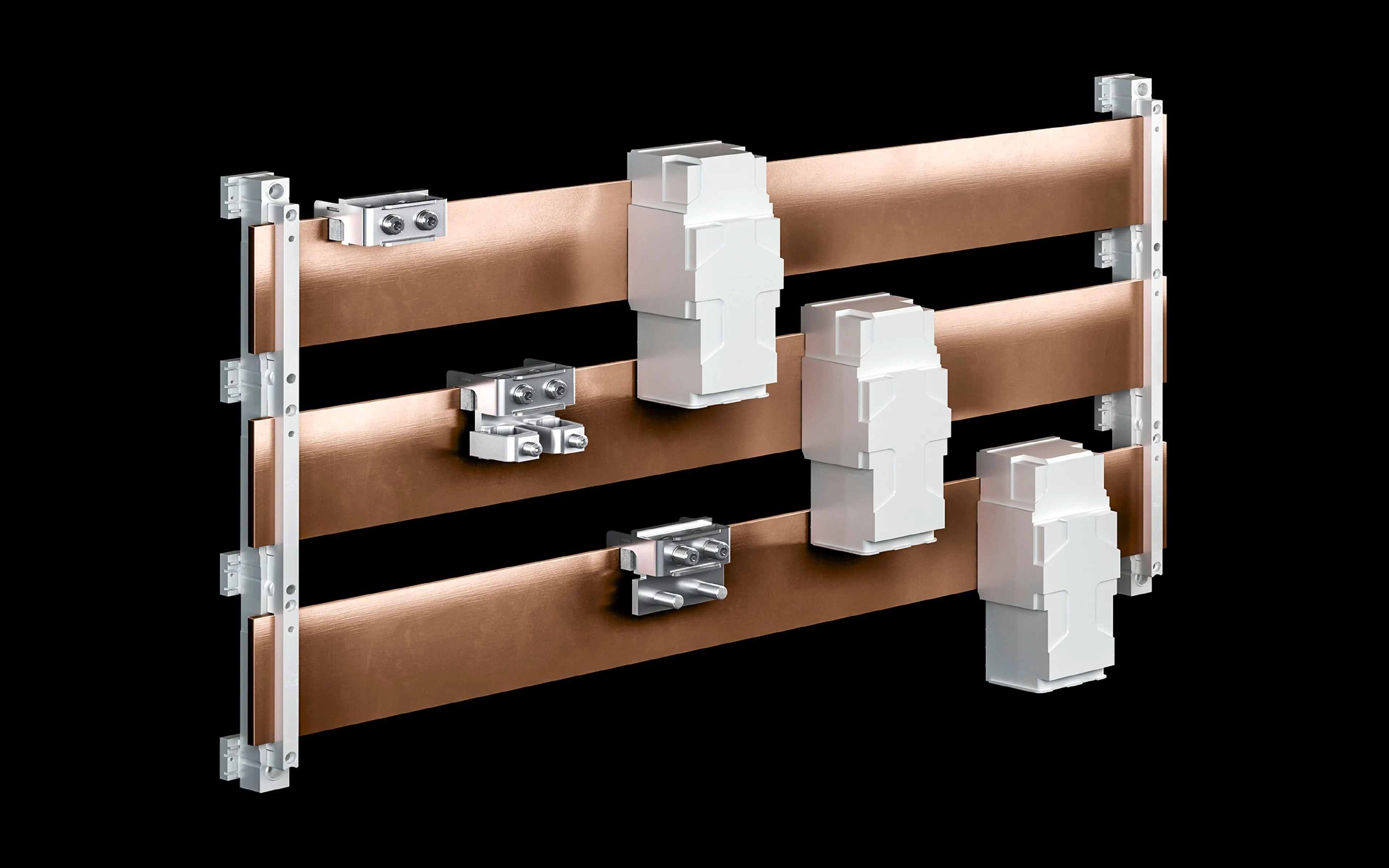

SV Connection Block by Rittal connects cables and laminated copper bars for high‑current power distribution. This part addresses space constraints and reliability challenges in compact control panels, delivering a robust connection solution. Note: The data set does not list CE, IP, or SIL certifications for this part, so verify regulatory compliance with your local requirements. It is a 1‑pole box terminal rated for 1,000 A at 690 V, with top and bottom cable outlets, designed to fit busbars with a 10 mm height and round conductors 185–300 mm². Compatible with copper busbar configurations and pipe‑like routing, it supports faster installation and safer maintenance in industrial environments. Typical applications include switchgear, control panels, and distributed power architectures.
Product Information
Extended Description
9677915 Rittal: SV Connection block, 1000 A, 690 V, 1-pole, cable outet top/bottom, round conductor connection 185-300 mm²
Article number
SV 9677.915
Product description
For connecting cables and laminated copper bars.
Material
Sheet steel, zinc-plated | E-Cu, tin-plated
Cable outlet
Top/bottom
Type of electrical connection
Box terminal
Rated current max.
1,000 A
Dimensions
Width: 98 mm
Connection for round conductor
185 ‐ 300 mm²
To fit busbars
Height: 10 mm
Packs of
1 pc(s).
Weight/pack
1.35 kg
Copper weight (kg per piece)
0.893
PCF per pack (cradle-to-gate)
5.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
85369095
EAN
4028177806344
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Connection block, 1000 A, 690 V, 1-pole, cable outet top/bottom, round conductor connection 185-300 mm²
Feature: High current rating and voltage compatibility translates to reduced conductor parallelism and improved electrical performance, enabling more compact panel layouts with fewer connection points. Impact: Lower heat buildup, improved voltage drop management, and streamlined procurement. Application: Ideal for switchgear assemblies and heavy-duty control panels requiring 1,000 A and 690 V service. Feature: Durable sheet steel, zinc-plated exterior with tin-plated copper interior for corrosion resistance and long service life. Impact: Lower maintenance costs and extended intervals between servicing. Application: Harsh industrial environments or damp panel enclosures where reliability matters. Feature: Top/bottom cable outlets and 1-pole box terminal with round conductors 185–300 mm² support flexible routing and simplified wiring discipline. Impact: Faster installation, easier future rework, and safer terminations. Application: Copper busbar connections in modular power distribution where space is constrained. Feature: Compact footprint (width 98 mm) and height to fit 10 mm busbar spacings, enabling tight panel packing. Impact: Higher panel density, reduced enclosure size, and lower per‑circuit costs. Application: Control cabinets with dense conductor management. Feature: Sustainability and compliance data include PCF 5.1 kg CO2 eq per pack and 1 pc pack; 1.35 kg weight per pack, with copper weight 0.893 kg per piece. Impact: Clear lifecycle considerations and easier environmental reporting for procurement. Application: Corporate sustainability reporting and green engineering initiatives. Feature: Classification and standards alignment (ETIM EC001900, ECLASS 27400613) support accurate cataloging and cross‑system interoperability. Impact: Faster sourcing, improved data quality, and streamlined ERP integrations. Application: Large‑scale procurement and automated BOM workflows.
Get a Quick Quote for a Rittal 9677915
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9677915?
Enquire Now
FAQs
Install by aligning the SV 9677915 with the copper busbar, securing the block as a 1‑pole box terminal, and routing conductors 185–300 mm² through the top or bottom outlets. Ensure the width is 98 mm and the clearance matches the 10 mm busbar height. Tighten all terminations to the manufacturer’s torque specifications and verify clearances for safe operation.
The SV 9677915 is rated for 1,000 A at 690 V and accepts round conductors in the 185–300 mm² range. It is a 1‑pole box terminal with top/bottom cable outlets, designed for laminated copper bars. The device width is 98 mm and supports a 10 mm busbar height, making it suitable for compact high‑current installations.
Yes. Its high current rating, robust steel and copper construction, and top/bottom outlet configuration make it well suited for switchgear, control panels, and laminated copper busbar connections. The compact footprint helps with dense panel layouts, while the 185–300 mm² conductor range accommodates common industrial heavy conductors.
The product data lists ETIM 9 EC001900 and ECLASS 8.0 27400613 classifications, along with the EAN 4028177806344 and Customs tariff 85369095. These classifications support accurate cataloging, interoperability, and compliant procurement, even though explicit CE or IP/SIL certifications are not stated in the provided data.
The part ships as a 1 pc pack with a total pack weight of 1.35 kg and copper content of 0.893 kg per piece, aiding material cost estimation. PCF is listed at 5.1 kg CO2 eq (Cat B) per pack, supporting sustainability reporting. These factors, plus reduced wiring time, can lower maintenance costs and improve lifecycle efficiency.
