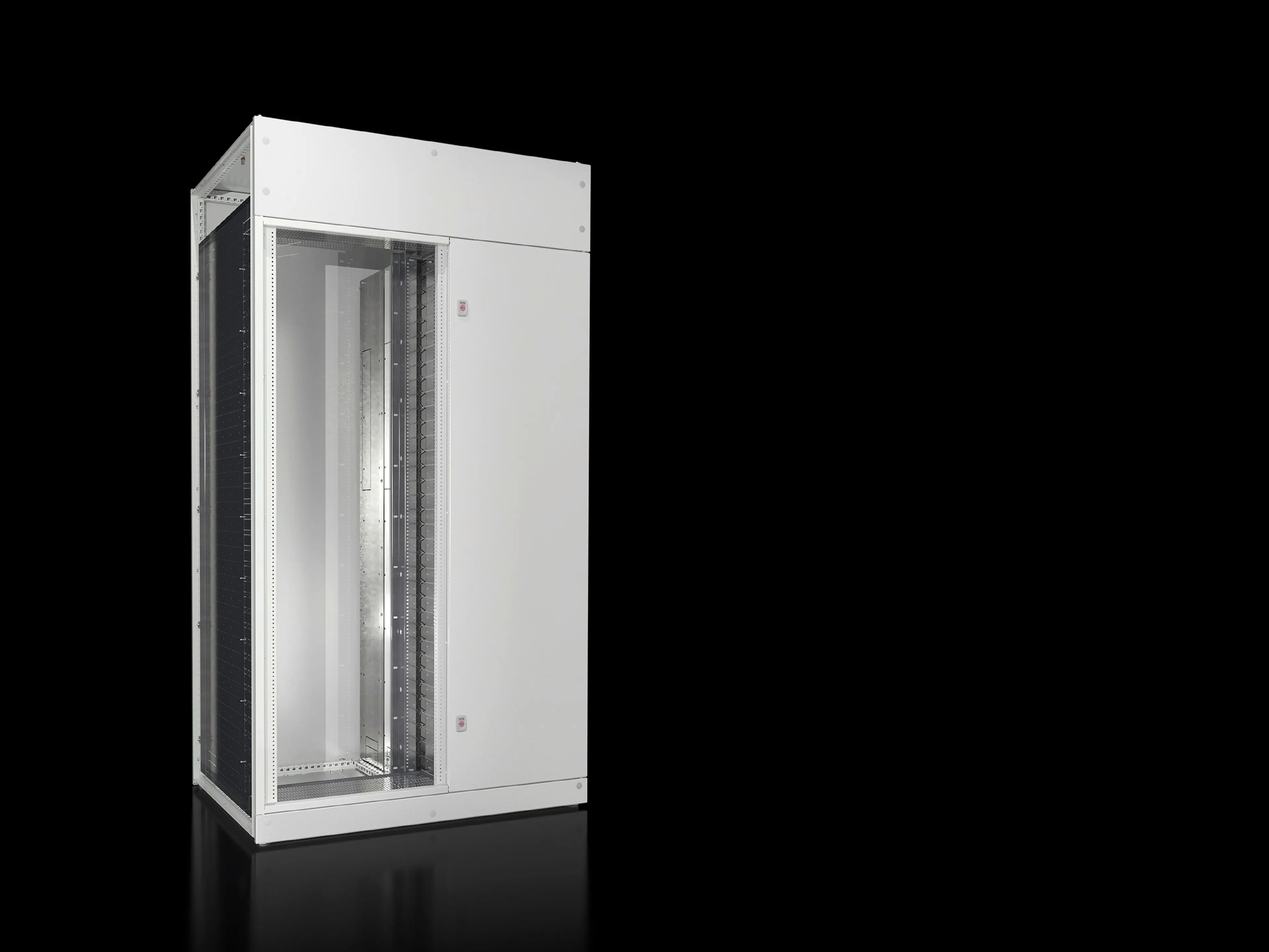

Rittal VX 9680.005 Enclosure – IP 3X, 1000x2000x600
Part Number: 9680005
Manufacturer
Rittal
Part number
9680005
Alt Part Number
VX 9680.005
Quick Summary
Rittal VX 9680.005 fuse-switch enclosure is a modular power-distribution solution designed for control panels in industrial environments. It addresses space constraints, cable routing, and safe interface with NH slimline disconnectors by providing a ready-made frame, gland plates, and mounting hardware. The unit is IEC 61439-1/2 tested with IP protection up to 3X depending on panel configuration, and it aligns with ETIM EC000261 and ECLASS 27180101 for global procurement. With a 1.5 mm sheet steel body, powder-coated exterior, and detailed supply contents, you gain faster installation, easier maintenance, and predictable performance in panel bays.
Product Information
Extended Description
9680005 Rittal: VX Fuse-switch disconnector enclosure, WHD: 1000x2000x600 mm, sheet steel
Article number
VX 9680.005
Material
Sheet steel, 1.5 mm
Surface finish
Enclosure frame: Dipcoat-primed | Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint | Gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure frame | Door | Roof plate | Rear panel | Gland plates | Front trim panels | Lock: 3 mm double-bit | Compartment side panels | Locating frame for disconnectors with fuses (brands ABB SlimLine/Jean Müller SASIL)
Protection category to IEC 60 529
Up to IP 3X, depending on the panels
Test specification
IEC 61 439-1/-2
Dimensions
Width: 1,000 mm | Height: 2,000 mm | Depth: 600 mm
Packs of
1 pc(s).
Weight/pack
125.3 kg
PCF per pack (cradle-to-gate)
308.7 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177937062
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
VX Fuse-switch disconnector enclosure, WHD: 1000x2000x600 mm, sheet steel
Feature: WHD 1000x2000x600 mm enclosure and 1.5 mm sheet steel body → Business Impact: Provides ample internal space for NH slimline disconnectors while maintaining robust mechanical protection; Application: Suitable for baying systems in factory control panels. Feature: Powder-coated exterior and dipcoat-primed frame → Business Impact: Enhanced corrosion resistance and long service life, lowering maintenance costs; Application: Harsh industrial environments and outdoor-rated enclosures. Feature: Includes gland plates, front trim panels, locating frame for disconnectors (ABB SlimLine/Jean Müller SASIL) → Business Impact: Faster installation and reliable alignment; Application: Quick deployment in automated lines. Feature: Protection up to IP 3X (panel-dependent) → Business Impact: Improved ingress protection and safety compliance; Application: Equipment bays exposed to dust and light moisture. Feature: Weight 125.3 kg per pack and CE-friendly data references (ETIM/ECLASS) → Business Impact: Accurate logistics planning and standardized procurement; Application: Global sourcing and lifecycle management.
Get a Quick Quote for a Rittal 9680005
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9680005?
Enquire Now
FAQs
Yes. VX 9680.005 is designed to bay NH slimline fuse-switch disconnectors and ships with a locating frame for ABB SlimLine and Jean Müller SASIL components, ensuring correct alignment and secure mounting. The enclosure supports front and rear gland plate configurations and comes with doors, frames, and necessary mounting hardware to simplify panel assembly.
Key specs include a WHD of 1000x2000x600 mm, 1.5 mm sheet steel construction, RAL 7035 color, and IP protection up to 3X depending on the chosen panels. It is tested to IEC 61439-1/2 and complies with standard ETIM EC000261 and ECLASS 27180101 to support global procurement.
The enclosure is ideal for industrial automation, manufacturing lines, power distribution bays, and process control environments where baying NH slimline disconnectors is required. Its robust build, modular frame, and shell finish support energy-efficient, safe, and scalable control panel solutions across multiple sectors.
The product is designed to IEC 61439-1/2 tested, providing reliable performance in electrical distribution. It also carries industry-standard classifications (ETIM EC000261, ECLASS 27180101) to aid global procurement. IP protection up to 3X is specified based on panel configuration, enhancing safety and compliance.
Durable 1.5 mm sheet steel with a dipcoat-primed frame and powder-coated exterior delivers long service life and reduced corrosion risk. The supplied gland plates and standard components simplify replacement and upgrades, while modular design speeds service intervals and lowers lifecycle costs in high-demand environments.
