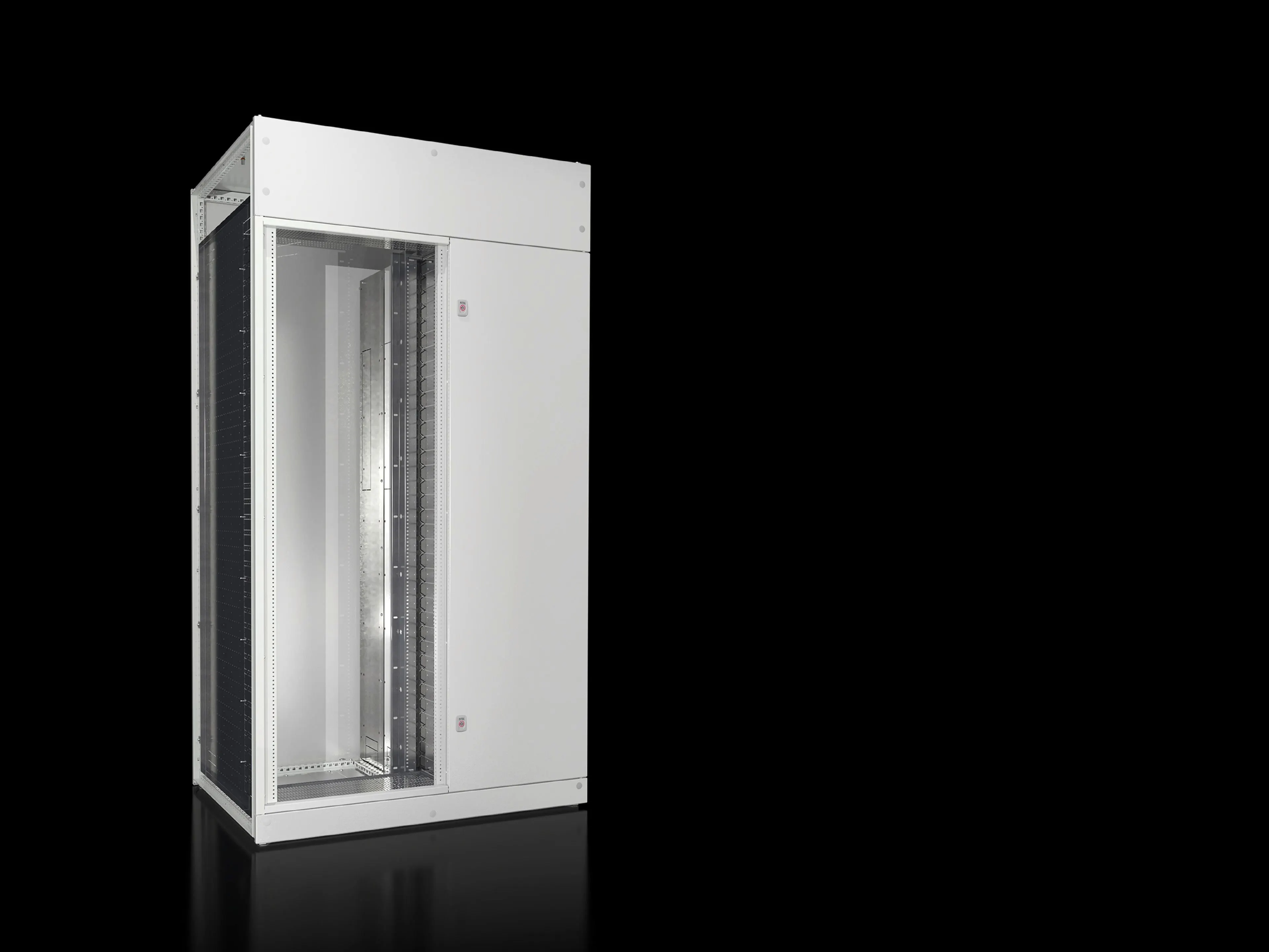

Rittal VX 9680.025 Fuse-Switch Enclosure - IP3X
Part Number: 9680025
Manufacturer
Rittal
Part number
9680025
Alt Part Number
VX 9680.025
Quick Summary
Rittal VX 9680.025 fuse-switch disconnector enclosure distributes electrical power in switchgear and control panels. For engineers wrestling with wiring complexity and retrofit timelines, its integrated frame, gland plates, and mounting options simplify installation and ongoing maintenance. It’s tested to IEC 61439-1/2 and offers CE conformity with IP protection up to IP3X, providing reliability in harsh industrial environments. Designed to pair with ABB SlimLine or Jean Müller SASIL disconnectors, it also supports scalable power distribution, reducing downtime and total cost of ownership. This enclosure supports standard control panels, enabling faster deployment of compliant, future-ready electrical infrastructure.
Product Information
Extended Description
9680025 Rittal: VX Fuse-switch disconnector enclosure, WHD: 1000x2200x600 mm, sheet steel
Article number
VX 9680.025
Material
Sheet steel, 1.5 mm
Surface finish
Enclosure frame: Dipcoat-primed | Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint | Gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure frame | Door | Roof plate | Rear panel | Gland plates | Front trim panels | Lock: 3 mm double-bit | Compartment side panels | Locating frame for disconnectors with fuses (brands ABB SlimLine/Jean Müller SASIL)
Protection category to IEC 60 529
Up to IP 3X, depending on the panels
Test specification
IEC 61 439-1/-2
Dimensions
Width: 1,000 mm | Height: 2,200 mm | Depth: 600 mm
Packs of
1 pc(s).
Weight/pack
135.2 kg
PCF per pack (cradle-to-gate)
333.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177937048
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
VX Fuse-switch disconnector enclosure, WHD: 1000x2200x600 mm, sheet steel
Material and finish: The enclosure uses sheet steel 1.5 mm with a dipcoat-primed frame and powder-coated exterior, paired with zinc-plated gland plates. Business impact: This combination delivers durability in harsh environments and reduces repaint or corrosion-related maintenance. Application: Suitable for factory floors, outdoor zones shielded by enclosures, and high-humidity plants. Dimensions and weight: WHD 1000x2200x600 mm; weight per pack 135.2 kg. The design provides ample space for NH slimline fuse-switch disconnectors while maintaining modularity. Once installed, installers benefit from included gland plates, front trim panels, and a locating frame that simplify field assembly and future upgrades. Protection and standards: Up to IP3X protection (depending on panels); IEC 61439-1/2 testing ensures safe operation in demanding environments. PCF and environment: 333.1 kg CO2 eq (Cat B) cradle-to-gate, aligning with sustainable manufacturing practices.
Get a Quick Quote for a Rittal 9680025
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9680025?
Enquire Now
FAQs
Follow the included locating frame and gland plates to align the disconnectors precisely; ensure mounting rails and side panels are correctly fitted before wiring to minimize rework and downtime.
Dimensions are 1000x2200x600 mm; weight per pack is 135.2 kg; material is sheet steel 1.5 mm with dipcoat priming and powder-coated external finish; protection up to IP3X; IEC 61439-1/2 tested; includes gland plates and integration with ABB SlimLine/Jean Müller SASIL disconnectors.
Yes; its 1.5 mm sheet steel construction, integrated mounting and frame for disconnectors, and IP3X protection support reliable, scalable power distribution in compact switchgear and automation panels.
It is tested to IEC 61439-1/2 and CE compliant, with reference to ETIM EC000261 and ECLASS 8.0 27180101 classifications for compatibility and parts data.
PCF per pack is 333.1 kg CO2 equivalent (Category B) cradle-to-gate, reflecting the product weight and manufacturing process.
