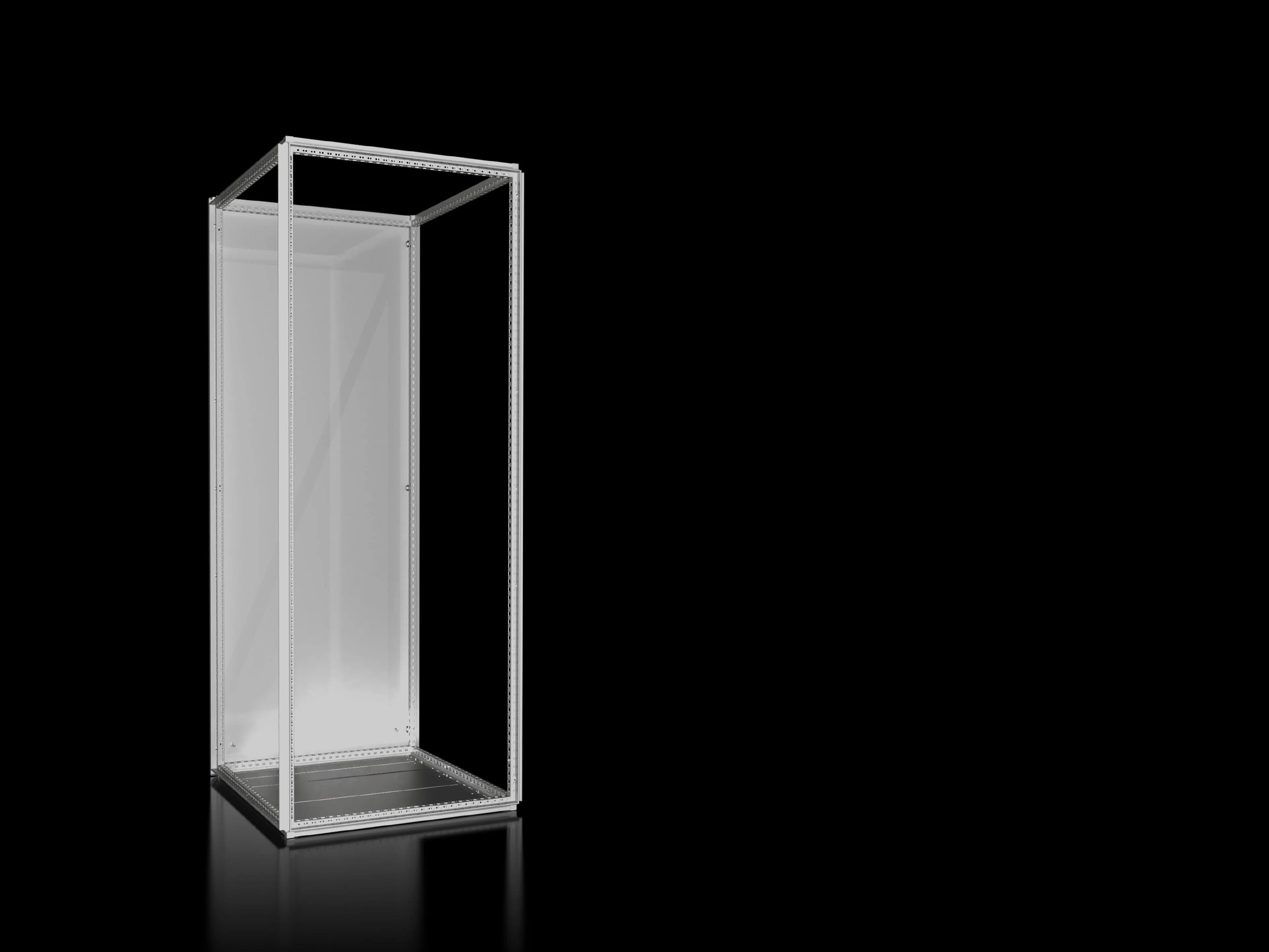

Rittal VX 9680.028 Enclosures - IP54 Protection
Part Number: 9680028
Manufacturer
Rittal
Part number
9680028
Alt Part Number
VX 9680.028
Quick Summary
Rittal VX 9680.028 enclosures provide modular baying for secure, scalable control cabinets. Engineers often confront tight layouts and limited door access; this system enables partial doors and internal separation to optimize space, cable routing, and future expansion. CE certification and IEC 61439-1/2 tested performance, with IP ratings up to 54 depending on panels, ensure reliability in harsh environments. The rugged sheet steel body, dipcoat-primed frame, and powder-coated exterior support long service life, while gland plates—zinc-plated—simplify cable management. This combination delivers faster installation, easier maintenance, and smoother integration with standard gland plates and mounting accessories, translating into lower total cost of ownership for industrial automation projects.
Product Information
Article number
VX 9680.028
Material
Sheet steel, 1.5 mm
Surface finish
Enclosure frame: Dipcoat-primed | Rear panel: Dipcoat-primed, powder-coated on the outside, textured paint | Gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure frame | Rear panel | Gland plates
Protection category to IEC 60 529
Up to IP 54, depending on the panels
Test specification
IEC 61 439-1/-2
Dimensions
Width: 1,000 mm | Height: 2,200 mm | Depth: 800 mm
Packs of
1 pc(s).
EAN
4028177042247
ECLASS 8.0
27180101
Feature: Modular baying system with partial doors and internal separation. Business Impact: Enables scalable architectures, optimizes space, and simplifies cable routing for future expansion. Application: Data centers, machine assemblies, and factory floors seeking flexible control cabinet layouts. Feature: 1.5 mm sheet steel construction. Business Impact: Provides robust mechanical protection and long-term durability in demanding environments, reducing maintenance downtime. Application: Automotive, metalworking, and process industries. Feature: Dipcoat-primed enclosure frame and rear panel with powder-coated outside and textured finish; zinc-plated gland plates. Business Impact: Improves corrosion resistance and external longevity, lowering replacement costs. Application: Enclosures exposed to humidity or temperature cycling. Feature: IP up to 54 protection (dependent on panels) and IEC 61439-1/2 tested. Business Impact: Ensures regulatory compliance and safer operation under electrical load. Application: Electrical infrastructure and automation panels requiring certified protection. Feature: Dimensions and included components. Business Impact: Fits standard rack footprints (Width 1000 mm, Height 2200 mm, Depth 800 mm) with supplied frame, rear panel, and gland plates, enabling fast, error-free installation. Application: System integrators valuing plug-and-play setup. Feature: Comprehensive supply and compatibility. Business Impact: Reduces sourcing steps and accelerates commissioning by using factory-provided components. Application: New builds and retrofits where quick deployment matters.
Get a Quick Quote for a Rittal 9680028
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9680028?
Enquire Now
FAQs
The VX 9680.028 system is designed for modular baying with partial doors and internal separation, enabling scalable cabinet configurations. It ships with an enclosure frame, rear panel, and gland plates, which simplifies alignment and reduces install time. This makes it ideal for evolving automation layouts where future expansion or reconfiguration is common.
Key ratings include protection up to IP 54 (dependent on panels) and compliance with IEC 61439-1/2 test standards, ensuring safe operation of power and control cabinets. The enclosure uses a 1.5 mm sheet steel construction with durable primed and powder-coated finishes to meet industrial durability requirements.
Yes. With IP up to 54 depending on panel selection and IEC 61439-1/2 tested performance, VX 9680.028 offers reliable protection against dust and splashes in many factory settings, while its zinc-plated gland plates and textured exterior bolster long-term corrosion resistance.
Comprehensive documentation is available, including the article VX 9680.028 and downloadable manuals (PDF and multilingual instruction sheets). These resources provide assembly guidance, wiring diagrams, and maintenance tips to support installers and maintenance teams throughout the lifecycle.
ROI benefits come from faster commissioning due to plug-and-play components, reduced maintenance through robust protection and finishes, and lifecycle cost savings from modularity that accommodates design changes without replacing cabinets. Industry benchmarks show shorter project lead times and lower total ownership costs when modular enclosures are used.
