Rittal VX 9680.207 Fuse-Switch Enclosure - IP3X
Part Number: 9680207
Manufacturer
Rittal
Part number
9680207
Alt Part Number
VX 9680.207
Quick Summary
Rittal VX 9680.207 fuse-switch enclosure powers safe NH SlimLine distribution in industrial control panels. This design addresses common pain points such as limited panel space, wiring complexity, and the risk of non-compliance when upgrading to higher-current disconnectors. It aligns with IEC 61439-1/2 testing and offers protection up to IP 3X, enhancing reliability in demanding environments. Built with a 1.5 mm sheet steel body and dipcoat-primed frame with powder-coated exterior, it balances rugged durability with low maintenance. The included locating frame accommodates ABB SlimLine or Jean Müller SASIL disconnectors, simplifying installation and future upgrades. For integrators and manufacturers, this enclosure supports scalable electrical infrastructure while delivering repeatable performance and long-term operating efficiency.
Product Information
Extended Description

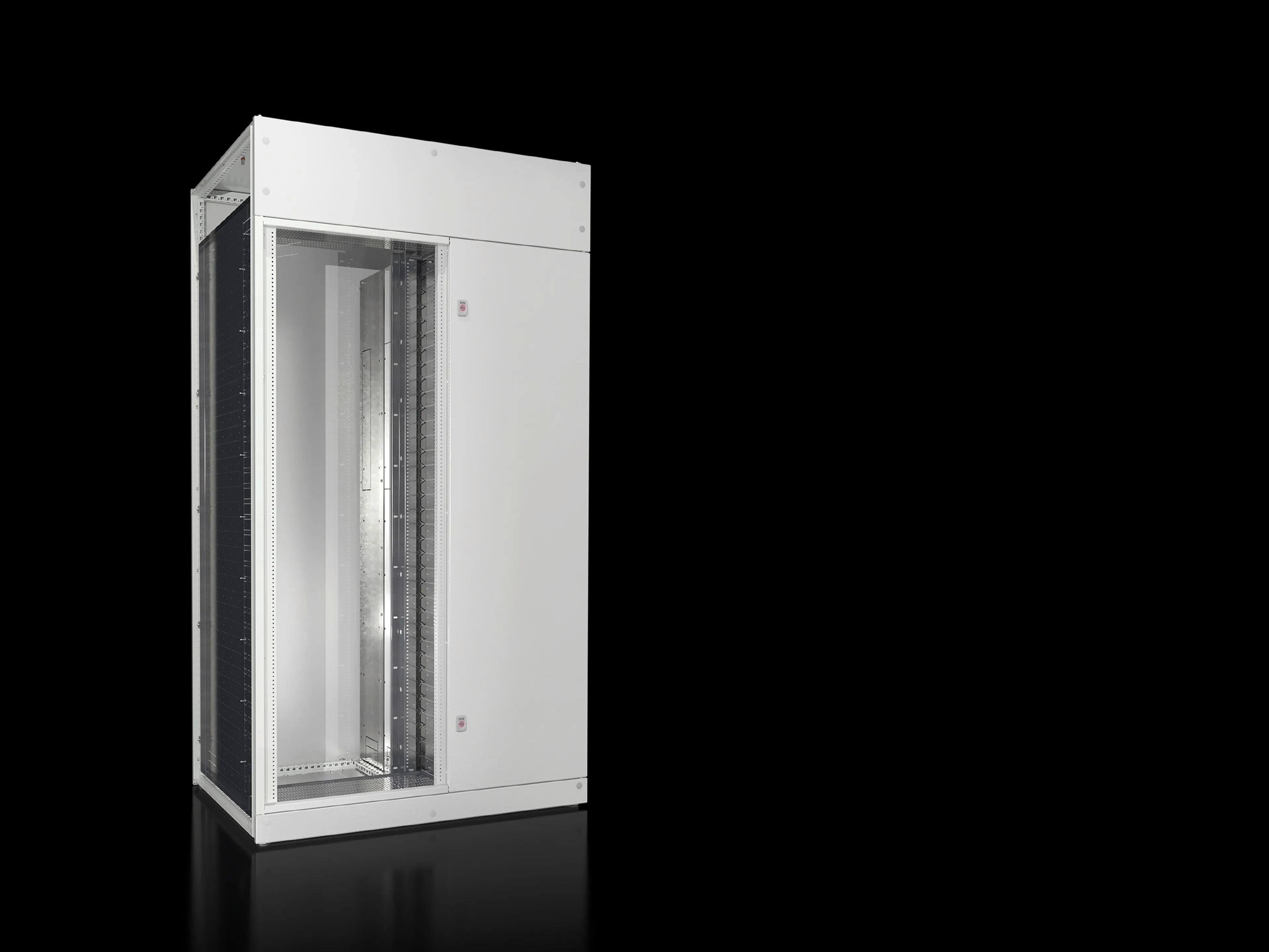

9680207 Rittal: VX Fuse-switch disconnector enclosure, WHD: 1200x2000x800 mm, sheet steel
Article number
VX 9680.207
Material
Sheet steel, 1.5 mm
Surface finish
Enclosure frame: Dipcoat-primed | Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint | Gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure frame | Door | Roof plate | Rear panel | Gland plates | Front trim panels | Lock: 3 mm double-bit | Compartment side panels | Locating frame for disconnectors with fuses (brands ABB SlimLine/Jean Müller SASIL)
Protection category to IEC 60 529
Up to IP 3X, depending on the panels
Test specification
IEC 61 439-1/-2
Dimensions
Width: 1,200 mm | Height: 2,000 mm | Depth: 800 mm
Packs of
1 pc(s).
Weight/pack
149.6 kg
PCF per pack (cradle-to-gate)
368.6 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177937079
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
VX Fuse-switch disconnector enclosure, WHD: 1200x2000x800 mm, sheet steel
Feature: Robust enclosure construction using sheet steel 1.5 mm with dipcoat-primed frame and powder-coated outer surfaces. Business Impact: Enhanced mechanical strength, corrosion resistance, and long service life in factory and outdoor environments. Application: Ideal for high-current power distribution in industrial cabinets where reliability and low maintenance matter. Feature: Precise dimensions and weight optimized for standard rack and floor mounting—WHD 1200x2000x800 mm and 149.6 kg per pack. Business Impact: Predictable handling during installation and consistent fitment within existing enclosures. Application: Suitable for new builds and retrofits in process plants and machine builders. Feature: Comprehensive protection and compliance—IP up to 3X (depending on panels) and IEC 61439-1/-2 testing. Business Impact: Reduces risk of dust ingress, electrical faults, and downtime, supporting safer operations. Application: Critical in harsh environments and regulated facilities. Feature: Complete supply includes enclosure frame, door, roof plate, rear panel, gland plates (zinc-plated), front trim panels, lock, compartment side panels, and locating frame for disconnectors with fuses (ABB SlimLine/Jean Müller SASIL). Business Impact: Streamlined procurement and faster installation. Application: Enables quick upgrades and standardized configurations across multiple panels. Feature: Sustainability and lifecycle data—PCF 368.6 kg CO2 eq per pack (Category B). Business Impact: Helps meet corporate sustainability targets and supports green procurement. Application: Useful for lifecycle assessments and ESG reporting in manufacturing operations.
