Rittal VX 9680.227 Fuse-Switch Enclosure - IP 3X
Part Number: 9680227
Manufacturer
Rittal
Part number
9680227
Alt Part Number
VX 9680.227
Quick Summary
Rittal VX 9680.227 fuse-switch enclosure safely houses NH slimline disconnectors for power distribution in industrial switchgear. This solution addresses space constraints, load handling, and safety compliance in demanding environments. It delivers IP 3X protection (depending on panels) and IEC 61439-1/-2 testing to support reliable performance and regulatory confidence. By integrating a complete baying system with robust materials and a powder-coated exterior, it offers long-term durability and straightforward installation. The enclosure supports ABB SlimLine or Jean Müller SASIL disconnectors and ships with mounting frames and gland plates, simplifying procurement, logistics, and scalable infrastructure for growing electrical assemblies.
Product Information
Extended Description

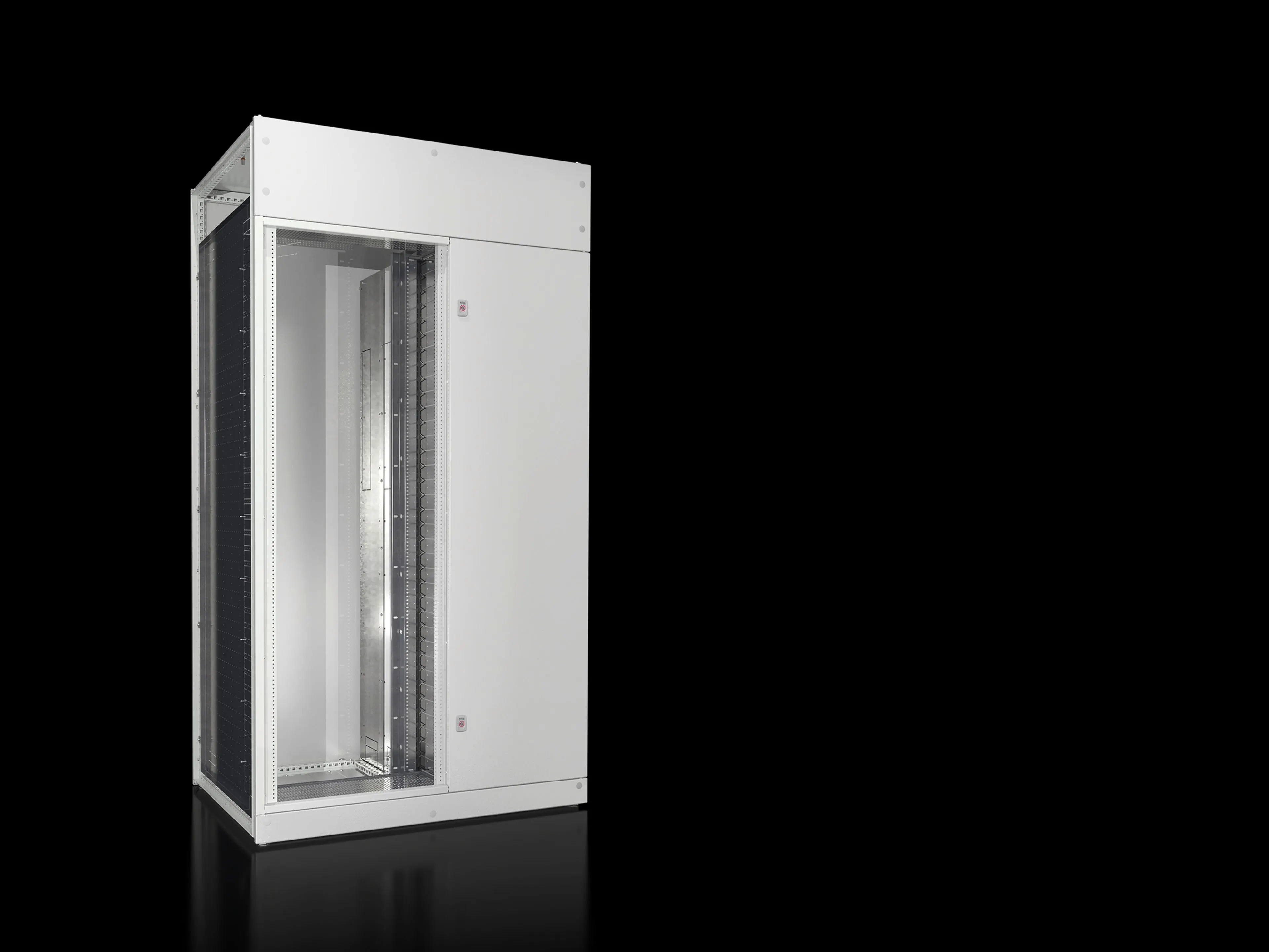

9680227 Rittal: VX Fuse-switch disconnector enclosure, WHD: 1200x2200x800 mm, sheet steel
Article number
VX 9680.227
Material
Sheet steel, 1.5 mm
Surface finish
Enclosure frame: Dipcoat-primed | Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint | Gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure frame | Door | Roof plate | Rear panel | Gland plates | Front trim panels | Lock: 3 mm double-bit | Compartment side panels | Locating frame for disconnectors with fuses (brands ABB SlimLine/Jean Müller SASIL)
Protection category to IEC 60 529
Up to IP 3X, depending on the panels
Test specification
IEC 61 439-1/-2
Dimensions
Width: 1,200 mm | Height: 2,200 mm | Depth: 800 mm
Packs of
1 pc(s).
Weight/pack
158.9 kg
PCF per pack (cradle-to-gate)
391.5 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177937055
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
VX Fuse-switch disconnector enclosure, WHD: 1200x2200x800 mm, sheet steel
Feature: Sheet steel construction at 1.5 mm with dipcoat-primed frame and powder-coated exterior. Business Impact: Delivers robust mechanical protection and extended service life in harsh industrial environments. Application: Ideal for switchgear rooms and process facilities requiring durable enclosures. Feature: BAYING-capable WHD of 1200x2200x800 mm to house NH slimline disconnectors. Business Impact: Enables compact, scalable power distribution layouts with minimal footprint. Application: Useful in panel houses and distribution cabinets handling multiple disconnects. Feature: Protection up to IP 3X (depending on panels) and IEC 61439-1/-2 test compliance. Business Impact: Reduces ingress-related risk and reinforces safety and regulatory adherence. Application: Suitable for indoor installations where dust and incidental moisture are controlled. Feature: Complete supply includes enclosure frame, door, roof plate, rear panel, gland plates, front trim panels, lock, compartment side panels, and disconnectors’ locating frame. Business Impact: Accelerates installation, lowers on-site labor, and ensures consistent fit. Application: Quick deployment in new builds and retrofits with ABB SlimLine/Jean Müller SASIL.Feature: Zinc-plated gland plates and textured exterior with RAL 7035 finish. Business Impact: Improves cable management and outdoor resilience with corrosion protection. Application: Outdoor- or semi-outdoor plants requiring durable finishing and organized cabling.Feature: Weight 158.9 kg per pack and PCF cradle-to-gate 391.5 kg CO2 eq (Category B). Business Impact: Informs handling logistics and sustainability considerations for procurement and lifecycle analysis. Application: Enterprise-grade procurement planning and environmental reporting in manufacturing.
