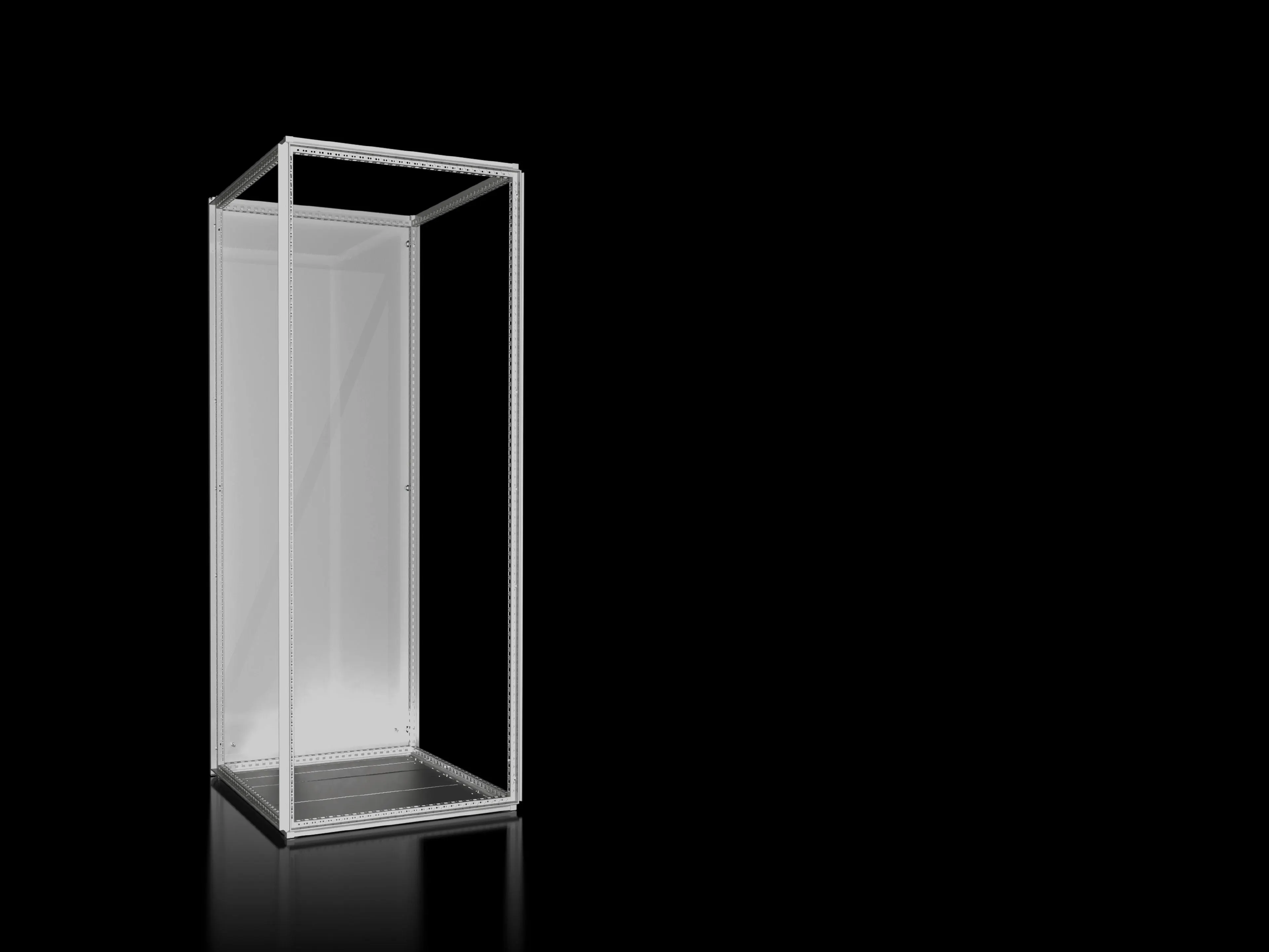

Rittal VX 9680.228 Baying Enclosure Modular, IP54
Part Number: 9680228
Manufacturer
Rittal
Part number
9680228
Alt Part Number
VX 9680.228
Quick Summary
Rittal VX 9680.228 Baying Enclosure is a modular enclosure solution designed for installations with partial doors and internal separation. It helps engineers accommodate evolving line layouts without replacing entire cabinets, reducing downtime and capex. The design meets IEC 61 439-1/-2 testing and provides protection up to IP54 when panels are correctly configured. This enclosure uses a 1.5 mm sheet steel construction and a durable RAL 7035 finish to withstand harsh industrial environments. With an included enclosure frame, rear panel, and gland plates, procurement and installation are faster, while future upgrades remain straightforward and compliant with safety requirements.
Product Information
Article number
VX 9680.228
Material
Sheet steel, 1.5 mm
Surface finish
Enclosure frame: Dipcoat-primed | Rear panel: Dipcoat-primed, powder-coated on the outside, textured paint | Gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure frame | Rear panel | Gland plates
Protection category to IEC 60 529
Up to IP 54, depending on the panels
Test specification
IEC 61 439-1/-2
Dimensions
Width: 1,200 mm | Height: 2,200 mm | Depth: 800 mm
Packs of
1 pc(s).
ECLASS 8.0
27180101
Feature: Baying architecture with partial doors and internal separation. Business impact: Enables phased maintenance and scalable layouts, reducing downtime and retrofit costs. Application: Ideal for modular control panels in machine cells and assembly lines. Feature: 1.5 mm sheet steel construction. Business impact: Delivers robust mechanical strength and long-term durability in demanding environments. Application: Electrical cabinets in factories with dust, humidity, and temperature variations. Feature: Surface finish includes dipcoat-primed enclosure frame, powder-coated rear panel exterior with textured paint, and zinc-plated gland plates. Business impact: Enhances corrosion resistance and reduces maintenance cycles. Application: Suitable for harsh production floors and outdoor-adjacent installations. Feature: Dimensions 1,200 mm wide, 2,200 mm high, 800 mm deep; includes enclosure frame, rear panel, and gland plates. Business impact: Standard footprint simplifies space planning and integration with existing racks. Application: System integrators designing modular automation cabinets. Feature: Protection up to IP54 depending on panels; IEC 61 439-1/-2 test specification. Business impact: Regulatory compliance and reliable environmental protection improve safety audits and risk management. Application: Electrical infrastructure and industrial automation equipment enclosures. Feature: Ready-to-install package with included frame, rear panel, and gland plates; compatibility with other Rittal components. Business impact: Shortens lead times and reduces procurement complexity for OEMs and integrators. Application: Multi-zone control cabinets and scalable automation architectures.
