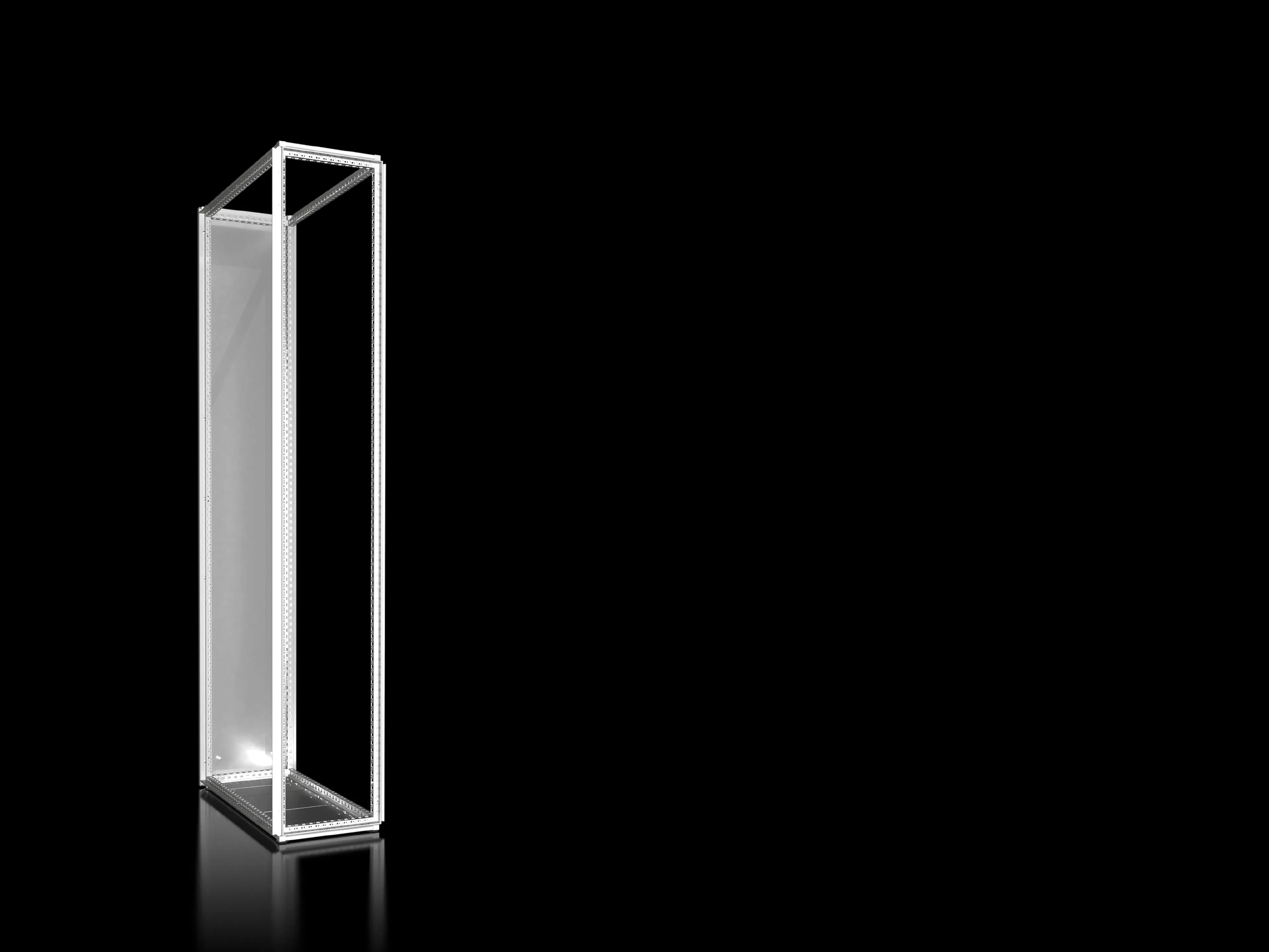

Rittal VX 9680.428 Enclosure - IP54 Protection
Part Number: 9680428
Manufacturer
Rittal
Part number
9680428
Alt Part Number
VX 9680.428
Quick Summary
Rittal VX 9680.428 modular enclosure protects control gear in scalable industrial automation applications. Engineers often struggle with rigid enclosures that can't adapt to partial door configurations or internal separation. The unit meets IEC 61 439-1/-2 test specs and offers protection up to IP 54 depending on panels, using 1.5 mm sheet steel in a robust RAL 7035 powder-coated finish. The package includes the enclosure frame, rear panel, and gland plates, supporting straightforward integration with existing switchgear and control cabinets. With dimensions of 400 mm width, 2,200 mm height and 800 mm depth, it delivers ample internal space while maintaining a compact footprint for modern production lines. This combination delivers reliable, compliant protection with installation flexibility and long-term cost efficiency.
Product Information
Extended Description
9680428 Rittal: VX Modular enclosure, WHdepth 400x2200x800 mm, sheet steel
Article number
VX 9680.428
Material
Sheet steel, 1.5 mm
Surface finish
Enclosure frame: Dipcoat-primed | Rear panel: Dipcoat-primed, powder-coated on the outside, textured paint | Gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure frame | Rear panel | Gland plates
Protection category to IEC 60 529
Up to IP 54, depending on the panels
Test specification
IEC 61 439-1/-2
Dimensions
Width: 400 mm | Height: 2,200 mm | Depth: 800 mm
Packs of
1 pc(s).
Weight/pack
46.1 kg
PCF per pack (cradle-to-gate)
113.6 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177929746
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
VX Modular enclosure, WHdepth 400x2200x800 mm, sheet steel
Feature: Modular baying design with partial doors and internal separation. Business Impact: Accelerates deployment and future changes, reducing downtime during upgrades. Application: Scalable control cabinets in automation lines and manufacturing cells. The design enables quick reconfigurations without replacing the entire enclosure, translating to shorter project cycles and lower lifecycle costs. Feature: Material and finish. Business Impact: Combines mechanical strength with corrosion resistance, lowering maintenance and replacement costs. Application: Harsh factory floors and outdoor-adjacent installations where durability matters. The 1.5 mm sheet steel, dipcoat-primed frame, and powder-coated exterior in RAL 7035, along with zinc-plated gland plates, deliver long-term reliability and lower total cost of ownership. Feature: Protection and standards. Business Impact: Ensures regulatory compliance and predictable performance in varying environments. Application: Electrical cabinets in process industries and machine-building environments where IP protection up to 54 is required. The enclosure is tested to IEC 61 439-1/-2, providing confidence in duty cycles and humidity resistance. Feature: Inclusions and installation. Business Impact: Speeds up installation with ready-to-use components and straightforward integration. Application: Retrofit projects and new builds where a complete package (frame, rear panel, gland plates) reduces sourcing effort. Feature: Footprint and sustainability. Business Impact: Optimizes space planning and provides environmental data for procurement. Application: Design teams planning modular layouts; packaging includes 400x2200x800 mm dimensions and a cradle-to-gate PCF of 113.6 kg CO2 eq (Cat B) for sustainability reporting.
Get a Quick Quote for a Rittal 9680428
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9680428?
Enquire Now
FAQs
The VX 9680.428 ships with the enclosure frame, rear panel, and gland plates, allowing rapid on-site assembly. Its 400 mm width and 2,200 mm height fit standard racks, and its modular baying design supports partial doors and internal separation, enabling seamless integration with existing switchgear while preserving clear access for maintenance and future expansions.
The enclosure uses 1.5 mm sheet steel with a dipcoat-primed frame and powder-coated exterior in RAL 7035, and gland plates are zinc-plated. It offers protection up to IP 54 depending on panel configuration and has passed IEC 61 439-1/-2 test specs for predictable, durable performance in industrial environments.
Ideal for automation control panels in manufacturing lines, process industries, and machine builders, the VX 9680.428 supports modular layouts, internal separation, and partial-door configurations. It provides a robust housing for control electronics, power distribution, and instrumentation while enabling scalable upgrades as systems evolve.
The enclosure is tested to IEC 61 439-1/-2 (aligned with IEC 61439-1/2 series) and categorized under ETIM EC000261 and ECLASS 27180101, aiding procurement systems and ensuring compatibility with industry classifications and compliance workflows.
The product provides a cradle-to-gate PCF of 113.6 kg CO2 eq (Cat B), reflecting its weight and material usage. This helps buyers evaluate sustainability in procurement decisions, alongside its compact footprint and modular design that supports longer service life and reduced retrofit waste.
