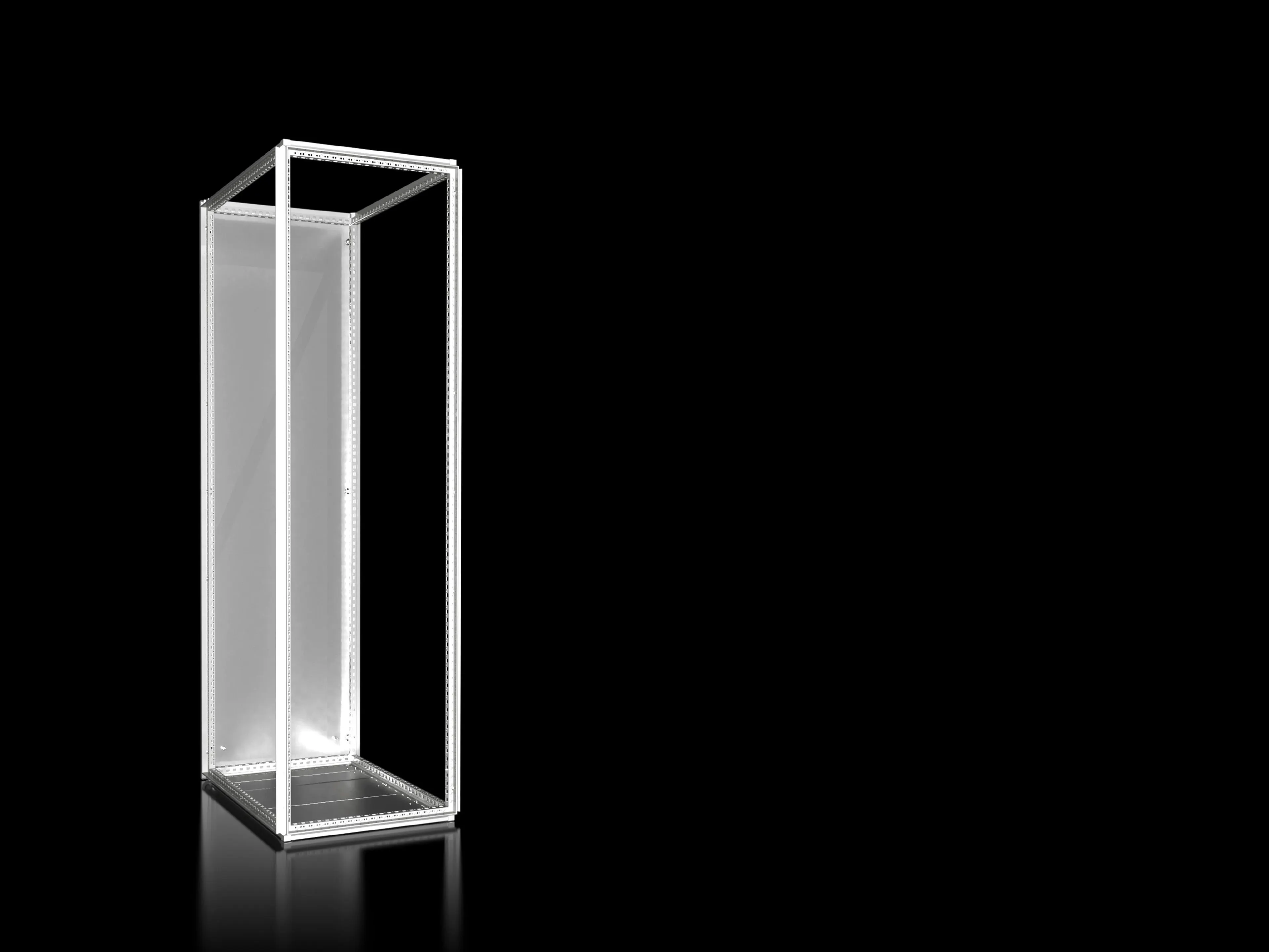

Rittal VX 9680.608 Modular Enclosure - IP54
Part Number: 9680608
Manufacturer
Rittal
Part number
9680608
Alt Part Number
VX 9680.608
Quick Summary
Rittal VX 9680.608 modular enclosure protects control gear in industrial automation applications. This cabinet system helps engineers optimize space with modular doors and internal separation, reducing footprint while improving serviceability. The design leverages IEC 61 439-1/-2 test specifications and an IP rating up to IP 54 (depending on panels), ensuring reliable performance in challenging environments. With a powder-coated exterior and dip-coated frame, it balances durability with cost-effective maintenance. For procurement teams, the VX 9680.608 offers predictable lifecycle costs, straightforward on-site installation, and scalable capacity to accommodate evolving control architectures and future expansions.
Product Information
Extended Description
9680608 Rittal: VX Modular enclosure, WHdepth 600x2000x800 mm, sheet steel
Article number
VX 9680.608
Material
Sheet steel, 1.5 mm
Surface finish
Enclosure frame: Dipcoat-primed | Rear panel: Dipcoat-primed, powder-coated on the outside, textured paint | Gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure frame | Rear panel | Gland plates
Protection category to IEC 60 529
Up to IP 54, depending on the panels
Test specification
IEC 61 439-1/-2
Dimensions
Width: 600 mm | Height: 2,000 mm | Depth: 800 mm
Packs of
1 pc(s).
Weight/pack
53.7 kg
PCF per pack (cradle-to-gate)
132.3 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177929593
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
VX Modular enclosure, WHdepth 600x2000x800 mm, sheet steel
Feature: Robust sheet steel construction provides durable enclosure for harsh factory floors. Business Impact: Enhances equipment protection and reduces downtime due to weathering or impact. Application: Ideal for industrial automation controllers in manufacturing lines. Feature: 1.5 mm sheet steel with dipcoat-primed frame and powder-coated rear panel surface finish. Business Impact: Prolonged enclosure life with easy maintenance and better cleanliness. Application: Environments requiring corrosion resistance and simple repainting schedules. Feature: Size and layout—600 mm width, 2,000 mm height, 800 mm depth. Business Impact: Predictable rack fitment and straightforward cable management. Application: Control cabinets with standard rack footprints. Feature: Supplied components—enclosure frame, rear panel, gland plates. Business Impact: Reduces purchase complexity and saves installation time. Application: Quick, plug-and-play setup for panel assemblies. Feature: Protection up to IP 54 (panel-dependent). Business Impact: Compliance with basic dust and splash protection while enabling modular customization. Application: Industrial environments where occasional exposure to dust or moisture is possible. Feature: Internal separation and partial doors compatibility. Business Impact: Flexible access control and streamlined maintenance workflows. Application: Process automation skids requiring selective access and compartmentalization.
Get a Quick Quote for a Rittal 9680608
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9680608?
Enquire Now
FAQs
VX 9680.608 supports modular door options and internal separation, enabling selective access and compartmentalized zones. This flexibility simplifies maintenance, reduces downtime during field servicing, and helps isolate critical circuits from auxiliary wiring, all while preserving a compact footprint in automated lines.
The enclosure measures 600 mm wide, 2,000 mm high, and 800 mm deep. It is constructed from sheet steel 1.5 mm with a dipcoat-primed frame and a powder-coated outer rear panel finished in textured paint, including zinc-plated gland plates for reliable cable ingress protection.
Protection up to IP 54 is achievable, depending on the chosen panels and sealing arrangements. This enables adequate dust and moisture resistance for many industrial environments while allowing modular customization for higher protection needs with additional accessories.
The enclosure references IEC 61 439-1/-2 test specifications and is designed for use with a system that meets related IEC requirements. This ensures reliable electrical enclosure performance in typical automation and control cabinet applications.
Choosing the VX 9680.608 delivers predictable lifecycle costs through durable construction, modular door configurations, and internal separation that streamline maintenance. Its ready-to-assemble components reduce installation time, while the included frame, rear panel, and gland plates lower procurement overhead and support scalable automation architectures.
