Rittal VX 9680.628 Enclosure - IP54 Protection (Modular)
Part Number: 9680628
Manufacturer
Rittal
Part number
9680628
Alt Part Number
VX 9680.628
Quick Summary
Rittal VX 9680.628 Enclosure provides modular control cabinet protection for industrial electrical installations. Facility teams often struggle to balance rugged environmental protection with the need for flexible door configurations and clean internal separation for wiring. The enclosure is tested to IEC 61 439-1/-2 and offers protection up to IP54, with a dipcoat-primed frame and powder-coated exterior that withstands demanding plant conditions. By delivering a complete kit with gland plates and straightforward assembly, it reduces installation time and maintenance costs, enabling scalable automation deployments and compliant, reliable process control across manufacturing facilities.
Product Information
Extended Description

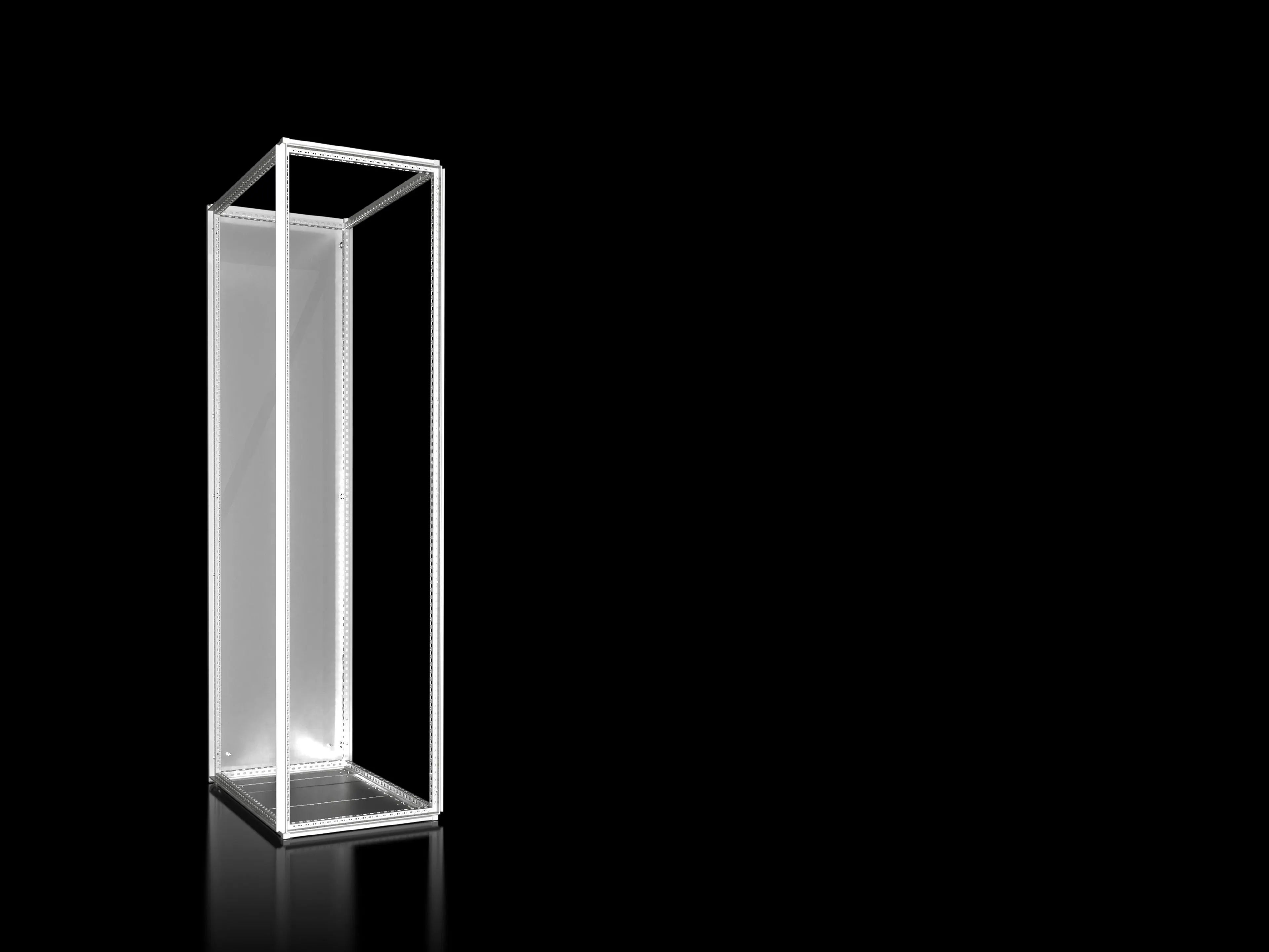

9680628 Rittal: VX Modular enclosure, WHdepth 600x2200x800 mm, sheet steel
Article number
VX 9680.628
Material
Sheet steel, 1.5 mm
Surface finish
Enclosure frame: Dipcoat-primed | Rear panel: Dipcoat-primed, powder-coated on the outside, textured paint | Gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure frame | Rear panel | Gland plates
Protection category to IEC 60 529
Up to IP 54, depending on the panels
Test specification
IEC 61 439-1/-2
Dimensions
Width: 600 mm | Height: 2,200 mm | Depth: 800 mm
Packs of
1 pc(s).
Weight/pack
55.8 kg
PCF per pack (cradle-to-gate)
137.5 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177929715
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
VX Modular enclosure, WHdepth 600x2200x800 mm, sheet steel
Modular VX design offers flexible configurations to accommodate partial doors and internal separation. This reduces rework and enables tailored cabinet layouts in high-mkid automation lines, supporting control panels that must adapt to evolving processes. Sheet steel construction (1.5 mm) with a dipcoat-primed frame and powder-coated exterior delivers robust corrosion resistance, extending service life in dusty or humid environments while reducing replacement cycles. IP54 protection (depending on panels) protects sensitive electronics from dust ingress and water splashes, increasing uptime in production areas and enabling compliant automation deployments. Included gland plates and rear panel simplify wiring and enclosure commissioning, cutting installation time and reducing field labor costs. The IEC 61 439-1/-2 test specification provides documented reliability, supporting audits and maintenance planning. Colour in RAL 7035 supports standardized plant aesthetics and asset tagging, aiding visual management and safety.
Get a Quick Quote for a Rittal 9680628
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9680628?
Enquire Now
FAQs
The VX 9680.628 is a modular enclosure designed to accommodate partial doors and internal separation, enabling tailored configurations for complex control panels. This reduces wiring interference and simplifies future reconfigurations, making it ideal for evolving automation lines and frequent maintenance cycles.
VX 9680.628 uses sheet steel 1.5 mm with a dipcoat-primed frame and powder-coated exterior, plus zinc-plated gland plates. This combination delivers strong corrosion resistance and long service life in harsh industrial environments, reducing maintenance and replacement costs over the cabinet’s lifecycle.
Yes. It is tested to IEC 61 439-1/-2 and offers IP protection up to IP54, depending on the chosen panels. This ensures adequate protection against dust and water ingress for reliable operation in manufacturing and process environments.
Common applications include housing for control gear, electrical distribution, and automation cabinets in factory automation, process control, and packaging lines. Its modular design supports scalable deployments and standardized asset management across multiple production cells.
VX 9680.628 ships with the enclosure frame, rear panel, and gland plates included, simplifying wiring and panel mounting. Plan for proper cable routing and gland plate configurations to maximize internal space and maintain IP protection across the installed configuration.
