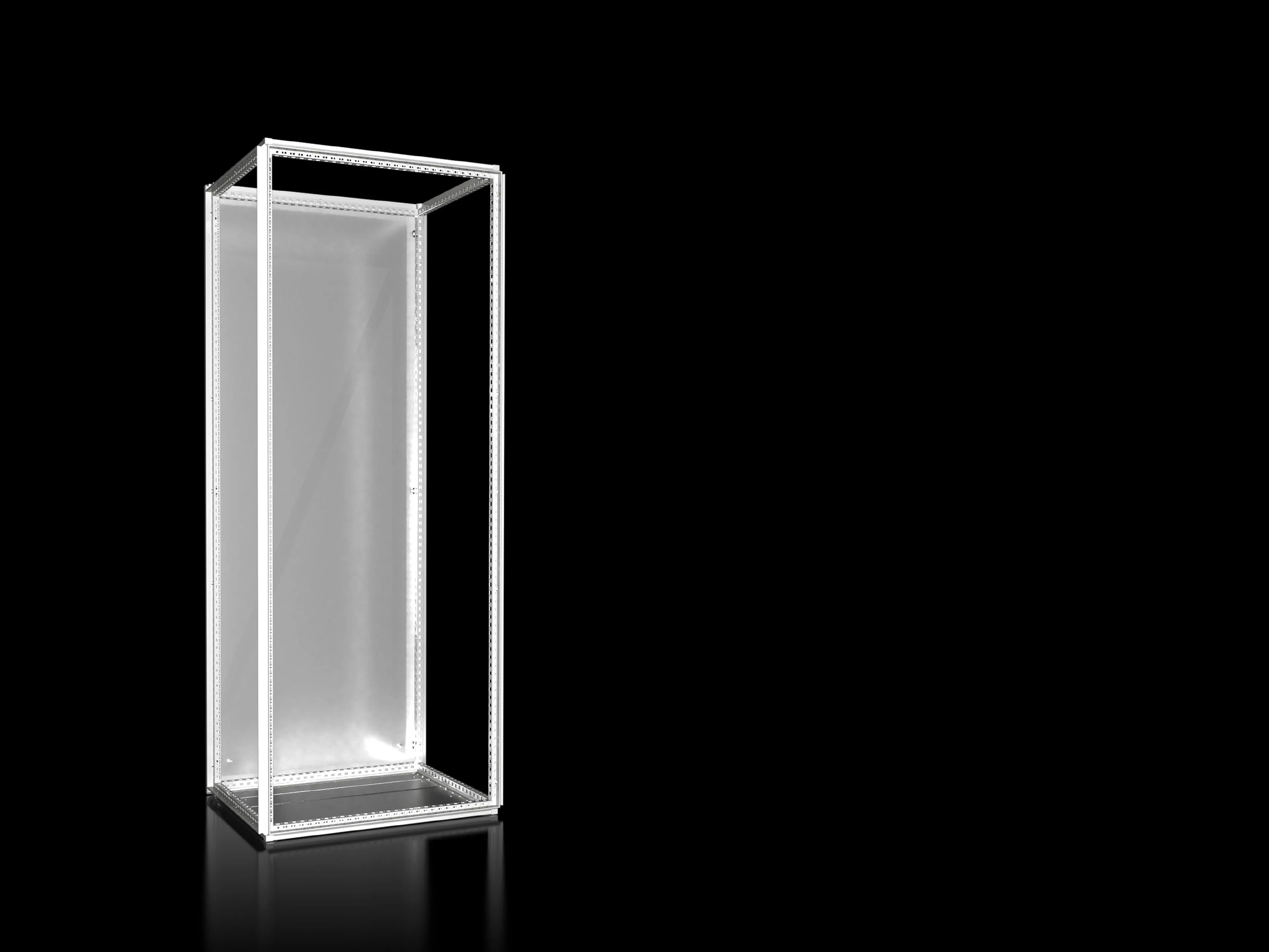

Rittal VX 9680.806 Enclosure for Industrial Control - IP 54
Part Number: 9680806
Manufacturer
Rittal
Part number
9680806
Alt Part Number
VX 9680.806
Quick Summary
Rittal VX 9680.806 modular enclosure shields electrical control panels in demanding industrial environments. It provides a robust housing solution that reduces installation complexity and accelerates commissioning. This enclosure is tested to IEC 61 439-1/-2 and supports IP protection up to 54 depending on panel configurations, with ETIM EC000261 and ECLASS 27180101 classifications for procurement consistency. The design leverages a powder-coated exterior and dip-coated frame to withstand harsh conditions, while including gland plates for neat cabling. For businesses, this translates to improved uptime, lower maintenance costs, and a scalable, modular platform that fits evolving automation needs while supporting efficient serviceability.
Product Information
Extended Description
9680806 Rittal: VX Modular enclosure, WHdepth 800x2000x600 mm, sheet steel
Article number
VX 9680.806
Material
Sheet steel, 1.5 mm
Surface finish
Enclosure frame: Dipcoat-primed | Rear panel: Dipcoat-primed, powder-coated on the outside, textured paint | Gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure frame | Rear panel | Gland plates
Protection category to IEC 60 529
Up to IP 54, depending on the panels
Test specification
IEC 61 439-1/-2
Dimensions
Width: 800 mm | Height: 2,000 mm | Depth: 600 mm
Packs of
1 pc(s).
Weight/pack
61 kg
PCF per pack (cradle-to-gate)
150.3 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177929708
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
VX Modular enclosure, WHdepth 800x2000x600 mm, sheet steel
Feature: Modular VX design with enclosure frame, rear panel, and gland plates included → Business Impact: Enables rapid installation and simplified future upgrades, reducing downtime during expansion or reconfiguration → Application: Ideal for control cabinets in growing production lines where quick reassembly and modularity are essential. Feature: Generous interior space with dimensions 800 mm width x 2000 mm height x 600 mm depth → Business Impact: Provides ample room for drives, controllers, and power wiring, improving cable management and airflow → Application: Suitable for automation panels housing multiple I/O modules and power supplies. Feature: Sheet steel construction at 1.5 mm thickness → Business Impact: Delivers robust mechanical protection against impact, dust, and moisture exposure → Application: Long-term reliability in factory floors, with reduced risk of panel damage during maintenance. Feature: IP up to 54 protection (panels-dependent) and IEC 61 439-1/-2 tested → Business Impact: Ensures regulatory-compliant enclosure protection for demanding environments, lowering risk of equipment failure → Application: Critical for environments with dust, humidity, or washdown exposure. Feature: Surface finish with dipcoat priming and powder-coated exterior plus zinc-plated gland plates → Business Impact: Extends service life through corrosion resistance and durable exterior finish → Application: Outdoor or semi-exposed installations where longevity matters. Feature: Includes accessories and documented compatibility with ETIM EC000261 and ECLASS 27180101 → Business Impact: Streamlines procurement and part matching across ERP systems → Application: Simplifies sourcing and warehouse planning for industrial cabinets.
Get a Quick Quote for a Rittal 9680806
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9680806?
Enquire Now
FAQs
The VX 9680.806 ships with an enclosure frame, rear panel, and gland plates, all sized for 800x2000x600 mm footprints. Its modular design supports partial doors and internal separation, enabling straightforward mounting on standard 19-inch rails and existing panel layouts, which minimizes site času and accelerates commissioning without sacrificing accessibility for future upgrades.
It provides protection up to IP 54, depending on the panel configuration, and is tested according to IEC 61 439-1/-2. The enclosure uses sheet steel of 1.5 mm with a dip coat primed frame and powder-coated exterior, offering reliable protection for electrical gear while maintaining serviceability and compliance with common industrial standards.
Yes. The IP 54 rating (panels dependent) plus a textured exterior finish provides dust and moisture resistance appropriate for many factory floors. The 800x2000x600 mm footprint supports larger control modules, while the gland plates and frame design enable neat cabling and easy maintenance, making it a strong choice for rugged automation installations.
The enclosure aligns with ETIM 9 EC000261 and ECLASS 8.0 27180101 classifications, supporting consistent procurement data across ERP systems. The product also adheres to IEC 61 439-1/-2 testing and uses standard EAN 4028177929708 for easy identification in catalog and supply chains.
With a 61 kg pack weight and a PCF of 150.3 kg CO2 eq (Cat B), the enclosure supports a durable, low-maintenance solution that minimizes downtime and replacement costs. The included gland plates and robust powder-coated finish reduce service interruptions, while modularity helps accommodate future expansions, delivering lower total cost of ownership over the product life cycle.
