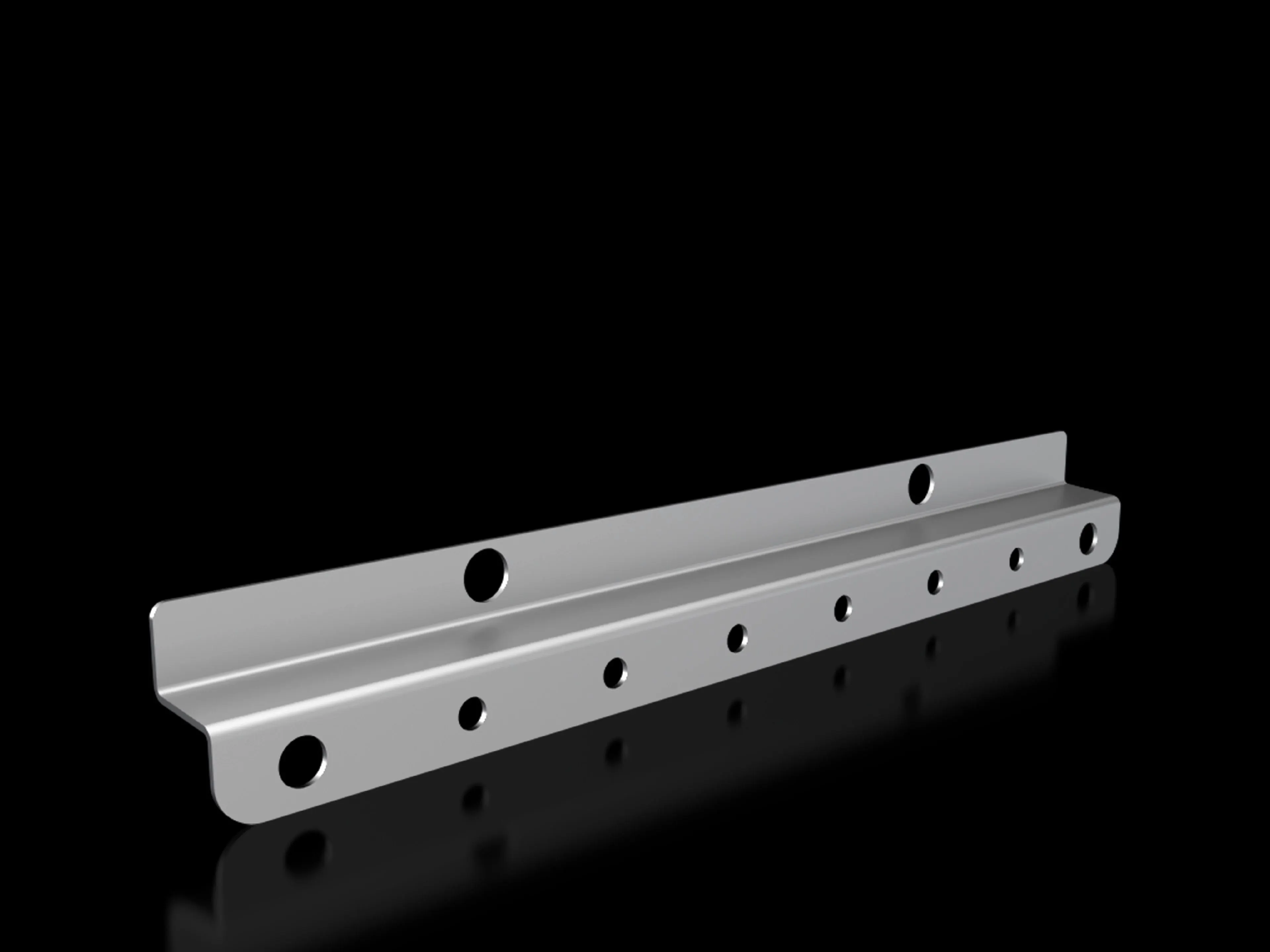

Rittal 9681204 Perforated mounting strip - 25 mm pitch
Part Number: 9681204
Manufacturer
Rittal
Part number
9681204
Alt Part Number
SV 9681.204
Quick Summary
Rittal 9681204 perforated mounting strip is designed for retrospective external mounting on partial doors, enabling flexible accessory placement for cable ducts and conduit holders. Engineers often struggle with aligning brackets and maintaining clean rear-door layouts in tight enclosures, which can lead to drifts in cable management and increased maintenance time. This solution leverages a 25 mm pitch with 4.5 mm holes and uses 1 mm sheet steel, zinc-plated for durability, aligning with CE-like expectations in industrial hardware and supporting long-term service in harsh environments. By standardizing mounting on rear doors, you gain faster install times, easier upgrades, and improved traceability for field service. The product also supports sustainable goals with a cradle-to-gate PCF value and comes with necessary assembly parts for quick deployment on enclosure fleets.
Product Information
Extended Description
9681204 Rittal: SV Perforated mounting strip, L: 198 mm, for partial door WH: 400x150-800 mm
Article number
SV 9681.204
Product description
For retrospective external mounting on partial doors. The perforated mounting strips have a 25 mm pitch pattern of holes and may be used for mounting individual accessories such as cable ducts, conduit holders etc. on the rear of the door. Hole diameter of perforated mounting strip: 4.5 mm.
Material
Sheet steel, 1 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
Length
198 mm
Assembly instruction
For 1000 mm enclosure width: 1 x 9681.204 and 1 x 9681.206
Dimensions
Length: 198 mm
To fit
Width: 400 mm
OUT_SUITABLE_FOR_PARTIAL_DOOR_HEIGHTS
200 ‐ 800 mm
Packs of
10 pc(s).
Weight/pack
0.64 kg
PCF per pack (cradle-to-gate)
2.4 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177930353
ETIM 9
EC000386
ECLASS 8.0
27400501
Product description
SV Perforated mounting strip, L: 198 mm, for partial door WH: 400x150-800 mm
Feature: 25 mm hole pitch with 4.5 mm holes for flexible rear mounting. Business Impact: Enables precise, repeatable mounting of accessories such as cable ducts and conduit holders on partial doors, reducing misalignment and installation time. Application: Ideal for WH widths 400 mm to 800 mm and for retrofitting existing enclosures in control rooms and process plants. Long-tail keywords integrated: partial-door mounting, rear-door accessories, cable duct mounting, conduit holder mounting.Feature: Sheet steel 1 mm, zinc-plated finish. Business Impact: Delivers corrosion resistance and structural integrity in industrial environments, lowering maintenance costs and extending service life. Application: Suitable for factory floors, panel rooms, and outdoor-rated enclosures where exposure to moisture is possible. Long-tail keywords integrated: zinc-plated mounting hardware, durable enclosure accessories, industrial steel mounting strips.Feature: Length 198 mm with assembly parts included. Business Impact: Streamlines logistics and reduces additional purchases; simple installation for single or paired configurations on 1000 mm widths. Application: Use with 9681.204 for 1000 mm enclosures or with 9681.206 as needed. Long-tail keywords integrated: enclosure width compatibility, installation parts included, quick retrofit.Feature: Compatibility guidance for 1000 mm enclosures (1 x 9681.204 + 1 x 9681.206). Business Impact: Clear build instructions prevent ordering errors and speed up multi-item deployments, supporting scalable projects. Application: Useful in new builds and retrofits across medium-to-large switchgear closets. Long-tail keywords integrated: assembly instruction, enclosure width compatibility, scalable mounting solutions.Feature: Packaging data and sustainability (Packs of 10, weight per pack 0.64 kg; PCF 2.4 kg CO2 eq per pack, Cat B). Business Impact: Predictable logistics and lower environmental footprint help Procurement and Sustainability teams meet targets without compromising performance. Application: Facilitates stock management and green procurement programs for automation projects. Long-tail keywords integrated: PCF data, cradle-to-gate emissions, sustainable hardware.
Get a Quick Quote for a Rittal 9681204
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9681204?
Enquire Now
FAQs
SV 9681.204 is 198 mm long and is designed for partial-door mounting on WH widths 400 mm to 800 mm. For 1000 mm enclosures, pair it with 9681.206 as per the assembly instruction to achieve the required mounting layout.
The strip features a 25 mm hole pitch with 4.5 mm diameter holes. It is made from 1 mm sheet steel and finished with zinc plating for corrosion resistance in industrial environments.
Yes. The 25 mm pitch and 4.5 mm holes are designed to accommodate various accessories such as cable ducts and conduit holders on the rear of partial doors, enabling flexible, clutter-free wiring layouts.
The provided data confirms material, finish, and dimensions but does not explicitly state CE or IP ratings. For regulatory compliance, verify on the datasheet or the product page; many enclosure accessories meet typical CE and IP expectations in industrial settings.
Packs contain 10 pieces with a total weight of 0.64 kg per pack, and the cradle-to-gate PCF is 2.4 kg CO2 eq (Cat B). This supports sustainability targets in procurement without compromising performance.
