Rittal SV 9681.206 Perforated Mounting Strip - 25 mm Pitch
Part Number: 9681206
Manufacturer
Rittal
Part number
9681206
Alt Part Number
SV 9681.206
Quick Summary
The Rittal SV 9681.206 perforated mounting strip enables external rear mounting on partial doors in enclosure assemblies. This solution addresses the common challenge of cluttered door backs and inconsistent accessory placement, providing a clean, retrofit-ready mounting surface. While lightweight, it is built from 1 mm sheet steel with a zinc-plated finish for durable operation in demanding environments. Standardized hole pitch at 25 mm and 4.5 mm holes support cable ducts and conduit holders, while ETIM EC000386 and ECLASS 27400501 references streamline procurement. For system integrators, compatibility with 600 mm wide doors and 150–800 mm door heights reduces custom fabrication, delivering faster installations and lower total cost of ownership. This accessory complements Rittal enclosures and supports scalable, modular layouts.
Product Information
Extended Description
9681206 Rittal: SV Perforated mounting strip, L: 398 mm, for partial door WH: 600x150-800 mm
Article number
SV 9681.206
Product description

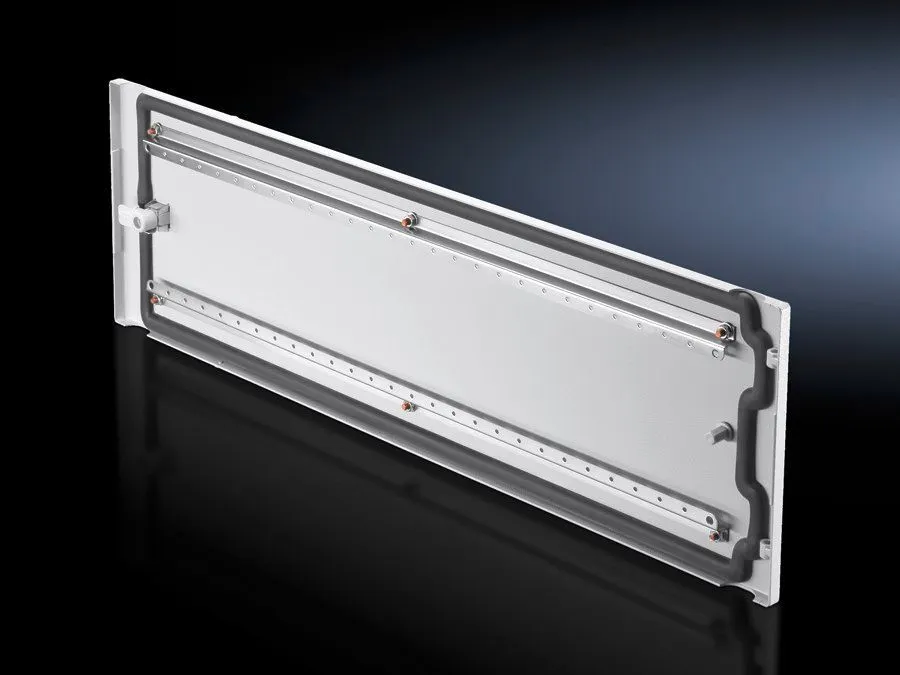

For retrospective external mounting on partial doors. The perforated mounting strips have a 25 mm pitch pattern of holes and may be used for mounting individual accessories such as cable ducts, conduit holders etc. on the rear of the door. Hole diameter of perforated mounting strip: 4.5 mm.
Material
Sheet steel, 1 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
Length
398 mm
Assembly instruction
For 1000 mm enclosure width: 1 x 9681.204 and 1 x 9681.206
Dimensions
Length: 398 mm
To fit
Width: 600 mm
OUT_SUITABLE_FOR_PARTIAL_DOOR_HEIGHTS
150 ‐ 800 mm
Packs of
10 pc(s).
Weight/pack
1.28 kg
PCF per pack (cradle-to-gate)
4.9 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177930049
ETIM 9
EC000386
ECLASS 8.0
27400501
Product description
SV Perforated mounting strip, L: 398 mm, for partial door WH: 600x150-800 mm
The 25 mm hole pitch standardizes accessory mounting along the rear of doors, enabling predictable layouts that reduce design time and misplacement during retrofits. With a 1 mm sheet steel body and zinc-plated finish, the strip delivers durable, corrosion-resistant support for cable ducts and conduit holders in harsh industrial environments. Measuring 398 mm in length and designed for 600 mm wide doors, it fits neatly into standard enclosure configurations while accommodating door heights from 150 to 800 mm, minimizing the need for custom fabrications. Packaged with assembly parts, it simplifies installation and speeds up project timelines, and it pairs seamlessly with other Rittal components, including the 9681.204 strip for wider enclosures. The cradle-to-gate PCF of 4.9 kg CO2 eq per pack (Category B) supports sustainability reporting and responsible procurement.
Get a Quick Quote for a Rittal 9681206
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9681206?
Enquire Now
FAQs
For a 1000 mm enclosure width, use 1 x 9681.204 and 1 x 9681.206; both items are assembly-part compatible to create a continuous mounting surface on the rear of the door. Follow the provided assembly instructions to ensure even distribution and secure mounting of accessories such as cable ducts.
SV 9681.206 measures 398 mm in length with a 25 mm hole pitch and 4.5 mm hole diameter. It is made from 1 mm sheet steel and has a zinc-plated finish, designed to mount on doors with a width of 600 mm and door heights from 150 to 800 mm.
Yes. The strip is specifically specified to fit doors of 600 mm width and supports partial-door heights in the 150–800 mm range, making it ideal for retrofits and modular layouts in Rittal enclosure systems.
The mounting strip is produced from 1 mm sheet steel and finished with a zinc-plated coating for enhanced durability and corrosion resistance in industrial environments, with assembly parts included for straightforward installation.
Each pack contains 10 pieces, with a total weight of 1.28 kg per pack. The cradle-to-gate PCF is 4.9 kg CO2 eq per pack (Category B), supporting sustainability reporting. The product is cataloged with ETIM EC000386 and ECLASS 27400501 references for efficient procurement.
