Rittal SV 9681.208 Perforated Mounting Strip - 25 mm hole pitch
Part Number: 9681208
Manufacturer
Rittal
Part number
9681208
Alt Part Number
SV 9681.208
Quick Summary
The Rittal SV 9681.208 perforated mounting strip is designed for retrospective external mounting on partial doors in enclosure environments. This enables flexible accessory attachment such as cable ducts and conduit holders directly on the rear of cabinet doors, simplifying cable management. While the data does not specify SIL, CE, or IP ratings for this accessory, it is built from zinc-plated 1 mm sheet steel and is classified under ETIM EC000386 and ECLASS 27400501, supporting reliable integration in standard industrial systems. The product demonstrates business value by enabling quick retrofits, reducing installation time, and improving maintenance access, while aligning with common enclosure infrastructure practices. For procurement teams, its compatibility with 800 mm wide doors and 150–800 mm height ranges complements broader enclosure strategies and sustainability goals.
Product Information
Extended Description

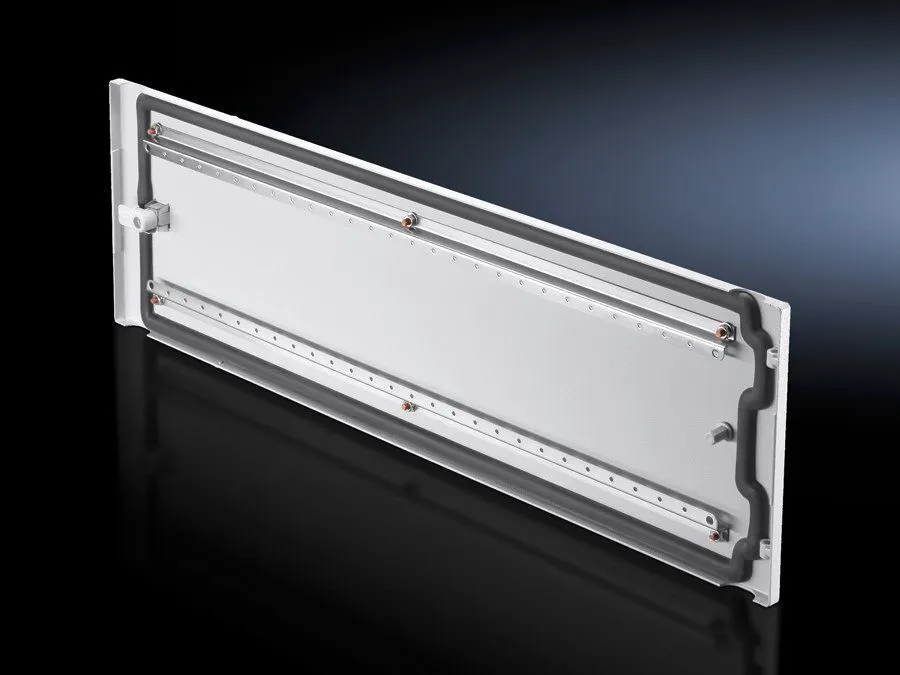

9681208 Rittal: SV Perforated mounting strip, L: 598 mm, for partial door WH: 800x150-800 mm
Article number
SV 9681.208
Product description
For retrospective external mounting on partial doors. The perforated mounting strips have a 25 mm pitch pattern of holes and may be used for mounting individual accessories such as cable ducts, conduit holders etc. on the rear of the door. Hole diameter of perforated mounting strip: 4.5 mm.
Material
Sheet steel, 1 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
Length
598 mm
Dimensions
Length: 598 mm
To fit
Width: 800 mm
OUT_SUITABLE_FOR_PARTIAL_DOOR_HEIGHTS
150 ‐ 800 mm
Packs of
10 pc(s).
Weight/pack
1.82 kg
PCF per pack (cradle-to-gate)
6.9 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
39269097
EAN
4028177930032
ETIM 9
EC000386
ECLASS 8.0
27400501
Product description
SV Perforated mounting strip, L: 598 mm, for partial door WH: 800x150-800 mm
Feature: 25 mm pitch perforated mounting strip enables adjustable placement of accessories along the door. Business Impact: Flexible configurations reduce the need for custom brackets and simplify future rework. Application: Mount cable ducts and conduit holders on the rear of partial doors in WH 800x150-800 mm enclosures. Feature: 1 mm sheet steel with zinc-plated surface delivers durability and corrosion resistance. Business Impact: Longer service life and lower maintenance costs in harsh environments. Application: Ideal for front-facing enclosure faces exposed to routine handling and industry-standard mounting patterns. Feature: Length of 598 mm and width to fit WH 800 mm doors ensures compatibility with common Rittal door sizes. Business Impact: Seamless integration reduces custom fabrication and supports scalable inventory. Application: Retrofit installations on standard 800 mm wide doors across modular cabinet families. Feature: Packs of 10 with weight 1.82 kg per pack and PCF 6.9 kg CO2 eq (Cat B). Business Impact: Predictable logistics and improved lifecycle sustainability reporting for procurement. Application: Fast purchase planning for project rollouts and compliance documentation. Feature: Includes assembly parts for straightforward installation. Business Impact: Minimizes downtime and accelerates commissioning. Application: On-site retrofits and new builds where rear-door mounting is required. Feature: Hole diameter 4.5 mm supports common mounting accessories. Business Impact: Broad accessory compatibility reduces part variety and simplifies BOM. Application: Attach standard cable ducts and conduit fixtures to the perforated strip.
Get a Quick Quote for a Rittal 9681208
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9681208?
Enquire Now
FAQs
Install the perforated mounting strip on doors within the WH 800x150-800 mm range. The strip length is 598 mm and uses a 25 mm hole pitch with 4.5 mm diameter holes. Use the included assembly parts to secure the strip along the door edge, aligning mounting points with your chosen accessory positions for cable ducts or conduit holders.
The 25 mm hole pitch and 4.5 mm hole diameter are designed to accommodate standard Rittal rear-door accessories such as cable ducts and conduit holders. This enables flexible, modular mounting without requiring custom brackets, streamlining installation and future reconfigurations.
The provided data does not specify SIL, CE, or IP ratings for SV 9681.208. It is constructed from 1 mm zinc-plated sheet steel and is classified under ETIM EC000386 and ECLASS 27400501, which supports standard enclosure compatibility. For environments requiring specific certifications, verify your regional compliance documentation or consult Rittal for confirmation.
Each pack includes PCF data: 6.9 kg CO2 eq (Category B) per pack, reflecting cradle-to-gate environmental impact. The pack contains 10 mounting strips and assembly parts, offering predictable procurement planning and traceability for sustainability reporting within industrial projects.
Leverage the 598 mm strip length with 800 mm range doors to minimize bracket fabrication and enable on-site retasking of cable runs. Use the zinc-plated steel to resist corrosion in typical enclosure environments, reducing maintenance frequency. Standardize on the 25 mm pitch for future accessory additions to shorten commissioning time and lower total cost of ownership.
