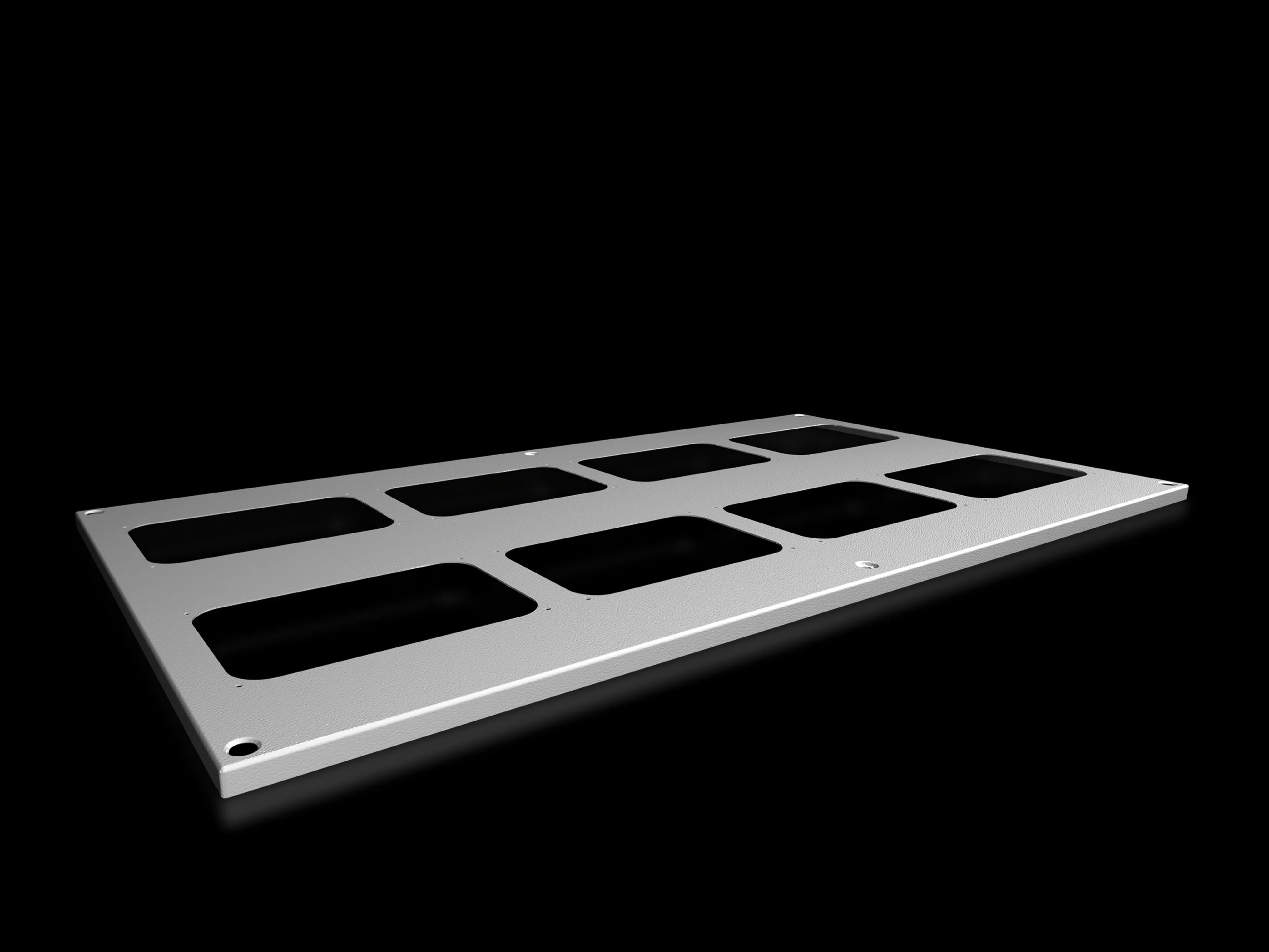

Rittal SV 9681.516 VX Roof Plate – 1,100x600 mm
Part Number: 9681516
Manufacturer
Rittal
Part number
9681516
Alt Part Number
SV 9681.516
Quick Summary
Rittal SV 9681.516 VX Roof Plate is a roof substitute for enclosures, enabling cable entry gland mounting. Upgrading cabinets often exposes gland alignment gaps and weather sealing challenges, leading to downtime and rework. This part carries ETIM EC000744 and ECLASS 27182405 classifications, and it uses 1.5 mm sheet steel with a textured paint finish in RAL 7035 to deliver durable enclosure aesthetics. By replacing a nonstandard roof with a ready plate, you gain faster retrofits, simplified gland layouts, and sustained enclosure protection. Designed for 1,100 mm width and 600 mm depth footprints, it supports reliable installation in standard enclosures and reduces installation variance while supporting long-term maintenance.
Product Information
Extended Description
9681516 Rittal: VX Roof plate, Wdepth 1100x600 mm, for cable entry glands
Article number
SV 9681.516
Product description
For enclosures without roof plate and in exchange for the standard roof.
Material
Sheet steel, 1.5 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Assembly parts
Number of required cable entry glands
8
To fit
Width: = 1,100 mm | Depth: = 600 mm
Packs of
1 pc(s).
Weight/pack
6.7 kg
PCF per pack (cradle-to-gate)
25.5 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177926578
ETIM 9
EC000744
ECLASS 8.0
27182405
Product description
VX Roof plate, Wdepth 1100x600 mm, for cable entry glands
Feature: Robust construction with 1.5 mm sheet steel and textured paint finish in RAL 7035. Business Impact: Delivers durable protection against corrosion and wear in tough industrial environments, reducing maintenance costs over time. Application: Ideal for high-use enclosures in manufacturing floors where repeated access to cable glands is common. Feature: Precisely matched dimensions for 1,100 mm width and 600 mm depth. Business Impact: Ensures a clean retrofit with predictable gland spacing and minimal gaps, reducing leak risk and inspection time. Application: Retrofit projects or new builds using standard Rittal footprints. Feature: Includes assembly parts and eight cable entry glands. Business Impact: Speeds up installation, lowers accessory sourcing time, and supports compliant gland arrangement. Application: Quick upgrades in control panels and switchgear cabinets. Feature: Pack weight of 6.7 kg per unit and 1-pack packaging. Business Impact: Easier handling and transport, minimizing on-site logistics costs. Application: Field installs and maintenance workflows. Feature: PCF data 25.5 kg CO2 eq per pack (Cat B). Business Impact: Enables more accurate environmental impact comparisons for procurement. Application: Sustainability reporting and supply chain evaluation. Feature: Compatibility with standard enclosure roofs and replacement scenarios. Business Impact: Reduces downtime during retrofits and preserves enclosure integrity. Application: Upgrading or exchanging roofs in existing installations.
Get a Quick Quote for a Rittal 9681516
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9681516?
Enquire Now
FAQs
Follow the provided installation instructions (DE_EN_FR) for SV 9681.516. The kit includes assembly parts and is sized to the 1,100 mm width and 600 mm depth. Align the plate with the enclosure opening, secure with the included hardware, and verify gland positions align with the eight gland locations to maintain seal integrity.
The plate is designed for a 1,100 mm wide and 600 mm deep footprint and requires eight cable entry glands. Each pack weighs 6.7 kg and includes assembly parts to support a straightforward retrofit with minimal field adjustments.
Yes. The VX Roof Plate is intended to replace a missing roof or to exchange the standard roof for enclosure variants with the 1,100x600 mm footprint, ensuring consistent gland spacing and enclosure integrity after installation.
SV 9681.516 references ETIM 9 EC000744 and ECLASS 8.0 27182405 classifications to ensure procurement and data consistency. The data does not list explicit CE or IP ratings in this specification, so verify your project requirements during sourcing.
The PCF per pack is 25.5 kg CO2 eq (Cat B) cradle-to-gate. This supports sustainability assessments and supplier scorecards when comparing enclosure retrofit options and lifecycle impacts.
