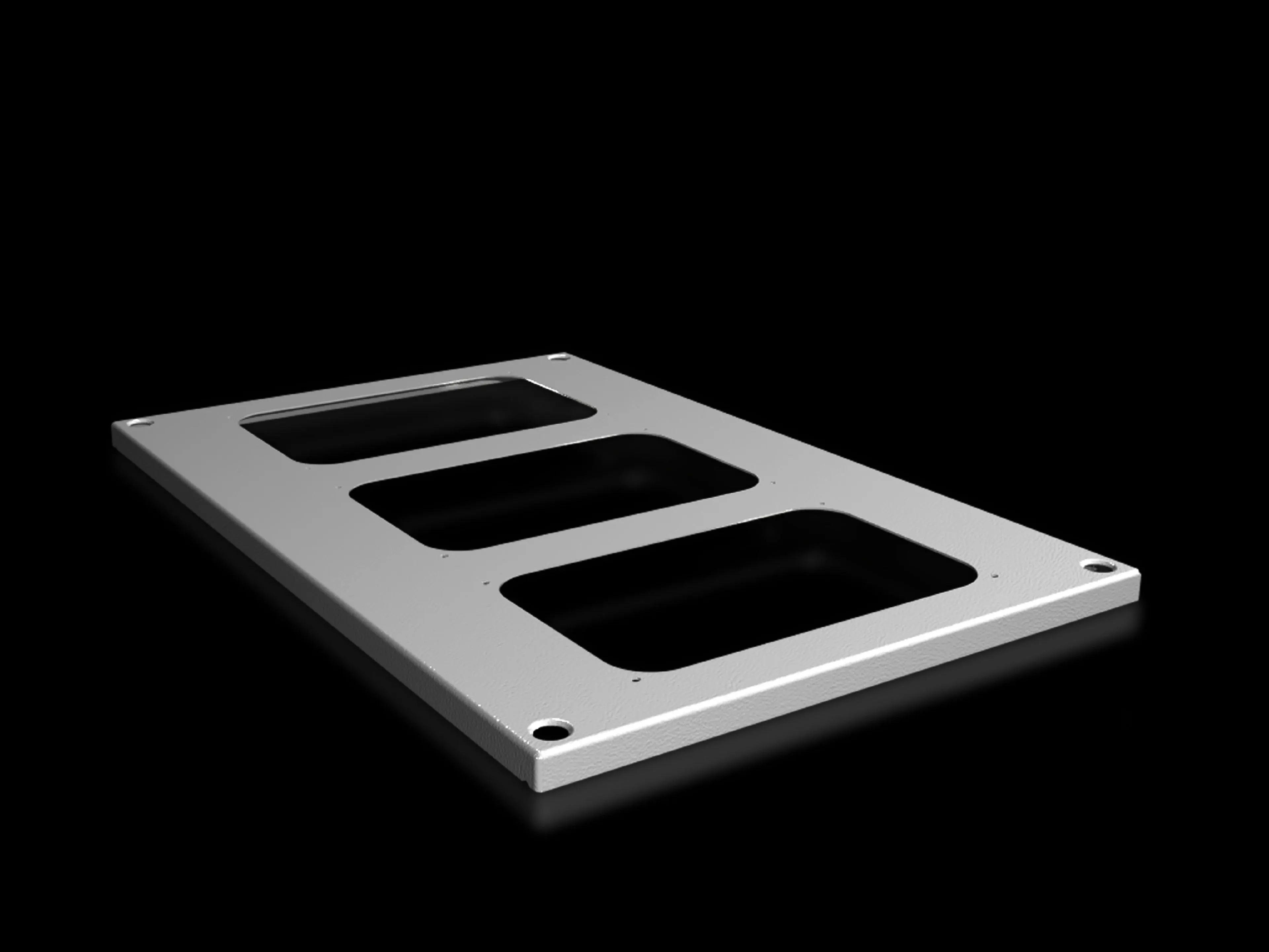

Rittal 9681546 VX Roof Plate - 400x600 mm, ETIM EC000744
Part Number: 9681546
Manufacturer
Rittal
Part number
9681546
Alt Part Number
SV 9681.546
Quick Summary
Rittal VX Roof Plate is a roof-plate accessory for 400x600 mm enclosures that enables secure cable entry gland integration. For users facing retrofit challenges where a roof plate is missing or needs replacement, this part provides a straightforward solution to restore sealing and flexibility. While ETIM EC000744 and ECLASS 27182405 help with interoperability, explicit CE or IP ratings are not listed in this data set. By standardizing top-plate compatibility with assembly parts, you gain faster procurement and consistent installation, reducing project lead times and supporting scalable enclosure management across industrial automation environments. This directly translates to improved reliability, easier maintenance, and a lower total cost of ownership for enclosure projects.
Product Information
Extended Description
9681546 Rittal: VX Roof plate, Wdepth 400x600 mm, for cable entry glands
Article number
SV 9681.546
Product description
For enclosures without roof plate and in exchange for the standard roof.
Material
Sheet steel, 1.5 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Assembly parts
Number of required cable entry glands
3
To fit
Width: = 400 mm | Depth: = 600 mm
Packs of
1 pc(s).
Weight/pack
1.52 kg
PCF/PU (cradle-to-gate)
5.8 kg CO2 eq (Cat B)
Note on the PCF class
Category B: PCF value (cradle-to-gate) approximated based on product weight and self-declared
Customs tariff number
73269098
EAN
4028177926615
ETIM 7.0
EC000744
ECLASS 8.0
27182405
Product description
VX Roof plate, Wdepth 400x600 mm, for cable entry glands
Material and finish are tuned for durability in harsh environments: sheet steel at 1.5 mm with a textured paint surface in RAL 7035 provides robust protection against corrosion and wear, extending enclosure life and reducing maintenance cycles. This translates to fewer replacement parts and lower lifecycle costs in manufacturing and automation sites. The design precisely fits enclosures with a width of 400 mm and depth of 600 mm, ensuring a seamless retrofit without additional modifications, which minimizes installation time and reduces commissioning risk. Supplied with assembly parts and requiring three cable entry glands, the VX Roof Plate streamlines procurement and on-site assembly, cutting downtime and enabling faster scalability for expanding control systems. Pack details (1 pc) support predictable logistics and inventory planning, while the product’s cradle-to-gate PCF of 5.8 kg CO2 eq (Cat B) supports sustainability reporting and responsible procurement. The inclusion of classification references ETIM EC000744 and ECLASS 27182405 enhances cross-system compatibility and supplier synchronization, easing integration into engineering bill of materials. Practical installation tips and compatibility notes help address common objections about retrofits, such as gland alignment and top-plate fastening, ensuring reliable sealing and long-term performance.
Get a Quick Quote for a Rittal 9681546
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9681546?
Enquire Now
FAQs
To install the VX Roof Plate, ensure the enclosure width is 400 mm and depth is 600 mm. The package includes assembly parts and the kit requires three cable entry glands. Align the plate with the enclosure opening, secure using the provided hardware, and attach the glands to the pre-designated entries. This process minimizes seal gaps and maintains enclosure integrity during retrofits.
Verify material as sheet steel 1.5 mm, surface finish as textured paint, and colour as RAL 7035. Confirm the product fits 400x600 mm enclosures and that you need three cable entry glands. The unit ships as a single pack and weighs 1.52 kg per pack, with assembly parts included for turnkey installation.
Yes. The VX Roof Plate is designed for enclosures without a roof plate or when replacing an existing roof. It provides a compatible top surface that accommodates cable entry glands, restoring sealing and enabling orderly cable management on standard 400x600 mm frames.
The product references ETIM 7.0 EC000744 and ECLASS 8.0 27182405, which support interoperability and procurement classification. Explicit CE, IP, or SIL certifications are not listed in the provided data, so refer to your internal compliance requirements or contact Rittal for current certification coverage.
The roof plate enables faster retrofit and installation, reducing downtime and labor costs during enclosure upgrades. Supplied with assembly parts and designed for a 400x600 mm footprint, it simplifies sourcing and reduces misfits. With a cradle-to-gate PCF of 5.8 kg CO2 eq (Cat B), it also supports sustainability reporting and responsible procurement in automation projects.
