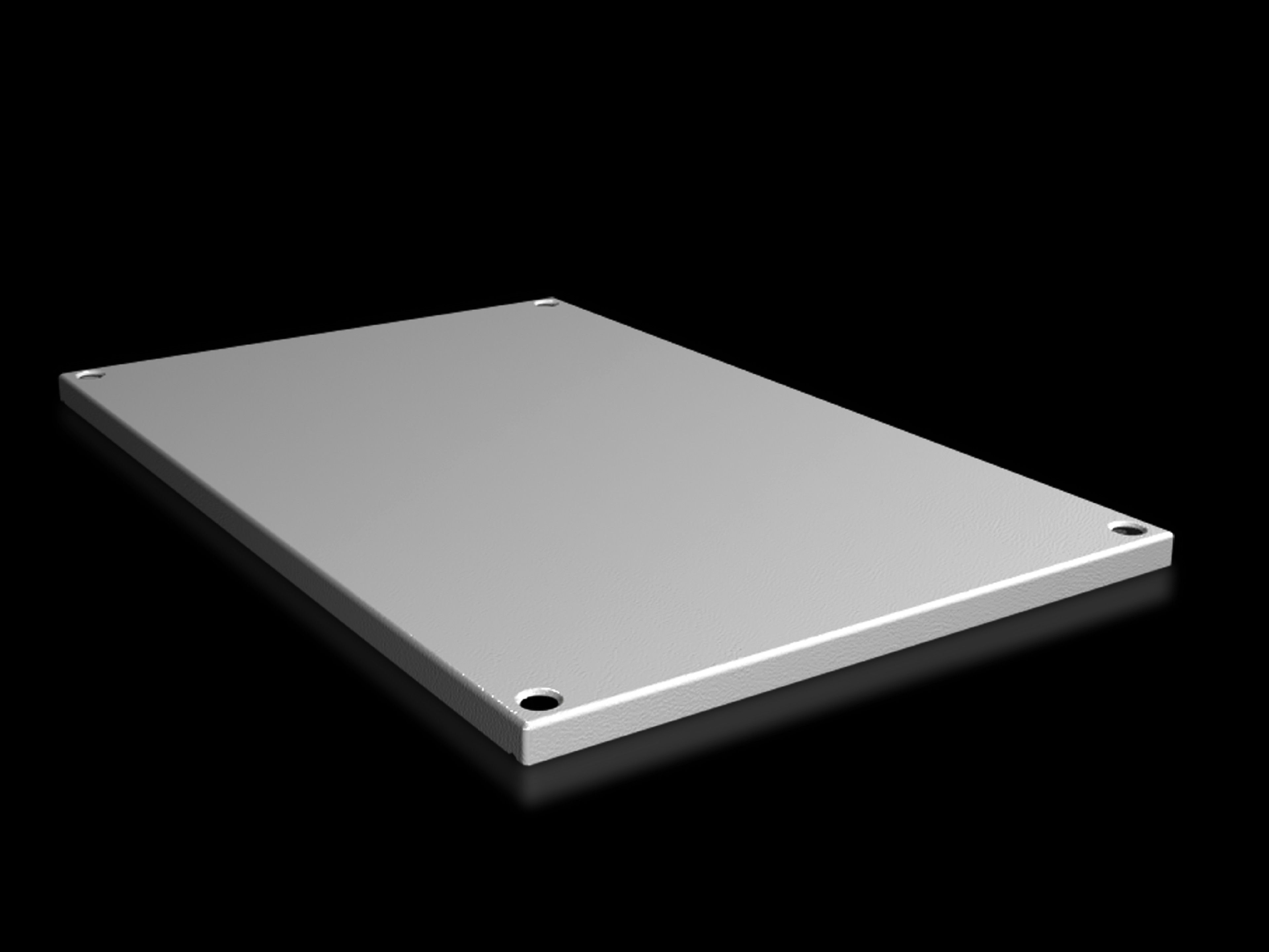

Rittal SV 9681.646 Roof Plate for VX - IP55, 400x600
Part Number: 9681646
Manufacturer
Rittal
Part number
9681646
Alt Part Number
SV 9681.646
Quick Summary
Rittal SV 9681.646 Roof Plate is a replacement roof for VX enclosures, providing IP55 protection in a 400x600 mm footprint. This addresses common retrofit challenges where mismatched roofs cause leaks, longer assembly times, and inconsistent enclosure performance. The solution aligns with industry standards like ETIM EC000744 and ECLASS 27182405, while delivering solid IP protection and a durable textured finish in RAL 7035. For procurement and maintenance teams, the roof plate integrates smoothly with existing VX systems and comes with assembly parts to simplify installation. By choosing this roof plate, integrators and service teams can reduce downtime, standardize enclosures, and maintain a consistent aesthetic across the plant.
Product Information
Extended Description
9681646 Rittal: SV Roof plate for VX, width x depth 400x600 mm, IP 55
Article number
SV 9681.646
Product description
For enclosures without roof plate and in exchange for the standard roof.
Material
Sheet steel, 1.5 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Assembly parts
To fit
Width:Â = 400 mm | Depth:Â = 600 mm
Packs of
1 pc(s).
Weight/pack
3.68 kg
Customs tariff number
73269098
EAN
4028177926820
ETIM 9
EC000744
ECLASS 8.0
27182405
Product description
SV Roof plate for VX, width x depth 400x600 mm, IP 55
Feature: Material and finish use of 1.5 mm sheet steel with textured paint; Business Impact: Provides durable protection against corrosion and wear in demanding environments, extending enclosure life and lowering maintenance costs; Application: Ideal for VX roof replacement in harsh industrial settings. Feature: IP55 protection rating; Business Impact: Reduces ingress of dust and water, improving reliability of mounted components and safeguarding sensitive electronics; Application: Suitable for production floors and outdoor installations where moisture exposure is a concern. Feature: Size compatibility 400x600 mm; Business Impact: Ensures plug-and-play retrofit without modifying existing VX enclosures, cutting installation time by eliminating custom roof fabrication; Application: Fast upgrade path for upgrading or standardizing enclosures. Feature: Color and finish – RAL 7035 textured surface; Business Impact: Provides a uniform appearance across fleets, aiding in plant branding and maintenance planning; Application: Consistent aesthetic for multiple VX units. Feature: Weight per pack 3.68 kg and assembly parts included; Business Impact: Easier handling and faster on-site installation with everything needed in the box, reducing downtime; Application: Streamlined procurement and retrofit projects. Feature: Customization and standards alignment – ETIM EC000744 and ECLASS 27182405; Business Impact: Improves data interoperability for procurement systems and catalog integration, simplifying ordering and asset management; Application: Supports European supply chains and ERP integration for enclosure projects.
Get a Quick Quote for a Rittal 9681646
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9681646?
Enquire Now
FAQs
Yes. The SV 9681.646 Roof Plate is specifically designed to fit VX enclosures with a width of 400 mm and depth of 600 mm. It provides a complete roof replacement option, ensuring a secure and weather-resistant seal while preserving the enclosure's dimensions and mounting interfaces.
Key specifications include: material of sheet steel 1.5 mm, textured paint surface, color RAL 7035, IP55 protection, weight per pack 3.68 kg, and the product is supplied with assembly parts. It is described as the roof plate for VX with a 400x600 mm footprint, intended as a replacement or exchange for the standard roof.
Yes. The SV 9681.646 is designed for use where the enclosure requires a roof plate in place of the standard roof, facilitating straightforward retrofit or replacement without additional enclosure modifications. The included assembly parts support quick, tool-efficient installation.
The roof plate aligns with industry classifications such as ETIM 9 EC000744 and ECLASS 8.0 27182405, supporting data interoperability and procurement workflows. It also achieves IP55 protection, addressing common enclosure requirements for dust and water ingress resistance in industrial settings.
Ensure VX enclosure compatibility with a 400x600 mm roof, use the included assembly parts for mounting, and verify surface finish and color match (RAL 7035) for a consistent appearance. Follow the provided installation documentation to confirm sealing and fastener torque specifications, minimizing potential leaks and downtime during retrofit.
