Rittal SV 9681.648 Roof Plate - IP55 Compliance
Part Number: 9681648
Manufacturer
Rittal
Part number
9681648
Alt Part Number
SV 9681.648
Quick Summary
Rittal SV 9681.648 Roof Plate is a replacement roof for VX enclosures, protecting components in harsh environments. When an enclosure lacks a roof or needs a non-standard roof replacement, downtime and weather ingress can threaten reliability. Notable standards include IP55 protection, ETIM EC000744, and ECLASS 27182405, which support procurement and system integration. The quick-install design, textured finish in RAL 7035, and included assembly parts reduce installation time and maintenance overhead. For OEMs and service teams, this roof plate streamlines sourcing, ensures consistent IP protection, and lowers total cost of ownership by minimizing field adjustments and call-outs.
Product Information
Extended Description

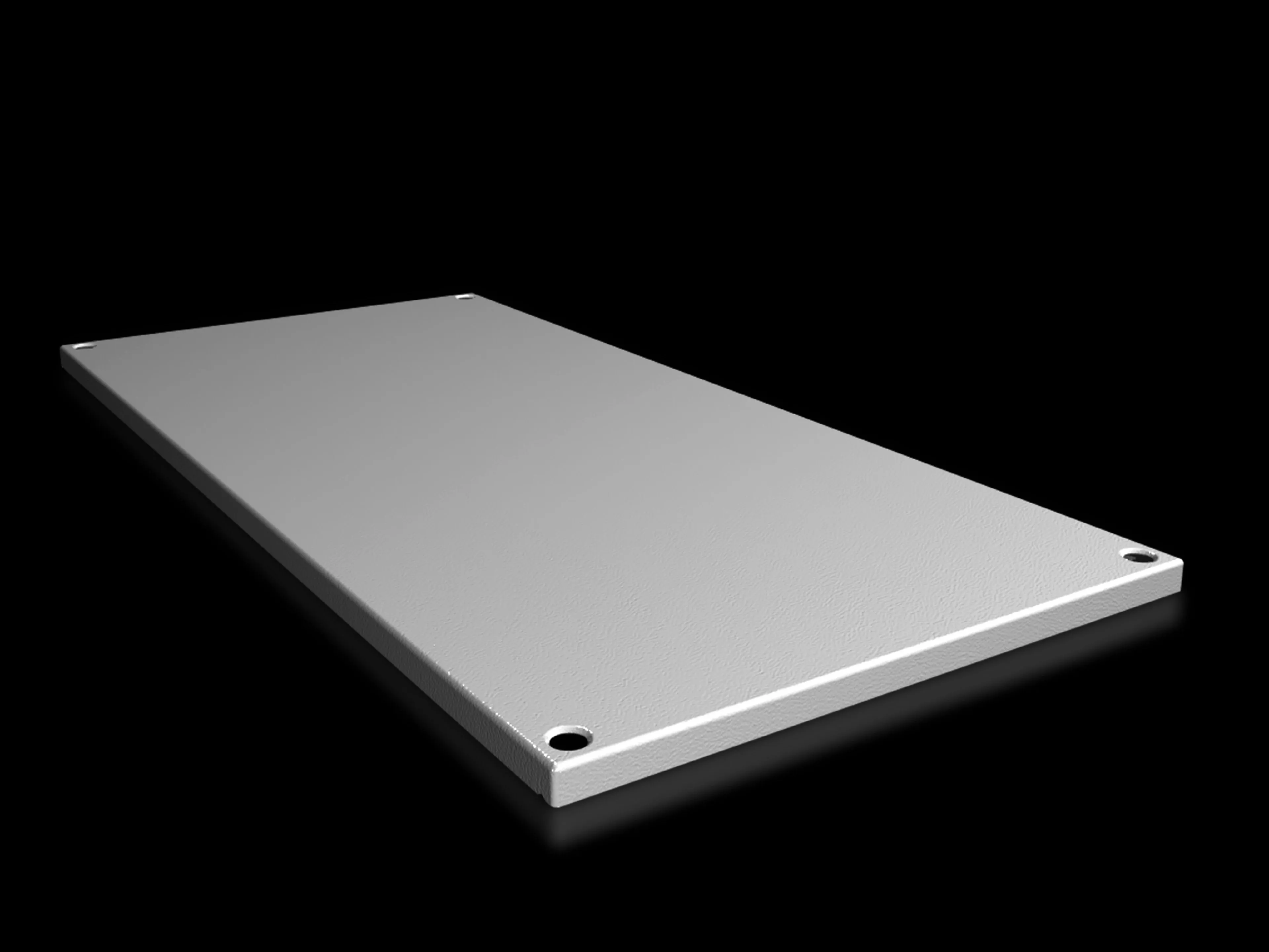

9681648 Rittal: SV Roof plate for VX, width x depth 400x800 mm, IP 55
Article number
SV 9681.648
Product description
For enclosures without roof plate and in exchange for the standard roof.
Material
Sheet steel, 1.5 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Assembly parts
To fit
Width: = 400 mm | Depth: = 800 mm
Packs of
1 pc(s).
Weight/pack
4.9 kg
Customs tariff number
73269098
EAN
4028177926776
ETIM 9
EC000744
ECLASS 8.0
27182405
Product description
SV Roof plate for VX, width x depth 400x800 mm, IP 55
Feature → Business Impact → Application: Fit for VX enclosures with a 400x800 mm footprint and IP55 protection, the SV 9681.648 ensures enclosure integrity in challenging environments, reducing weather-related downtime and component exposure. This translates to higher equipment uptime and lower maintenance costs during field service. Application: ideal for retrofit projects where a roof plate is needed without altering the enclosure footprint, enabling rapid deployments in warehouses, factories, or outdoor installations. Feature → Compatibility → Installation: 1.5 mm sheet steel with a textured paint finish in RAL 7035 provides durable protection against corrosion and wear, while the surface finish delivers a professional, maintenance-friendly appearance. Application: simplifies stock management and allows use across multiple VX configurations with confidence in consistent seal and fit. Feature → Included hardware → Fast setup: assembly parts are supplied, reducing mounting time and the need for separate components. Application: minimizes downtime during upgrade cycles and supports lean maintenance practices. Feature → Compliance → Procurement: ETIM EC000744 and ECLASS 27182405 categorizations improve cataloging and supplier integration. Application: accelerates sourcing and cross-system compatibility in automated plants. Feature → Pack and weight → Logistics: 1 pack per order, weight 4.9 kg, with a clean tariff designation (73269098) and GTIN 4028177926776. Application: simplifies ordering, shipping planning, and customs handling for global projects.
Get a Quick Quote for a Rittal 9681648
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9681648?
Enquire Now
FAQs
The roof plate is designed for VX enclosures with a 400x800 mm footprint and ships with assembly parts. Begin by aligning the plate to the enclosure top, secure using the included fasteners, and verify a complete seal against dust and moisture. Follow the DE/EN/FR instructions supplied with the product for best results.
SV 9681.648 fits VX enclosures sized 400x800 mm for width and depth. It serves as a roof replacement when a standard roof is unavailable or when a roof needs to be exchanged, ensuring consistent IP55 protection across compatible VX models.
The roof plate aligns with ETIM EC000744 and ECLASS 27182405 classifications, supporting cataloging and system integration. The product also carries an IP55 protection rating and uses 1.5 mm sheet steel with a textured RAL 7035 finish, aiding specification and procurement conversations.
IP55 protection ensures robust dust and water ingress resistance, reducing the risk of enclosure contamination and moisture-related faults. This translates to improved uptime, fewer field service interventions, and better long-term reliability for VX enclosures deployed in harsh or industrial environments.
Each order is a 1-pack, weighing 4.9 kg, with supply including assembly parts. The item has GTIN 4028177926776 and customs tariff 73269098. This simplifies procurement, shipping planning, and customs handling for global projects.
