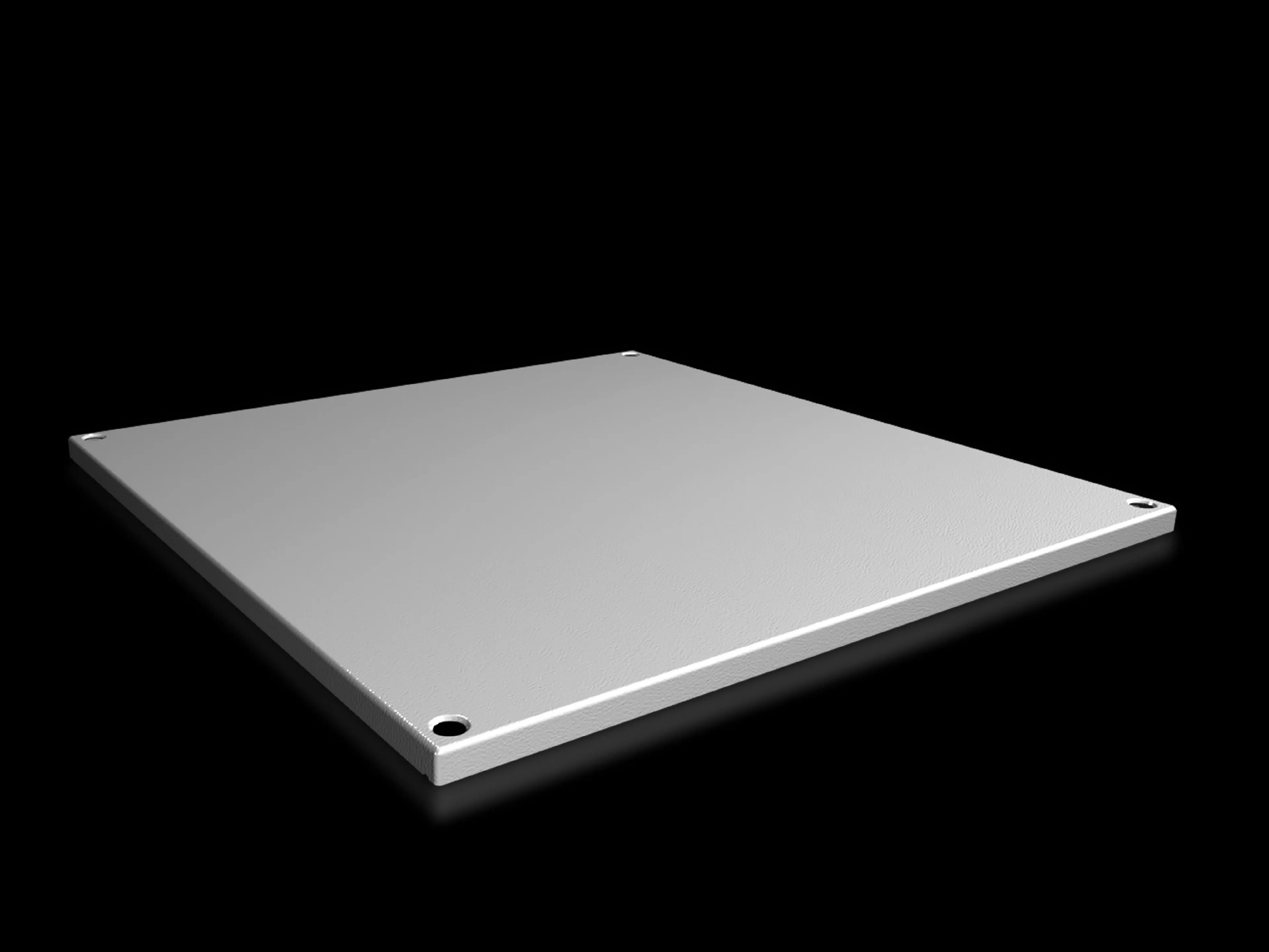

Rittal 9681.666 Roof Plate for VX Enclosures - IP55
Part Number: 9681666
Manufacturer
Rittal
Part number
9681666
Alt Part Number
SV 9681.666
Quick Summary
Rittal SV Roof Plate for VX enclosures replaces the roof for 600x600 cabinets in industrial installations. This solution addresses downtime and compatibility gaps when upgrading enclosures across product families by providing a straightforward exchange roof. The roof plate achieves IP55 protection and aligns with industry standards such as ETIM EC000744 and ECLASS 27182405, aiding procurement data and compliance. With 1.5 mm sheet steel, textured paint in RAL 7035, and included assembly parts, installation is fast and reliable. This accessory supports flexible configurations, reduces spare parts inventory, and speeds project delivery for electrical cabinets and control panels. For engineers, this means quicker changeouts, better traceability in BOMs, and lower total cost of ownership across site upgrades.
Product Information
Extended Description
9681666 Rittal: SV Roof plate for VX, width x depth 600x600 mm, IP 55
Article number
SV 9681.666
Product description
For enclosures without roof plate and in exchange for the standard roof.
Material
Sheet steel, 1.5 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Assembly parts
To fit
Width: = 600 mm | Depth: = 600 mm
Packs of
1 pc(s).
Weight/pack
5.56 kg
Customs tariff number
73269098
EAN
4028177926813
ETIM 9
EC000744
ECLASS 8.0
27182405
Product description
SV Roof plate for VX, width x depth 600x600 mm, IP 55
Feature: VX enclosure compatibility and 600x600 footprint. Business impact: simplifies modular configurations and reduces the need for multiple roof variants, cutting procurement complexity. Application: control cabinets and small to mid-size electrical enclosures in industrial plants. Feature: IP55 protection. Business impact: safeguards against dust and water ingress in semi-indoor and harsh environments, lowering maintenance and failure risk. Application: outdoor or workshop floor installations with exposure to particulates. Feature: durable material and finish. Business impact: 1.5 mm sheet steel with textured RAL 7035 offers long service life and consistent appearance, lowering repaint cycles and lifecycle costs. Application: industrial environments where standardization matters. Feature: included assembly parts. Business impact: accelerates on-site installation, reduces parts mismatch, and improves BOM accuracy. Application: retrofit projects and new builds with tight schedules. Feature: standards alignment (ETIM EC000744, ECLASS 27182405). Business impact: smoother procurement data handling, easier ERP and CMS integration. Application: MRO planning and supplier data synchronization. Feature: packaging and weight. Business impact: packs of 1 piece with 5.56 kg weight streamline logistics and reduce shipping complexity. Application: site delivery and staggered installations across multiple enclosures.
Get a Quick Quote for a Rittal 9681666
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9681666?
Enquire Now
FAQs
Yes. The SV 9681.666 roof plate is designed for VX enclosures with a 600x600 mm footprint and is supplied with assembly parts for a straightforward swap. When replacing a standard roof, confirm the enclosure matches 600x600 mm and follow the included instructions to secure the plate without modifying internal components. This minimizes field adjustments and preserves IP performance.
The roof plate is made from sheet steel, 1.5 mm thick, with a textured paint finish in RAL 7035. It carries an IP55 ingress protection rating and has the article number SV 9681.666. Each pack weighs 5.56 kg and includes assembly parts. It fits enclosures with a 600x600 mm footprint and carries the EAN 4028177926813, ETIM EC000744, and ECLASS 27182405 classifications.
The product data specifies an IP55 protection rating and industry classifications ETIM EC000744 and ECLASS 27182405. There is no explicit mention of CE or SIL certifications in the provided data. For procurement and installation planning, rely on the IP rating and standardized classifications to ensure compatibility with your quality and data management requirements.
Installing the SV roof plate enables quick roof substitutions, reducing downtime during reconfigurations and retrofits. It standardizes data across BOMs and ERP systems, improving procurement accuracy. The kit’s included assembly parts shorten on-site installation time, lowering labor costs and speeding project delivery for VX enclosure upgrades and expansions.
The product ships in packs of 1 piece, with each pack weighing 5.56 kg. The package includes the roof plate itself plus the necessary assembly parts for installation, designed to streamline on-site mounting on VX enclosures that are 600x600 mm in footprint.
