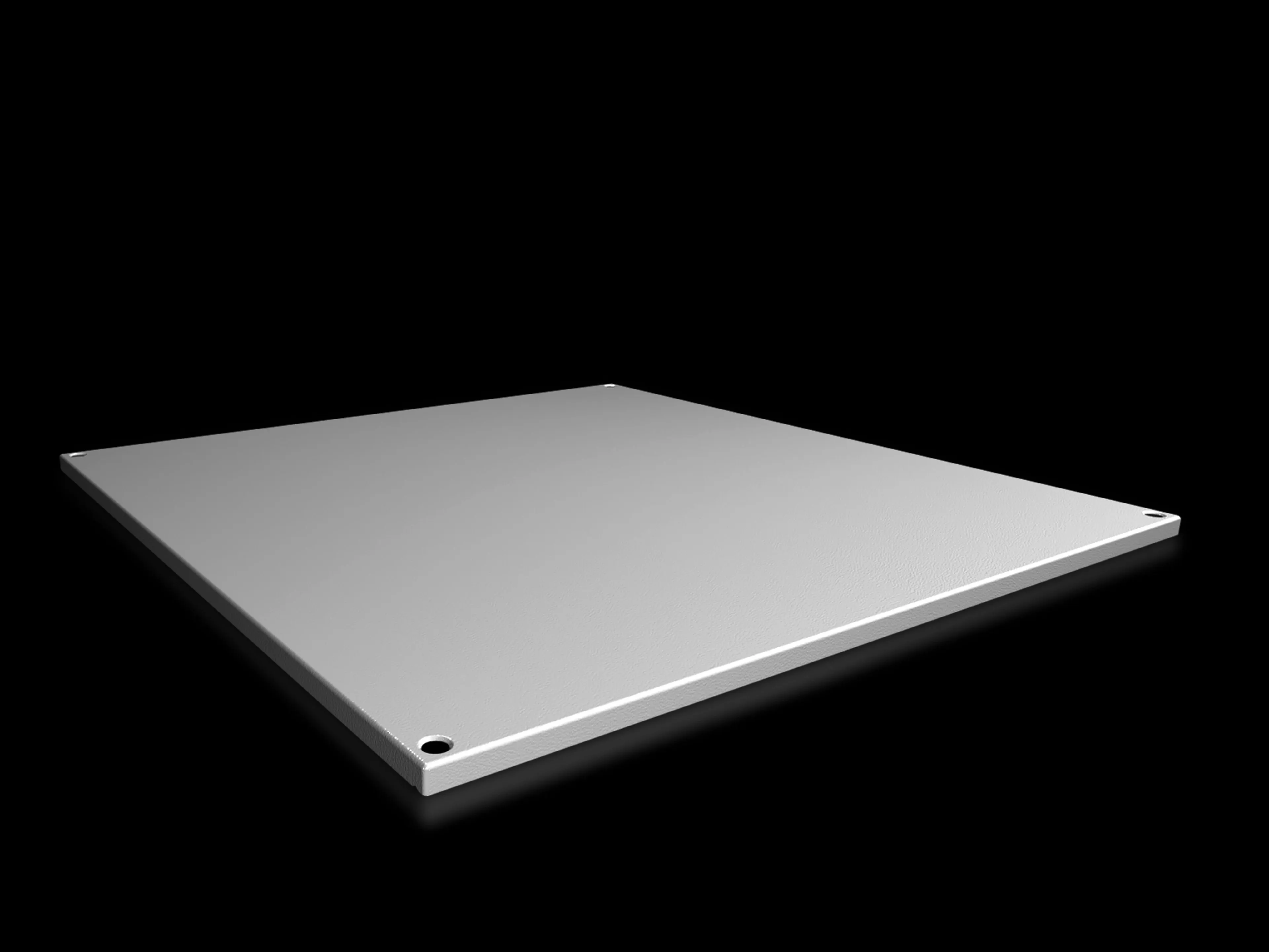

Rittal SV 9681.688 Roof Plate for VX Enclosures - IP 55
Part Number: 9681688
Manufacturer
Rittal
Part number
9681688
Alt Part Number
SV 9681.688
Quick Summary
Rittal SV 9681.688 roof plate is designed to replace a missing roof on VX enclosures, delivering IP 55 protection for 800x800 mm configurations. This upgrade addresses the common challenge of retrofitting enclosures without compromising seal integrity or mounting alignment. The solution leverages a textured paint finish in RAL 7035 and a robust 1.5 mm sheet steel construction to ensure long-term performance. With assembly parts supplied, it supports efficient field installation, reducing downtime and improving retrofit predictability for maintenance workflows and new installations alike.
Product Information
Extended Description
9681688 Rittal: SV Roof plate for VX, width x depth 800x800 mm, IP 55
Article number
SV 9681.688
Product description
For enclosures without roof plate and in exchange for the standard roof.
Material
Sheet steel, 1.5 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Assembly parts
To fit
Width: = 800 mm | Depth: = 800 mm
Packs of
1 pc(s).
Weight/pack
9.38 kg
Customs tariff number
73269098
EAN
4028177926752
ETIM 9
EC000744
ECLASS 8.0
27182405
Product description
SV Roof plate for VX, width x depth 800x800 mm, IP 55
Feature → The SV 9681.688 roof plate provides a precise 800x800 mm footprint, ensuring compatible fit across VX enclosures. Business Impact → This enables rapid retrofit or replacement without enclosure modification, minimizing system downtime and mounting rework. Application → Ideal for field service teams upgrading existing VX racks to restore full enclosure integrity in harsh environments. Feature → Textured paint surface in RAL 7035 delivers durable aesthetics and corrosion resistance. Business Impact → Extends enclosure life and maintains a professional appearance in manufacturing floors and data centers. Application → Suitable for environments requiring visible, long-lasting finishes on steel components. Feature → Includes assembly parts for straightforward installation. Business Impact → Reduces spare-part scrambles and speeds commissioning. Application → Compatible with standard VX roof interfaces and common mounting points. Feature → Material is sheet steel 1.5 mm thick. Business Impact → Balances rigidity with weight, enabling secure sealing without excessive weight load. Application → Supports reliable IP 55 protection while retaining manageable handling characteristics.
Get a Quick Quote for a Rittal 9681688
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9681688?
Enquire Now
FAQs
Installation begins by verifying the VX enclosure has the 800x800 mm footprint and compatible mounting points. The package includes assembly parts for straightforward mounting. Align the roof plate with standard VX roof interfaces, secure with provided hardware, and verify IP 55 sealing after installation. The process is designed to minimize downtime and rework for service technicians.
Key specifications include a sheet steel construction of 1.5 mm, textured paint surface in RAL 7035, and an IP 55 protection rating. It fits enclosures sized 800x800 mm, ships in packs of one, and weighs 9.38 kg per pack. The article number is SV 9681.688, with EAN 4028177926752 and customs tariff 73269098 for cross-border handling.
Yes. The SV 9681.688 roof plate is specifically designed for enclosures without a roof plate and serves as an exchange for the standard roof. It restores IP 55 ingress protection and seals properly against dust and moisture when installed on compatible VX frames, making retrofit clean and predictable.
The product is classified with ETIM 9 EC000744 and ECLASS 8.0 27182405, which support systematic cataloging and interoperability in procurement systems. The IP 55 rating is a primary compliance attribute for enclosure protection, and the EAN/GTIN 4028177926752 aids traceability across warehouse and ERP workflows.
Using the SV 9681.688 reduces retrofit downtime by providing a ready-to-install roof solution with included assembly parts. Its 1.5 mm sheet steel construction and IP 55 rating ensure durable protection in harsh environments, while the textured finish and RAL 7035 color maintain a professional enclosure appearance—supporting reliability and uptime in manufacturing and data-center environments.
