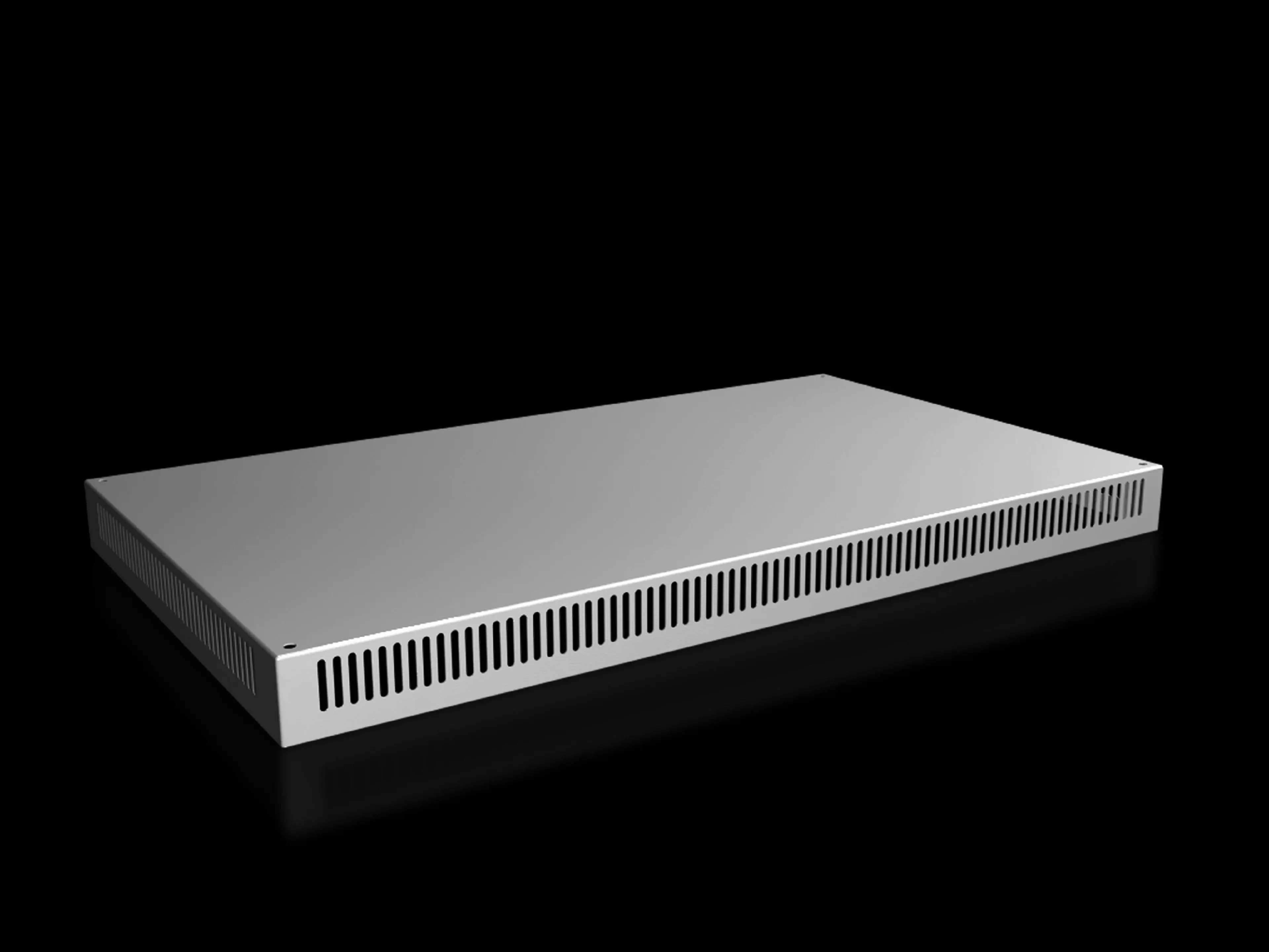

Rittal SV 9681.806 VX Roof plate - IP 2X, Vent hole
Part Number: 9681806
Manufacturer
Rittal
Part number
9681806
Alt Part Number
SV 9681.806
Quick Summary
Rittal SV 9681.806 VX Roof plate provides a compatible roof for enclosures lacking one, enabling quick, modular enclosure upgrades. It minimizes downtime and eliminates costly custom fabrication during retrofit projects. Key ratings include IP 2X protection and robust classification via ETIM EC000744 and ECLASS 27182405 to streamline procurement. By enabling quick retrofits, it lowers total cost of ownership for panel builders and system integrators. This product ships as a complete unit with assembly parts, ensuring straightforward installation and reducing the risk of misalignment during roof replacement. Engineers appreciate predictable lead times and compatibility with standard 1000x600 enclosures. This aligns with procurement strategies emphasizing modularity and lifecycle cost control.
Product Information
Extended Description
9681806 Rittal: VX Roof plate, Wdepth 1000x600 mm, IP 2X, H: 72 mm, with ventilation hole
Article number
SV 9681.806
Product description
For enclosures without roof plate and in exchange for the standard roof.
Material
Sheet steel, 1.5 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Assembly parts
Build-up height
72 mm
To fit
Width: = 1,000 mm | Depth: = 600 mm
Packs of
1 pc(s).
Weight/pack
10.6 kg
Customs tariff number
73269098
EAN
4028177926707
ETIM 9
EC000744
ECLASS 8.0
27182405
Product description
VX Roof plate, Wdepth 1000x600 mm, IP 2X, H: 72 mm, with ventilation hole
Feature: Sheet steel construction at 1.5 mm delivers robust structural integrity. Impact: It resists bending and denting during handling and installation, maintaining enclosure protection. Application: Ideal for retrofits of standard Rittal enclosures where a durable roof surface is essential. Feature: Textured paint finish in RAL 7035 provides a durable, aesthetically consistent surface. Impact: Improves resistance to corrosion, scratches, and weathering while keeping color uniform over time. Application: Keeps enclosures looking professional in harsh industrial environments and aligns with existing color schemes. Feature: Build-up height of 72 mm with a ventilation hole. Impact: Enables ventilation while preserving the enclosure footprint and cooling paths. Application: Suitable for roofs that require controlled air exchange without increasing enclosure height beyond 72 mm. Feature: Compatible with width 1,000 mm and depth 600 mm, matching standard footprints. Impact: Ensures precise mounting and eliminates guesswork during replacement. Application: Plug-and-play retrofit for 1000x600 systems in manufacturing or data-center environments. Feature: Supply includes assembly parts; pack size is 1 pc and weight per pack is 10.6 kg. Impact: Streamlines on-site logistics and reduces extra hardware searches, speeding installation. Application: Ideal for field retrofits where reliable, single-piece replacement roofs are preferred. Feature: Global identifiers ETIM 9 EC000744, ECLASS 8.0 27182405, EAN 4028177926707, and customs tariff 73269098. Impact: Improves cataloging, ERP integration, and customs compliance across international projects. Application: Simplifies procurement and cross-border deployment for large rollouts.
Get a Quick Quote for a Rittal 9681806
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9681806?
Enquire Now
FAQs
The SV 9681.806 is designed to fit standard 1,000 mm x 600 mm enclosures by providing a replacement roof section. It ships with assembly parts and matches a 72 mm build height, ensuring a seamless retrofit within the enclosure footprint. This makes upgrading existing roof configurations straightforward for panel builders.
Begin by removing or aligning with the existing roof interface, then position the VX Roof plate so the mounting points align with the enclosure frame. The package includes assembly parts for secure attachment. Tighten fasteners evenly, verify the ventilation hole alignment, and test for proper fit and sealing to minimize downtime.
Yes. The roof plate carries IP 2X protection, suitable for environments with dust and light moisture exposure. It uses a 1.5 mm sheet steel substrate with a textured paint finish in RAL 7035, offering durable corrosion resistance and consistent appearance over the service life of the enclosure.
The VX Roof plate is designed for Rittal enclosures with a 1000x600 mm footprint and standard mounting interfaces. Retrofitting into non-Rittal or non-standard frames may require interface adapters or custom mounting solutions. Always verify mounting compatibility and load paths before proceeding with a cross-brand retrofit.
The product is classified under ETIM EC000744 and ECLASS 27182405, with a GEAN identifier and tariff code. This standardization enables accurate search, ERP integration, and cross-system compatibility, reducing sourcing errors, accelerating purchasing, and ensuring compliance for international deployments.
